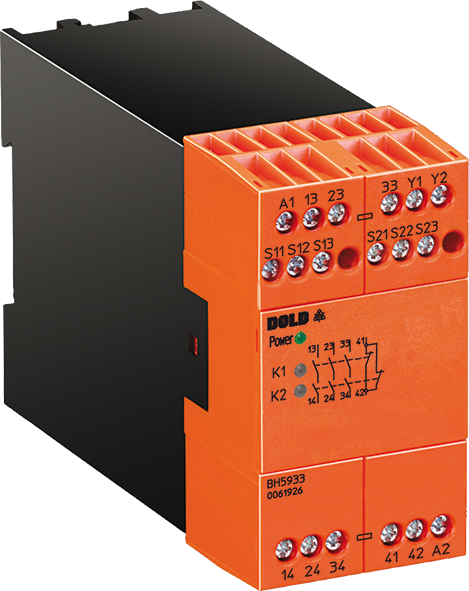

DOLD TWO-HAND SAFETY RELAY BH 5933

The BG 5933 or BH 5933 enables and disables a safety circuit in a safe way.

Applications

It is used to protect people and machines in applications with 2-hand buttons on presses for metal products as well as for other production machinery with dangerous closing movements.

Downloads

Datasheet BH 5933

MODEL RANGE

Order Code	Model	Description	Sales Price
0061925	BH5933.48/61 AC110V	TWO-HAND SAFETY RELAY	€ 485,00
0063120	BH5933.48/61 AC120V 50/60HZ	TWO-HAND SAFETY RELAY	€ 472,00
0061926	BH5933.48/61 AC230V	TWO-HAND SAFETY RELAY	€ 485,00
0050072	BH5933.48/61 AC24V 50/60HZ	TWO-HAND SAFETY RELAY	€ 472,00
0053480	BH5933.48/61 AC42V 50/60HZ	TWO-HAND SAFETY RELAY	€ 472,00
0054229	BH5933.48/61 AC48V 50/60HZ	TWO-HAND SAFETY RELAY	€ 472,00
0050073	BH5933.48/61 DC24V	TWO-HAND SAFETY RELAY	€ 472,00

Technical Information and Features

Advantages

Compact, ready to connect 2-hand safety circuit
Cost reduction by replacing conventional contactor circuits
Feedback circuit Y1 - Y2 to monitor external contactors used for reinforcement of contacts
EC-type examinated circuit according to the requirements of the health and safety authorities

Features

According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (maximum SIL) 3 to EN IEC 62061
- Safety Integrity Level (SIL) 3 to EN 61508
- Safety Level Typ III C according to EN ISO 13851
- the safety regulations for two-hand controls on power-operated presses in metalworking ZH 1-456
Inputs for 2 push buttons with 1 NC and 1 NO contact
Output: 2 NO contacts, 1 NC contact or 3 NO contacts, 1 NC contact
Overvoltage and short circuit protection
Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46228-1/-2/-3
BG 5933: Width 22.5 mm
BH 5933: Width 45 mm
