Home » Braking devices » Braking Devices AC-VersiBrake 36A

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 36A

send
Braking devices enable low-wear and reliable braking of your machines and plants. With electronic DC brakes made by PETER electronic, you can reduce routine maintenance costs and extend the life of your equipment. The integrated standstill detection function of the DC brake "VersiBrake" enables reduction of the deceleration time and thus increases the safety of your equipment.

  • DC Braking with one-way rectification
  • Controlled bei microcontroller
  • Suitable for all asynchronous motors
  • Easy mounting, also for retrofitting into existing plants
  • Wear-resistant and maintenance-free
  • Special voltages up tp 575V (UL: bis 480V) with Option „B“
  • For snap-mounting onto 35mm top-hat-rail
  • Degree of protection IP 20
PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 36A
Model Rated current, A   Rated voltage, V
Rated motor current, A
Max. braking current Braking voltage
Max. braking time
Contact rating
Delay time
Weight / kg
Price
VB 230-36      36A 220 / 240V  17A 5%
10 ... 130VDC
15s 6A/250VAC; 6A/30VDC self-optimizing  1kg
 326 €
VB 400-36      36A 380 / 415V  17A 5%
10 ... 220VDC
15s 6A/250VAC; 6A/30VDC self-optimizing
1kg
 326 €
Technical Information and Features

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 36A

Function:
- Control via motor contactor
- Standstill detection
- Braking current limited to rated device current
- Remanence time optimization
- Braking current infinitely adjustable
- Potential-free output for motor contactor interlocking during braking
- Potential-free output for fault signalling relay
- Potential-free output for braking contactor
- Temperature monitoring of power module

Typical Applications:
- Saws
- Conveyors
- Woodworking machines
- Grinding machines
Other.

Options: (upon request)
- Star-delta starting control (D)
- Wide-voltage-range 200-575V (B) control voltage of 24VAC or 230VAC is necessary (please note in order)

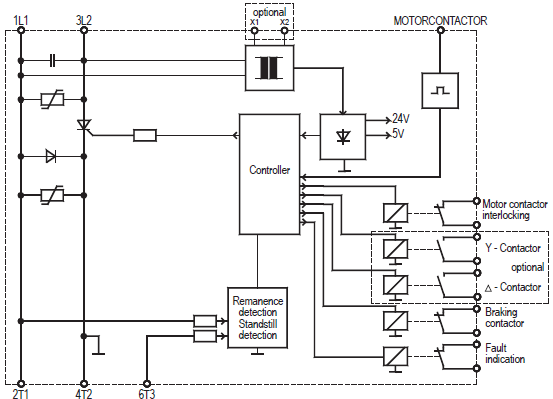

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 36A OPTIONS

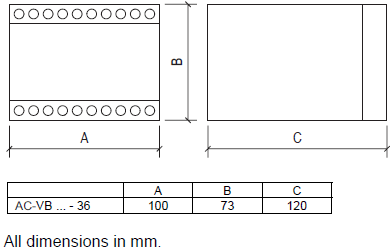

Dimensions:
PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 36A DIMENSIONS

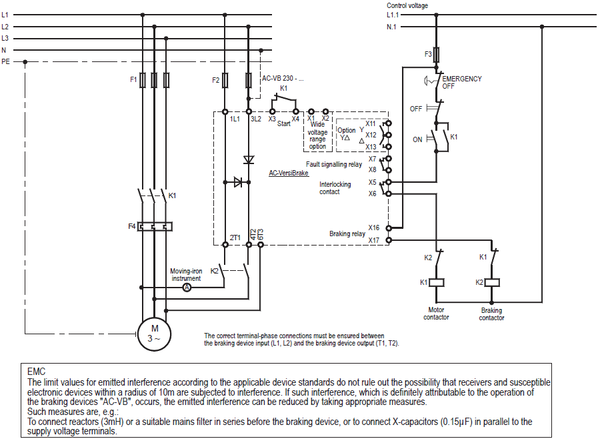

Connection Diagrams:
PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 36A CONNECTION DIAGRAM
