Home » Soft starters » VERSISTART P II (24~229A) series

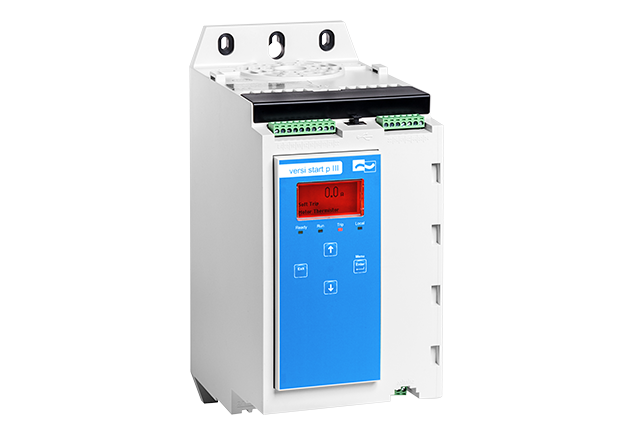

PETER Electronic, VERSISTART P II (24~229A) series soft starters

send
PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

  • Two-phase controlled digital soft starter (11-800kW)
  • Integrated bypass
  • Current and torque reduction during acceleration
  • USB port
  • Comprehensive and customizable motor operating performance
  • Display graphical LCD — real time graphs of motor operating performance
  • Degree of protection IP20 up to 135A
  • Motor PTC connection
PETER ELECTRONIC, VERSISTART P II (24~229A) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
 Motor rating, kW
 Control supply voltage, V    Min. motor load
      Max power dissipation during start
  Max power dissipation in operation
 Utilization category
 Weight / kg
 Price
VS p II 525-24B* C1 / C2      24A 200-525V  11kW
 24VDC
 5A
 4,5W per A
about 35W
 AC53b 4,8kg 496 €
VS p II 525-42B C1 / C2      42A 200-525V  18,5kW 24VDC
 9A 4,5W per A about 35W
 AC53b 4,8kg
 524 €
VS p II 525-52B C1 / C2      52A 200-525V  22kW 24VDC
 11A 4,5W per A about 35W AC53b 4,9kg
 577 €
VS p II 525-69B C1 / C2      69A 200-525V  30kW 24VDC
 15A 4,5W per A about 50W AC53b 4,9kg
 659 €
VS p II 525-105B C1 / C2     105A 200-525V  55kW 24VDC
 21A 4,5W per A about 50W AC53b 5,5kg
 849 €
VS p II 525-135B C1 / C2      135A 200-525V  60kW
 24VDC
 29A
 4,5W per A
about 50W
 AC53b 5,5kg 960 €
VS p II 525-184B C1 / C2      184A 200-525V  75kW
 24VDC
 34A
 4,5W per A
about 120W
 AC53b 12,7kg 1244 €
VS p II 525-229B C1 / C2      229A 200-525V  110kW
 24VDC
 44A
 4,5W per A
about 120W
 AC53b 12,7kg 1491 €

Technical Information and Features

PETER Electronic, VERSISTART P II (24~229A) series soft starters

Function:
- Adjustable initial start current level up to 600% of nominal rating
- Remote control inputs (2x fixed, 2x programmable)
- A relay outputs (3x programmable)
- 24VDC output
- Analog output
- Divers soft start/stop control types
- Units with 600V upon request

Typical Applications:
- Pumps, ventilators
- Compressors
- Mills, crushers, presses
- Conveying systems
- Drives with high-inertia starting

PETER ELECTRONIC, VERSISTART P II (24~229A) SERIES SOFT STARTERS ACCESSORIES.

- Remote Keypad & Cable (29000.2S801)
- DeviceNet Interface (29000.2S802)
- Ethernet IP Interface (29000.2S803)
- ModBus RTU Interface (29000.2S804)
- ModBus TCP Interface (29000.2S805)
- Profibus Interface (29000.2S806)
- Profinet Interface (29000.2S807)
- Remote Keypad Card (29000.2S808)
- Remote Keypad, Card & Cable (29000.2S809)
- SmartCard Pump Application (29000.2S810)
- Finger protection (from 184A up to 580A, 29000.2S811)

PETER ELECTRONIC, VERSISTART P II (24~229A) SERIES SOFT STARTERS ACCESSORIES.

PETER ELECTRONIC, VERSISTART P II (24~229A) SERIES SOFT STARTERS TECHNICAL DATA.

- Mains voltage.
200-525V, 45-66Hz
- Control voltage.
C1: 110VAC; 220VAC -15%/+10% 600mA; C2: 24VDC/24 VAC ±20% 2.8A.
- I²t-value power semiconductors in A²s.
24B C1 / C2: 1150
42B C1 / C2, 52B C1 / C2 : 8000
69B C1 / C2 : 15 000
105B C1 / C2 : 80 000
135B C1 / C2 : 125 000
184B C1 / C2, 229B C1 / C2 : 320 000
- EMC.
Meets EU standard 89/336/EEC; IEC 60947-4-2 class B; IEC 60947-4-2.
- Ambient / storage temperature.
25°C up to +60°C (derating) / -25°C up to +60°C.
- Inputs.
Active 24VDC about 8mA, motor PTC (trip >3,6kOhm, reset <1,6kOhm).
- Relay outputs.
10A at 250VAC resistive, 5A at 250VAC AC15 Lf 0,3.
- Analog outputs.
0 up to 20mA or 4 up to 20mA.
- 24VDC output.
Max 200mA.
- Kinds of start.
Constant current, current ramp, adaptive control.
- Kinds of stop.
Soft stop via voltage drop in an allowed time, free deceleration.
- Adaptable protection functions.
Motor overload, min. current, max. starting time, short-time over-current, current unbalance, mains frequency, phase sequence.
- Certificaton.
CE, RoHS conform, RCM, Lloyds Register, UL / cUL.

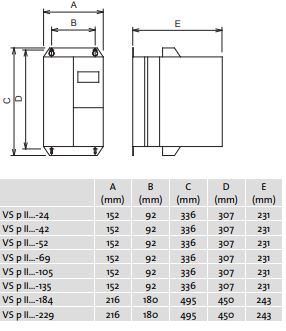

Dimensions:

PETER ELECTRONIC, VERSISTART P II (24~229A) SERIES SOFT STARTERS DIAMETERS.

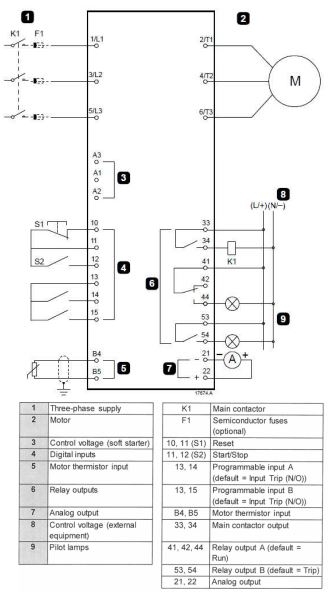

Connection Diagram:
PETER ELECTRONIC, VERSISTART P II (24~229A) SERIES SOFT STARTERS CONNECTION DIAGRAM.
