Fuji Electric FRENIC-Lift (FRN LM2) frequency inverter series for lift and hoisting applications

send
Fuji Electric frequency inverters FRENIC-Lift (FRN LM2) series for lift and hoisting applications

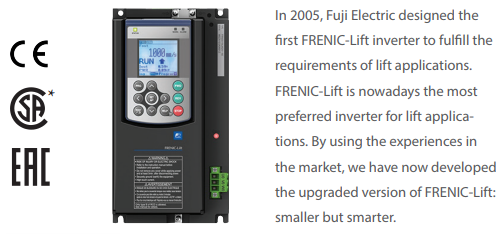

In 2005, Fuji Electric designed the first FRENIC-Lift inverter to fulfill the requirements of lift applications. FRENIC-Lift is nowadays the most preferred inverter for lift applications. By using the experiences in the market, we have now developed the upgraded version of FRENIC-Lift: smaller but smarter.
  • Book type frame up to 15 kW, Dual Mounting
  • Feed through mounting with IP54 heat sink (book type)
  • Removable input and output power terminals (book type)
  • Easier rescue operation with 24 VDC power supply for control board (book type)
  • Contactorless solution compliant to EN 81-1 + A3 and EN 81-20
  • Different energy saving levels according to ISO 25745
  • Built-in EMC filter
  • Built-in advanced fieldbuses dedicated to lift applications (CANopen CiA DSP 402 & 417 and DCP 3 & 4) (*coming soon)
  • Faster speed and current control loop for easier and faster comfort adjustment
  • Removable control terminals
  • Two new motor control modes: Vector control with peripheral PG, sensorless vector control for rescue operation (PMSM) (coming soon)
  • Several certified functions for safety operation
  • New software functions to make easier setup
  • Customizable logic capability (PLC function)

Fuji Electric FRENIC Lift (FRN-LM2A) lift series (1 phase 200 V)
Model Voltage,
V
Capacity,
kW
Current,
A
V/f
mode
Enclosure
IPXX
Output frequency,
Hz
Overload capacity,
% per 1 min
Dimensions
(W x H x D), mm
Weight,
kg
Price
FRN0011LM2A-7E 200 (1ph) 2,2 11 - IP20 1-200 200 140х260х195 - 521,00 €

Fuji Electric FRENIC Lift (FRN-LM2A) lift series (3 phase 400 V)
Model Voltage,
V
Capacity,
kW
Current,
A
V/f
mode
Enclosure
IPXX
Output frequency,
Hz
Overload capacity,
% per 1 min
Dimensions
(W x H x D), mm
Weight,
kg
Price
FRN0006LM2A-4E 380-480 (3ph) 2,2 6.1 - IP20 1-200 200% 140х260х195 - 647,00 €
FRN0010LM2A-4E 380-480 (3ph) 4 10 - IP20 1-200 200% 140х260х195 - 728,00 €
FRN0015LM2A-4E 380-480 (3ph) 5,5 15 - IP20 1-200 200 140х260х195 - 784,00 €
FRN0019LM2A-4E 380-480 (3ph) 7,5 18.5 - IP20 1-200 200 140х260х195 - 827,00 €
FRN0025LM2A-4E 380-480 (3ph) 11 24.5 - IP20 1-200 200 160x360x195 - 1 143,00 €
FRN0032LM2A-4E 380-480 (3ph) 15 32 - IP20 1-200 200 160x360x195 - 1 615,00 €
FRN0039LM2A-4E 380-480 (3ph) 18,5 39 - IP20 1-200 200 250x400x195 - 1 749,00 €
FRN0045LM2A-4E 380-480 (3ph) 22 45 - IP20 1-200 200 250x400x195 - 2 071,00 €
FRN0060LM2A-4E 380-480 (3ph) 30 60 - IP20 1-200 200% 326.2x550x261.3 - 2 827,00 €
FRN0075LM2A-4E 380-480 (3ph) 37 75 - IP20 1-200 200 326.2x550x261.3 - 3 684,00 €
FRN0091LM2A-4E 380-480 (3ph) 45 91 - IP20 1-200 200 361.2x615x276.3 - 4 042,00 €
Technical Information and Features

Book type shape of Fuji Electric vfd FRENIC-Lift (FRN-LM2A) series up to 15 kW (32 A) with new advantages

- Side mounting: Install the inverter in the most convenient way depending on space limitations (e.g. door frames).
- Removable power terminals: Easier and faster installation by pre-wiring thanks to removable power terminals.
- IP 54 heatsink: Stronger IP level allows feed through mounting for heatsink, making cabinet design smaller and cheaper for shaft installation.

Fuji Electric drive FRENIC-Lift (FRN-LM2A) series is designed to fulfill the requirements of lift applications.

Certified functional safety functions according to EN81-1/2 and EN81-20 for an easier installation

- Needless of the two motor contactors between inverter and motor (contactorless)
- Brake monitoring function for UCM
- Travel direction change safety counter for belt/coated ropes lifts

Customizable logic capability

Customize your own functions with the built-in PLC function. Easily program your PLC via loader software. Create up to 200 steps program (macro steps / function blocks).

Fuji Electric inverter FRENIC-Lift (FRN-LM2A) series has a easy rescue operation

Rescue operation available by means of UPS or batteries. Thanks to the new 24 VDC input, rescue can be performed from 48 VDC only. Software functions help as well to optimize UPS or batteries sizing by choosing the most favourable rescue direction.

Connected to the world

CANopen (402 & 417), DCP (3 & 4*) and Modbus RTU are available thanks to the 3 built-in communication ports.

Fuji Electric inverter FRENIC-Lift (FRN-LM2A) series is able to control any motor

With its additional new motor control modes, FRENIC-Lift is able to control any motor in the market. Even able to control a motor with peripheral encoder.

Different energy saving modes

Following the standards and directives for saving energy (ISO 25745), different saving energy modes are available. Put the inverter to sleep mode by activating a digital input. Charging circuits are highly robust and allow high number of power ups per hour.

Fuji Electric drive FRENIC-Lift (FRN-LM2A) series has a built-in EMC filter

Built-in EMC filter compliant to EN12015 and EN12016. Saves space inside the cabinet and makes wiring easier.

Fuji Electric frequency inverter FRENIC-Lift (FRN-LM2A) has new stronger coating

New coating makes PCB stronger against humidity and dust. Robustness for lift shaft environments.
