Fuji Electric, Accessories for pressure transmitters and differential pressure devices for flow measurement

Fuji Electric has and offers a range of accessories for pressure measurement in order to find the best suitable solution to your process.
- Insulation valves
- Expansion siphons
- Manometers
- Flushing ring
- Condensation collectors etc.


The FUJI FCX-AII differential, gauge and absolute pressure transmitters can be direct mounted with different kinds of manifold, adapted for the application and the type of transmitter.Manifolds can be delivered mounted on the transmitters or supplied separately. When supplied mounted, the complete assembly is fully pressure tested, and calibrated in the factory. Different types of manifolds are available : 1 to 5 valves, with bolting in 7/16-20, M10 or M12 in SS 316 or carbon steel.

- Standard : Stainless steel 316 for manifold body and valves
- Carbon steel : for quantities of 50 or more (consult Fuji)
- Upon request : body material in Monel, Duplex,Hastell etc.
- Bolts material : stainless steel 316, vis M10 until 160 bar (static pressire) and 100 bar (gauge pressure), M12 ou 7/16-20UNF until 420 bar (static pressure) and 500 bar (gauge pressure).
- Gasket : PTFE (standard), Grafoil, Kevlar etc.

One-valve manifold
Multiport one valve manifold, with separate vent or calibration facilities. Transmitter connection is 1/2“-14 NPT male and process connection (customer side) is 1/2“ NPT female. It can be direct mounted on FKP transmitter or via oval flange (1/2“-14 NPT) on FCX-AII transmitters. Maximum presure : 414 bar (6000 PSI)

Two-valves manifold
Direct mounted 2 valve manifold delivered with 2 bolts and one PTFE gasket. Both valves have the inlet and drain/vent connection on the mounting face and are suitable for all applications up to 414 bar (6000 PSI). This manifold can be mounted on FCX-AII gauge and absolute pressure transmitter. Process connection is 1/2“-14 NPT female.

Three-valves manifold
Alternative solution for 3 valve manifold with some additional facilities like more space for the customer process connection and 2 additional pluged vent ports (1/4“-18 NPT). The 3 valves are mounted in line on the top of the manifold body. Process connections are 1/2“-14 NPT female at 102 mm centers; maximum pressure 414 bar (6000 PSI).

Other alternative three-valves manifolds can be used on the differential pressure and flow transmitters on FCX-AII series. The 2 isolating valves (HP & LP side) are on the body ends of the manifold and the equalising valve on the top.

Five-valves manifold
This manifold type is used on the d iffer ential and flow transmitters on FCX-AII series. It combines 2 isolating valves (HP & LP side) 2 drain/vent valves and one equali sing valve. Suitable for applications up to 414 bar (6000 PSI). Process connections are 1/2“-14 NPT female at 54 mm or (2“ 1/8) centers. Supplied with 4 bolts and 2 PTFE gaskets.

Other accessories

Oval flanges
Овальный фланец Oval flanges allow to connect pulse lines with 1/2 NPTE thread with Fuji Electric pressure transmitters which have 1/4 NPTI process connection as a standard.

Enclosure systems
Защитный корпус Fuji Electric is able to provide the customer with different types of enclosures. Different sizes of enclosures are available for one or several process instruments.

Hand held communicator (HHC)
Коммуникатор The Fuji Electric hand held communicator (HHC) is a very useful configuration tool for the FCXAII transmitter. As a menu driven device the HHC can be used to remotely display and configure different transmitter parameters.

Using the Hart® communication protocol, the FCX-AII transmitter can also be configured by any Hart® protocol compatible hand held communicator.
Operating parts and descriptions of HCC
- Battery charger terminal: Used to charge battery by using a special battery charger.
- Communication cable terminal: Used to connect communication cable.
- Security key socket: Used to connect security key.
- Display unit: Displays data and set values.
- Printer (option): Prints data and set values.
- ON/OFF switch: Power ON/OFF switch
The operating unit contains 4 kinds of keys; command keys (blue), numeric keys (yellow), ENT key (red) and CL key (green).

Hart Explorer software
USB/Hart модем The FCX-AII V5 pressure transmitter can also be configured using Hart® communication based software “Hart® Explorer” connected to your Laptop or PC. Configuration of the above parameters is possible and the settings can also be saved for future reference. It’s also possible to measure and record process values. The interface between the PC and the transmitter is performed by a mini modem USB/Hart® to guarantee the communication between the PC and the 4 to 20 mA loop of the transmitter.

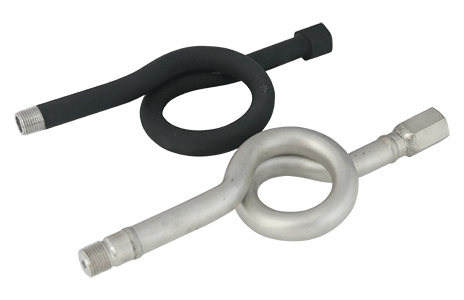

Expansion siphons

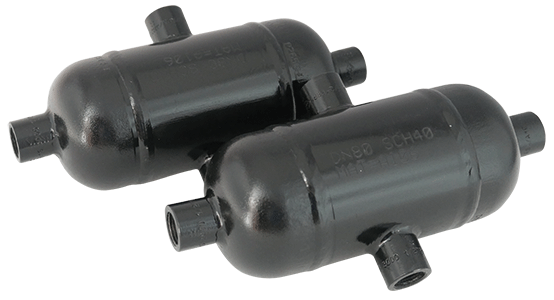

Condensation collectors

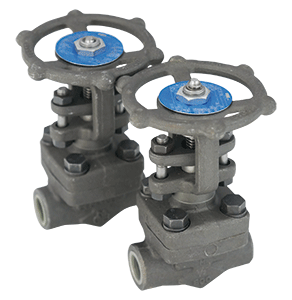

Insulation valves

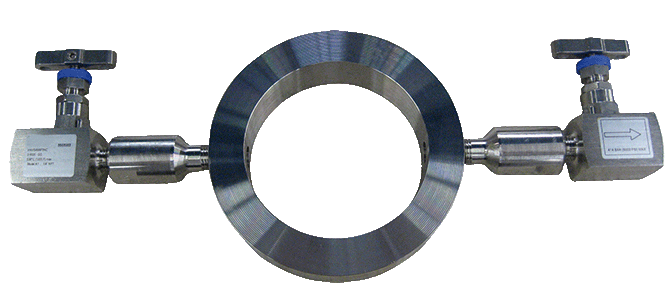

Flushing ring

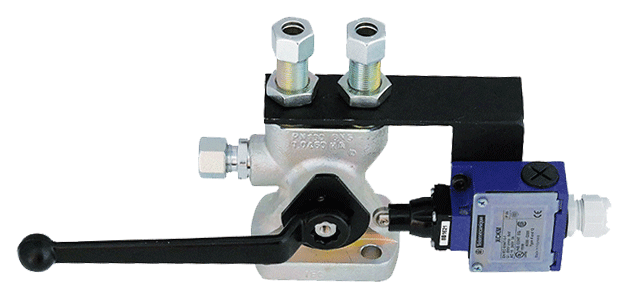

Contact manifold block

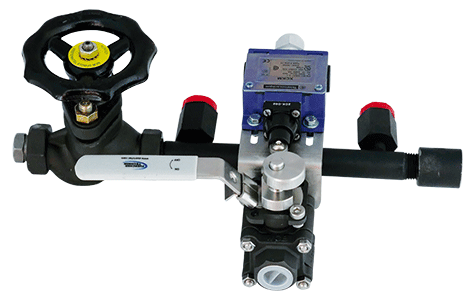

BIM block

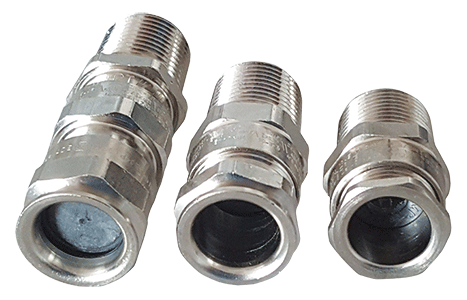

Standard or ADF glands
