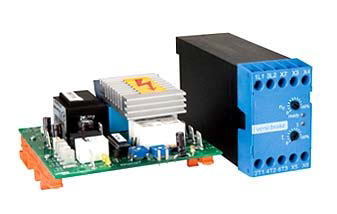

Braking Devices AC-VersiBrake 230/400-6/25/30L (LP)


  • start braking via detection of motor voltage and via motor contactor (double safety)
  • overload protection
  • braking current cutoff after motor standstill
  • braking current control
  • automatic remanence time optimization
  • braking current infinitely adjustable 10-100%
  • potential-free output for motor contactor interlocking during braking; also usable to energize the star contactor during braking
  • standstill threshold adjustable; individual adaptable to different motor types


  • DC braking with one-way rectification
  • suitable for all asynchronous motors and for mono phase motors
  • controlled by microcontroller
  • easy mounting, also for retrofitting into existing plants
  • wear-resistant and maintenance-free
  • integrated braking contactor
  • printed circuit-board version with fault signalling contact
  • for snap-on mounting onto 35mm DIN rail
  • degree of protection: case version IP 20, printed circuit-board version (LP) IP 00
  • meets trade assoc. requirements for category 2 acc. to EN 954-1 acc. to the test principles of woodworking machines GS-HO-01

Typical Applications:

  • sawing machines
  • centrifuges
  • wood working machines
  • textile machines
  • conveying systems



Type designation AC-VB 230-6L AC-VB 230-25L AC-VB 230-30L AC-VB 400-6L AC-VB 400-25L AC-VB 400-30L
Mains voltage Acc. to DIN EN 50160 (IEC 38) 220/240V ±10% 50/60Hz 380/415V ±10% 50/60Hz
Power draw of electronics 3 VA
Recommended for rated motor currents up to 0,3...З А 2...12,5 A 2...15 A 0,3...З А 2...12,5 A 2...15 A
Rated device current 6 A 25 A 30 A 6 A 25 A 30 A
max. Braking frequency at a braking time of 5s 1/8 s 1/60 s 1/90 s 1/8 s 1/60 s 1/90 s
I2t-value of power semiconductors A2s 1250 А2s 1350 А2s 310 А2s 1250 А2s 1350 А2s
Braking voltage 0 ... 110VDC 0 ... 220VDC
max. Braking time 12 s
Contact rating (control relay) 3A/250VAC; 3A/30VDC
Delay time for reduction of residual e.m.f. Self-optimizing in the range between 0,2 … 2s
max. Cross-sectional area for connection 2 x 2,5mm2 per terminal
Ambient / Storage temperature 0 °C...45 °C/-25 °C...75 °C
Weight / kg 0,6
Order number case version (L) 2B000.23006 2B000.23025 2B000.23030 2B000.40006 2B000.40025 2B000.40030
Order number printed circuit-board version (LP) 2B100.23006 2B100.23025 2B100.23030 2B100.40006 2B100.40025 2B100.40030

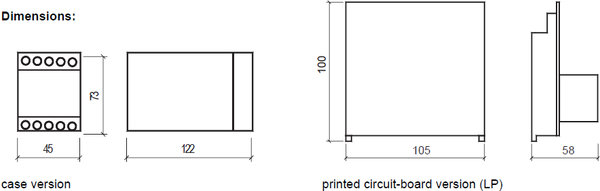

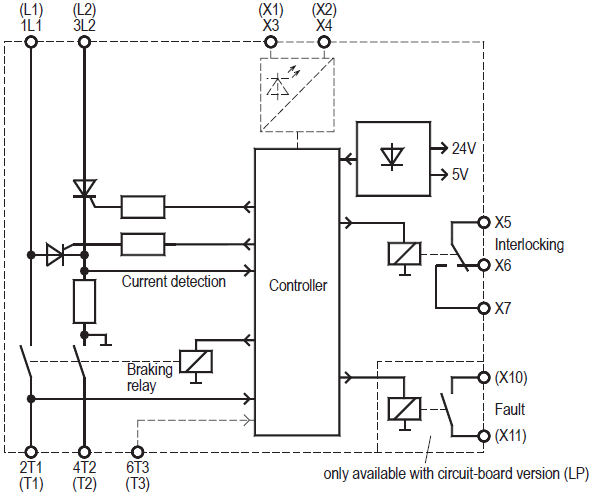

Connection Diagram:

Functional description:

* Connection of X3, X4 will only be needed if double security for the start of braking is required.
** Connection of 6T3 is only necessary with very short standstill times of motor (<3s). If 6T3 is not connected and a motor standstill is detected within 3s, the braking current is switched off after the security time. Therefore a failure is monitored.
