Fuji Electric FRENIC-Mini (FRN C1) compact frequency inverter series for general purpose

, *Discontinued Series
send

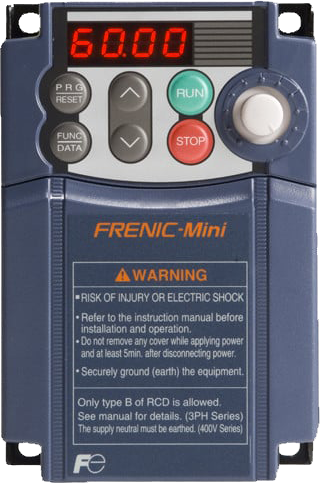

Fuji Electric frequency inverters FRENIC-Mini (FRN C1) compact series for general purpose
FRENIC-Mini is a compact unit that combines simple operation with industry-leading performance. FRENIC-Mini features a full range of functions, compact body, simple operation, wide model variations, and global compatibility. It meets the needs for higher performance in machines and equipment such as conveyors, fans, pumps, centrifugal separators and food processing machines, as well as needs for system integration, energy saving, labor saving and total cost reduction.
  • High starting torque of 150% and more at 5 Hz
  • Internal PID regulator to control flow and pressure in fans and pumps
  • Models with EMC filter built-in type available
  • Three phase models from 0.4 kW to 4.0 kW / 400 V
  • Single phase models avaiable from 0.1 kW to 2.2 kW / 230 V
  • Simplified torque vector control
  • Built-in potentiometer
  • Easy programming
  • Built-in braking chopper

Fuji Electric FRENIC Mini series without an integrated braking resistor and without built-in EMC filter (1 phase / 200 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
FRN0.1C1S-7E 200 (1ph) 0,1 0.8 + IP20 50/60 150 80x120х80 0,6 on request
FRN0.2C1S-7E 200 (1ph) 0,2 1.5 + IP20 50/60 150 80x120х80 0,6 on request
FRN0.4C1S-7E 200 (1ph) 0,4 3 + IP20 50/60 150 80x120х95 0,6 on request
FRN0.75C1S-7E 200 (1ph) 0,75 5 + IP20 50/60 150 80x120х140 0,8 on request
FRN1.5C1S-7E 200 (1ph) 1,5 8 + IP20 50/60 150 110x130х149 1,7 on request
FRN2.2C1S-7E 200 (1ph) 2,2 11 + IP20 25-400 150 140х180х139 2,3 on request

Fuji Electric FRENIC Mini series without an integrated braking resistor and without built-in EMC filter (3 phase / 400 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
FRN0.4C1S-4E 400 (3ph) 0,4 1.5 + IP20 25-400 150 110х130х115 1,1 on request
FRN0.75C1S-4E 400 (3ph) 0,75 2.5 + IP20 25-400 150 110х130х139 1,2 on request
FRN1.5C1S-4E 400 (3ph) 1,5 3.7 + IP20 25-400 150 110х130х139 1,7 on request
FRN2.2C1S-4E 400 (3ph) 2,2 5.5 + IP20 25-400 150 110х130х139 1,7 on request
FRN4.0C1S-4E 400 (3ph) 4 9 + IP20 25-400 150 140х180х139 2,3 on request

Fuji Electric FRENIC Mini series without an integrated braking resistor and integrated EMC filter (1 phase / 200 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
FRN0.1C1Е-7E 200 (1ph) 0,1 0.8 + IP20 25-400 150 80x120х80 0,7 on request
FRN0.2C1Е-7E 200 (1ph) 0,2 1.5 + IP20 25-400 150 80x120х80 0,7 on request
FRN0.4C1Е-7E 200 (1ph) 0,4 3 + IP20 25-400 150 80x120х95 0,7 on request
FRN0.75C1Е-7E 200 (1ph) 0,75 5 + IP20 25-400 150 80x120х140 1,2 on request
FRN1.5C1Е-7E 200 (1ph) 1,5 8 + IP20 25-400 150 110x130х149 2,4 on request
FRN2.2C1Е-7E 200 (1ph) 2,2 11 + IP20 25-400 150 140х180х139 2,9 on request

Fuji Electric FRENIC Mini series without an integrated braking resistor and integrated EMC filter (3 phase / 400 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
FRN0.4C1Е-4E 400 (3ph) 0,4 0.75 + IP20 25-400 150 110х130х115 1,5 on request
FRN0.75C1Е-4E 400 (3ph) 0,75 2.5 + IP20 25-400 150 110х130х139 1,5 on request
FRN1.5C1Е-4E 400 (3ph) 1,5 3.7 + IP20 25-400 150 110х130х139 2,5 on request
FRN2.2C1Е-4E 400 (3ph) 2,2 5.5 + IP20 25-400 150 110х130х139 2,5 on request
FRN4.0C1Е-4E 400 (3ph) 4 9 + IP20 25-400 150 140х180х139 3,0 on request

Fuji Electric FRENIC Mini series with integrated braking resistor and without built-in EMC filter (3 phase / 400 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
FRN1.5C1S-4E21 400 (3ph) 1,5 3.7 + IP20 25-400 150 110х130х139 1,8 on request
FRN2.2C1S-4E21 400 (3ph) 2,2 5.5 + IP20 25-400 150 110х130х139 1,8 on request
FRN4.0C1S-4E21 400 (3ph) 4 9 + IP20 25-400 150 140х180х139 2,5 on request
Technical Information and Features

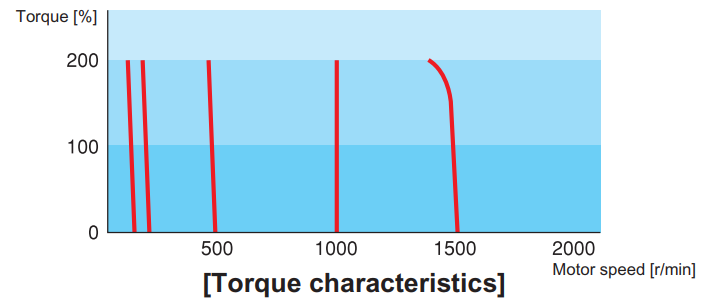

Fuji inverter high starting torque, at 150% or more for Frenic-Mini series

Equipped with Fuji, s original simplified torque-vector control system and the automatic torque boost function, the inverter provides consistent powerful operation (when automatic torque boost is ON, slip compensation control is ON, and when running at 5Hz or more).

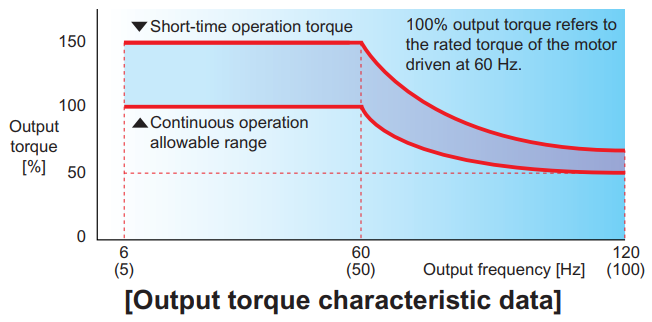

*The above graph shows an example of torque characteristics obtained when FRENIC-Mini is combined one-to-one with Fuji, s standard three-phase motor (8-type series: 4 poles).

Braking resistor connectable to the Fuji Frenic-Mini compact inverter

Owing to a built-in braking transistor (0.4kW or larger), an optional braking resistor can be connected to increase the regenerative braking capacity for conveyance and transportation machinery that require large braking power. For inverters of 1.5kW or larger, it is possible to select the model that incorporates a braking resistor.

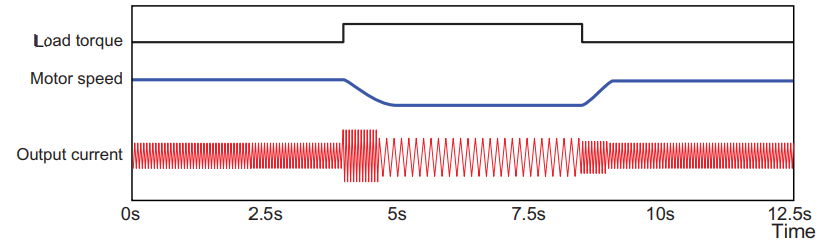

Trip-free operation with Fuji inverter Frenic-Mini compact series

The remarkably improved current limiting function (stall prevention) allows trip-free operation even for an impact load.

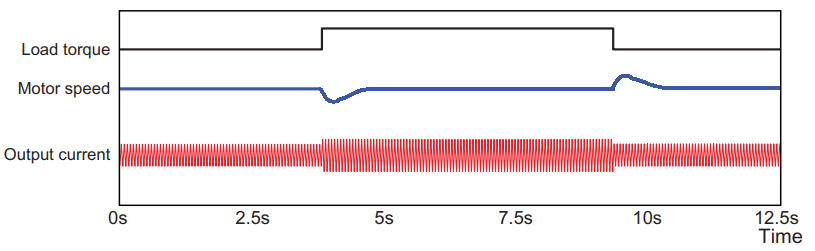

Stable operation even for a step load

The slip compensation function permits stable operation even when the motor load fluctuates (step load).

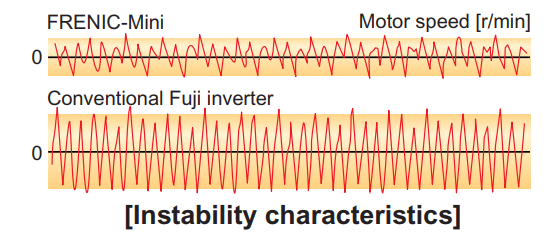

Reduced motor instability at low speed with Fuji Vfd Frenic-Mini FRN C1 series

Fuji, s unique control method improves voltage control performance and reduces motor instability at low speed to about a half or less (at 1Hz) compared with that of conventional inverters.

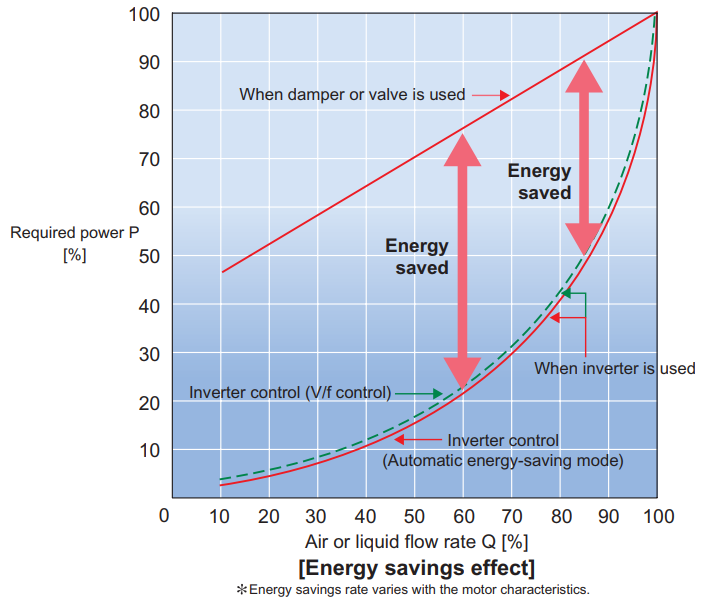

Automatic energy-saving provided as a standard function for Fuji Frenic-Mini FRN C1 series

By controlling the motor loss to a minimum, FRENIC-Mini further saves electric power when applied to fans or pumps.

*Energy saving rate varies with the motor characteristics.

PID control function

Permits motor operation while controlling temperature, pressure, or flow rate without using an external device such as temperature controller.

Cooling fan ON/OFF control function
The inverter, s cooling fan can be turned off while the fan or pump is stopped for noise reduction and energy savings.
