PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE 40 ... 600A

send
Braking devices enable low-wear and reliable braking of your machines and plants. With electronic DC brakes made by PETER electronic, you can reduce routine maintenance costs and extend the life of your equipment. The integrated standstill detection function of the DC brake "VersiBrake" enables reduction of the deceleration time and thus increases the safety of your equipment.

  • DC Braking with one-way rectification
  • Controlled by microcontroller
  • Suitable for all asynchronous motors
  • Easy mounting, also for retrofitting into existing plants
  • Wear-resistant and maintenance-free
  • Special voltages up tp 575V (UL: bis 480V) with Option „B“
  • For snap-mounting onto 35mm top-hat-rail
  • Degree of protection IP 20
PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE 40 ... 600A
Model   Rated current, A   Rated  voltage, V
 Rated motor current, A
 Max. braking current Braking voltage
 Max. braking time
 Contact rating
 Delay time
 Weight / kg
 Price
VB 230-40 / 400-40      40A 220 / 240V
380 / 415V    		20A 20%
 0 ... 130VDC
0 ... 220VDC 		40s / 320s 3A/250VAC; 3A/30VDC self-optimizing 2,1kg
  471 €
VB 230-60 / 400-60      60A 220 / 240V
380 / 415V    		30A 20%
 0 ... 130VDC
0 ... 220VDC
 40s / 320s
 3A/250VAC; 3A/30VDC self-optimizing
 2,1kg
 526 €
VB 230-100 / 400-100      100A 220 / 240V
380 / 415V    		50A 20%
 0 ... 130VDC
0 ... 220VDC
 40s / 320s
 3A/250VAC; 3A/30VDC self-optimizing 2,1kg
 603 €
VB 230-200 / 400-200      200A 220 / 240V
380 / 415V    		100A 20%
 0 ... 130VDC
0 ... 220VDC
 40s / 320s
 3A/250VAC; 3A/30VDC self-optimizing 3,1kg
 833 €
VB 230-400 / 400-400      400A 220 / 240V
380 / 415V    		200A 20%
 0 ... 130VDC
0 ... 220VDC
 40s / 320s
 3A/250VAC; 3A/30VDC self-optimizing 7,2kg
 1354 €
VB 400-600 / 400-600      600A 220 / 240V
380 / 415V    		300A 20%
 0 ... 130VDC
0 ... 220VDC
 40s / 320s
 3A/250VAC; 3A/30VDC self-optimizing 10,2kg
 2079 €

Technical Information and Features

PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE 40 ... 600A

Function:
- Control via motor contactor
- Standstill- or time-dependent braking
- Signalling relay for exceeded braking times
- Braking current adjustments 0...100%, current control
- Automatic remanence time optimization
- Braking times 0,5 – 320s
- Temperature monitoring of heat sink
- Potential-free signalling and control outputs
- 2nd braking time 0,5 – 40s selectable
- Manual braking stop selectable

Typical Applications:
- Ventilators and fans
- Stirrers
- Centrifuges
- Saws
- Conveyors
- Wood working machines
- Grinding machines
- Drives with high load
Others.

Options for PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE 40 ... 600A series.

The following option packages are available:
VersiBrake 230/400-40 …600, “with option package APC”
- Braking current display
- Plug-in control terminals
- Motor PTC monitoring
- Star-delta starting control
- Standstill signalling relay
- Braking current monitoring

VersiBrake 600-40 … 600 UL, „with option package APBC“
- All options included as “option package APC”
- Wide voltage range 200-600V
- Further control voltages upon request.

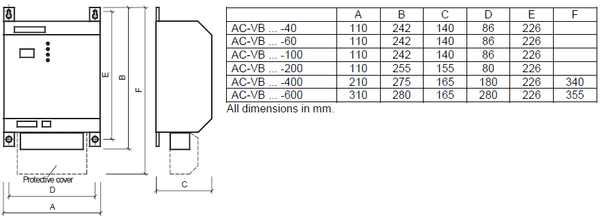

Dimensions:

PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE 40 ... 600A SERIES DIMENSIONS

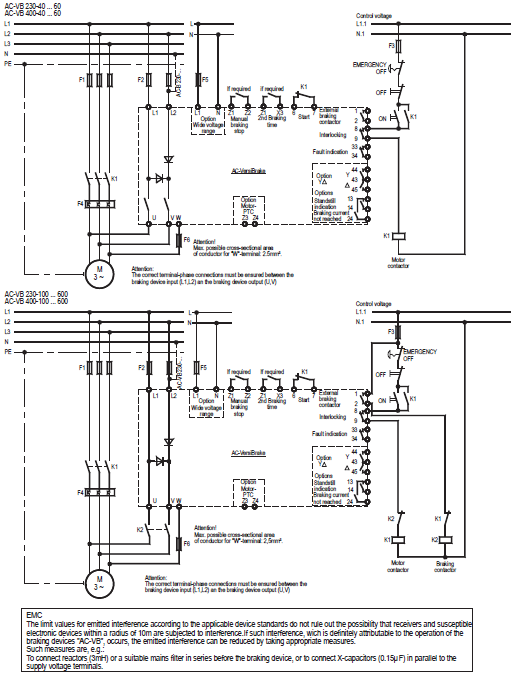

Connection Diagrams:

PETER ELECTRONIC, BRAKING DEVICES VERSIBRAKE 40 ... 600A SERIES CONNECTION DIAGRAM
