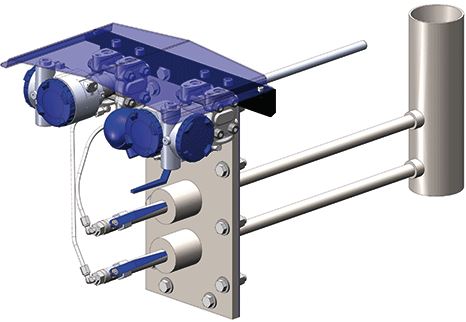

Fuji Electric, Fuji ZMV Microventuri flue gas flowmeter

3 x 4-20 mA signal : Flow / Pressure / Temperature. Tube lengths are adapted to duct dimensions.

- All in one product with mounting
- Flow, temperature and pressure measurements
- High performance FUJI FKC pressure transmitters
- No possible contamination with dirty flue gas (biomass flue, heavy fuel oil, coal etc.)


Applications.
Environmental Monitoring:
- Combustion plants
- Incineration
- District Heating
- CEMS in all type of industry

Fuji Electric ZMV MICROVENTURI FLUE GAS FLOWMETER advantages.

All-in-one system.
- One single flange on the stack
- Normalized flow :
differential pressure
absolute pressure
temperature


Fuji Electric components.
- FKC pressure sensors
- FE Design
- Options with FE PLC

Adaptability.
- Small and large diameter stacks
- Only one flange on only on side of the stack
- Perfect for very dusty applications :
no possible clugging
biomass, fuel or coal fired boilers.

Certification and competition.
- TÜV QAL1 Certification in progress
- Highly competitive solution
