FUJI ELECTRIC, HMI PANELS V9 series

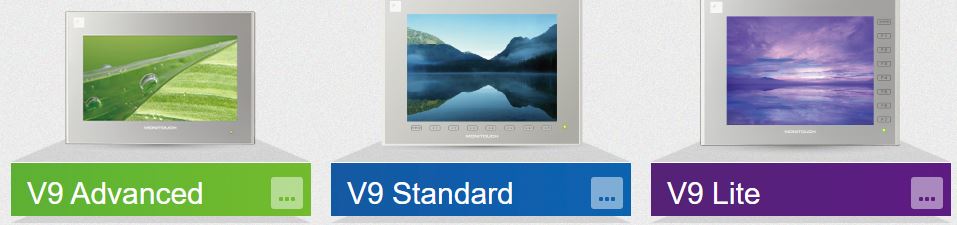

Satisfying, intuitive control Impressive ability to convey data. Boosts efficiency in the field through enhanced performance. On its release in 1988 as the first ever programmable display*, MONITOUCH ushered in a new era of human-machine interface technology. It is now used as an information terminal for countless different purposes in production sites all over the world. The total number of shipments has reached around one million. We have continuously pioneered the field of programmable displays through an impressive array of exciting new cutting-edge features specifically designed to meet the needs of our clients. MONITOUCH THE PREMIUM. We are confident that this new lineup will meet your requirements for all types of application.

FUJI ELECTRIC, HMI PANELS V9 SERIES NETWORK.

VNC Server.
- Remote Connection from Tablet PCs.
All of the V9 family has remote monitoring/maintenance capabilities via Ethernet, thanks to its VNC feature.

- Direct communication with your tablet PC.
Wireless LAN models have built-in access point so that you can establish connection with wireless LAN devices without setting up extra access points.

Wireless LAN.
By connecting a PC to a V9 via wireless LAN, transmission of screen program and the reading and writing of files through FTP server/client function becomes available. On-site debugging can be conducted easily, without the need for a cable connection.

DHCP Client.
The information required for network connectivity can be acquired from a server as a DHCP client or can assign to a client as a DHCP server.

Web Machine Interface.
- VPN Remote Access / Cloud Data Utilization Solution.
The Web Machine Interface is a solution service that makes remote monitoring safe, easy, and inexpensive. It consists of two services: “VPN Remote Access Service” which enables secure remote monitoring by VPN and “Cloud Data Utilization Service” which can receive various types of data via a cloud server. By performing remote maintenance, it is possible to check for signs of abnormality in advance and ensure proper maintenance of the machine. It also helps to reduce the number of sudden stoppages and implements preventive maintenance.

Network Camera Compatible.
- Real-time Monitoring of Remote Site.
By connecting to a network camera, it is possible to display camera images in real time on the V9 series screen. It is especially useful for monitoring and checking the inside of clean rooms.

FTP Compatible.
- FTP Server Function.
Files in a storage media inserted in a V9 can be read out and written using a PC.
- FTP Client Function.
Files on an FTP server can be read and written using the V9 series.

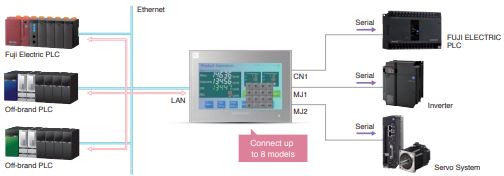

8-Way Communication.
- Connection and Data Transmission with Multiple Devices.

Supports EtherCAT Connections.
- EtherCAT (Slave) Connections.
The “CUR-09” communication unit for EtherCAT connection allows for general connection to EtherCAT compatible models. It can also serve as a gateway between devices connected to the V9 series and the EtherCAT master equipment.

Ladder Monitoring Function.
- Enable PLC Monitoring.
PLC ladder monitoring is available on the V9 series screen. Freely search for the address you want to see, or if you have more than one program, it is possible to switch programs during RUN mode.

Path-through Programming.
- Ladder Program Transmission (3-way).
Up to 3 PLCs are accessible to monitor and revise PLC programs by connecting a PC to V9 via Ethernet.

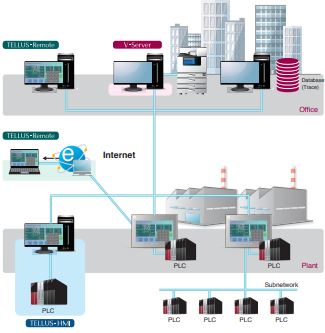

TELLUS and V-Server.
- Remote Monitoring and Operation Solutions.
This application software connects remotely located V9 series to office computers in order to provide on-site information and to monitor and control equipments. You can allocate jobs based on the operation conditions of the line, respond quickly to trouble, and achieve more efficient and cost-effective production.

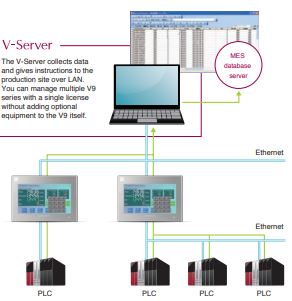

V-Server:
- Data can be collected in real time by capturing site status and production information.
- It can be linked with databases such as SQL Server. Or save data in CSV or Excel format.
- It supports operations suited to the site via various operation directives based on event monitoring.

TELLUS Remote.
- You can use the same screen data as the on-site V9 series, eliminating the need to create a new remote monitoring screen.
- Multiple startups allow you to monitor and operate more than one V9 series via a single PC

TELLUS HMI.
- Display and operation can be performed on your PC instead of on the V9 series.
- It enables you to easily connect to peripheral devices such as printers. There is no need to worry about selecting peripheral devices.

MES Interface Features.
- Operation Monitoring and Production Management Solutions.
Various types of information such as aggregation of production results, number of defects and stoppage factors are sent to the database using SQL statements from the V9 series through the V-Server. Communication with the database can be accomplished without a gateway PC or cumbersome programming.

- Programming not required.
By simply specifying the data to be stored in the database on V-SFT, you can communicate with the database without the need for programming.

- Prevents data loss.
If transmission fails, it will produce an error log, so you do not have to worry about losing important data.

- Reduces system load.
When various conditions are fulfilled, data can be transmitted from the V9 series. It reduces the load on the system by eliminating the need for constant monitoring on the higher-level side.

(MES:Manufacturing Execution System) This “Manufacturing Execution System” has been designed to optimize quality, production volume, delivery time, and cost as a management and production control system for manufacturing sites.

Fuji Electric, HMI panel usability and graphics.

Smooth Operation with Your Fingers.
- Zooming In and Out with Two Fingers.
The displayed image can be magnified up to 200% by pinching out the screen*1. It can be reduced to its original size by pinching it in.

Scrolling Magnified Images.
You can view a particular part of a magnified image in close-up while scrolling around the screen.

Abundant Quantity of Information.
- Displaying Four Times the Screen Size.
The whole area of a large image can be confirmed easily by scrolling the screen without the need of switching it. The navigation window helps you to recognize the current displayed position instantly.
- Widescreen LCD.
V9 Advanced models are equipped with a high-precision, high-resolution widescreen (16:9). Greater volume and variety of information can be displayed on the screen.

Expression and beauty.
- 7-segment Fonts for Realistic Expression.
7-segment fonts allow for realistic, highly visible expression of measuring instruments. Non-illuminated segments can be shown in a subtle color.
- Compatible with Vertical Placement.
The screen can also be displayed and edited while the panel is placed vertically (by left or right turning).
- TrueType Font as Standard.
TrueType font has been added to the standard fonts. Smoother display is possible via antialiasing. Furthermore, space can be reduced relative to Windows fonts, thus enabling you to work without worrying about screen data memory.
- Video/RGB Input-Output.
By attaching an optional unit, videos and RGB images can be displayed on the V9. Also, images displayed on the V9 can be sent to external displays.
- Audio Playback Function.
It comes standard with an output port for audio playback that allows you to play audio files saved to storage without any optional units.
- Dimmer Function.
Fine-grained adjustment is possible via 128-step setting. Even at night or in dark places, the screen is easy to see and not too dazzling, thus enabling smooth operation.
- Extended Datasheets.
It also supports PDF output in addition to standard printer output. By converting various forms such as daily reports to PDF, the printer is no longer needed. It helps to achieve paper and space savings. PDF files saved on storage can be transferred to PC in office using FTP server/client functions, which allows you to check data without having to go to the production site.
- Overlap Function.
Up to 10 pop-up windows can be displayed on the screen at the same time. All of them can be displayed transparently without limiting the overlap size of each window. You can also use overlap screens as subscreens or check them by scrolling without switching to the main screen.

FUJI ELECTRIC, HMI PANELS V9 SERIES STORAGE

Compatible with Event Record Functions.
By using a commercially available USB camera, you can record video before and after alarm occurrences, such as those due to momentary stoppages, and save it in an SD card to support cause investigation and improve the operating efficiency of equipment.

Equipped with Video Player.
By playing videos used for troubleshooting at time of abnormalities, operators can easily learn how to react to the issues quickly. In addition to viewer initiated playback from the system menu, video can also be played via switch and PLC controller commands. It supports MP4 (MPEG-4) video files to ensure high compression and high quality.

Achieve Sleeker Screens with Simple, Easy-to-Understand Operations.

Backward Compatibility with Previous Models.
- V8 series Compatibility. V-SFT Ver. 6 provides intuitive operation, with easy-to-use visual tools and refined displays. In addition to the V9 series, V-SFT Ver. 6 is also compatible with the V8 series.
- Compatible with Program from Legacy Products.
Screen data from previous models created in an older version of V-SFT can be converted as is to data for the current model. This allows anyone to leverage their screen data assets from previous models.

Configuration of Easy-to-view Screens.
- Wider Range of Parts.
The number of picture icons has been increased, and the icons with plain design have been added. Pick from the wide range of ready-made icons for sophisticated representation.
- Improved 3D Parts Scaling Function.
3D parts can be scaled up and down without changing the widths of frames. Frame size can be modified by batch, or individually according to the item type.
- Line Width Setting.
The line widths of graphic items and trend items (graph lines, reference lines) can now be set in eight steps. Effective screens can be created using a variety of drawing tools and graph representations.
- Copy/Paste of Microsoft Office Data.
Graphics created in Microsoft Office Word, Excel and PowerPoint can be copied and pasted into V-SFT files by converting them to pictures, patterns or parts.
- Pasting of an Image File.
It is possible to paste a PNG file directly onto the screen. JPG, BMP and GIF formats are also supported as image files, allowing you to create whatever visually impressive screen you choose.

Upgraded Operability.
- Integration of Search Menu.
The search menu, which used to be displayed separately, has now been integrated for easy operation.
- Intuitively Grasp the Connection Device Configuration.
The improved hardware setting screen makes it easy to grasp exactly how devices are connected together in the system.
- Enhanced Interlock Setting.
Interlock can be set with a ladder drawing screen. The condition settings are easy to understand and convenient even when setting multiple conditions. It is possible to set interlocking for keypad indication conditions in addition to s witch conditions. Up to five conditions (AND or OR) for a bit device, word device or security level can be set, which is suitable for setting complicated conditions.
- Character String Table.
Text for switches, lamps and other parts can be managed centrally using the character string table. Frequently used text can be registered in the table for easy reference and batch modification. When a change occurs, you can make bulk changes simply by changing the string table.
