PETER ELECTRONIC, Braking Devices AC-VersiBrake 230/400-6/25/30LT

send
Braking devices enable low-wear and reliable braking of your machines and plants. With electronic DC brakes made by PETER electronic, you can reduce routine maintenance costs and extend the life of your equipment. The integrated standstill detection function of the DC brake "VersiBrake" enables reduction of the deceleration time and thus increases the safety of your equipment.

  • DC braking with one-way rectification
  • Suitable for all asynchronous motors and for mono phase motors
  • Controlled by microcontroller
  • Easy mounting, also for retrofitting into existing plants
  • Wear-resistant and maintenance-free
  • Integrated braking contactor
  • For snap-on mounting onto 35mm DIN rail
  • Degree of protection IP 20
  • Successor for braking devices type BR und BR-L
PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 230/400-6/25/30LT
Model   Rated current, A   Rated  voltage, V
Rated motor current, A
Max. braking current      Braking voltage
      Max. braking time
     Contact rating
Delay time
Weight / kg
Price
VB 230-6LT      6A 220 / 240V  0,3 ... 3A 6A
0 … 110VDC 0 … 30s 3A/250VAC; 3A/30VDC self-optimizing 0,6kg
191 €
VB 230-25LT      25A 220 / 240V  2 … 12,5A 25A
0 … 110VDC 0 … 30s 3A/250VAC; 3A/30VDC self-optimizing 0,6kg
199 €
VB 230-30LT      30A 220 / 240V  2 … 12,5A 30A
0 … 110VDC 0 … 30s 3A/250VAC; 3A/30VDC self-optimizing 0,6kg
247 €
VB 400-6LT      6A 380 / 415V
0,3 … 3A 6A
0 … 220VDC 0 … 30s 3A/250VAC; 3A/30VDC
self-optimizing 0,6kg
191 €
VB 400-25LT      25A 380 / 415V
2 … 12,5A 25A
0 … 220VDC 0 … 30s 3A/250VAC; 3A/30VDC self-optimizing 0,6kg
199 €
VB 400-30LT      30A 380 / 415V  2 … 15A 30A
0 … 220VDC 0 … 30s 3A/250VAC; 3A/30VDC self-optimizing 0,6kg
247 €

Technical Information and Features

PETER ELECTRONIC, Braking Devices AC-VersiBrake 230/400-6/25/30LT

Function:
- Direct online start via motor contactor
- Overload protection
- Braking current control
- Automatic remanence time optimization
- Braking current infinitely adjustable 10-100%
- Braking interrupt is possible
- Restart 1,2s after braking interrupt
- Braking time adjustable
- Potential-free output for motor contactor interlocking during braking; also usable to energize the star contactor during braking.

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 230/400-6/25/30LT TYPICAL APPLICATION

Typical Applications:
- Saws
- Conveyors
- Woodworking machines
- Grinding machines
- Screening machines
- Vibrating feeders
Others

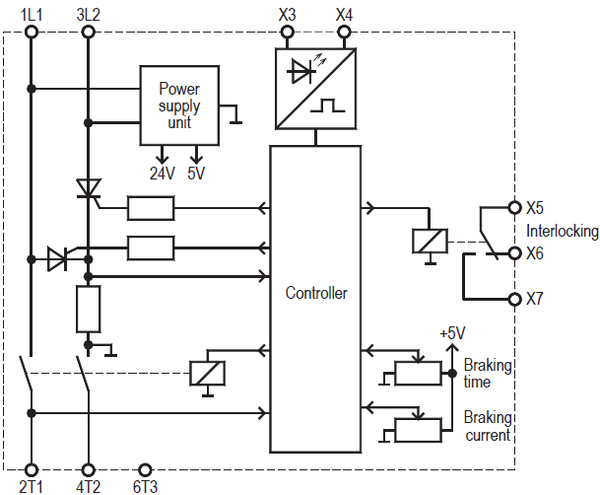

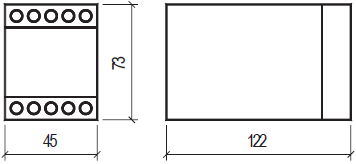

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 230/400-6/25/30LT dimensions and connection diagram

- Power draw of electronics.
3 VA.
- Max. cross-sectional area for connection.
2x 2,5mm² per terminal.
- Ambient / storage temperature.
0°C ... 45°C / -25°C ... 75°C.

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 230/400-6/25/30LT dimensions and connection diagram

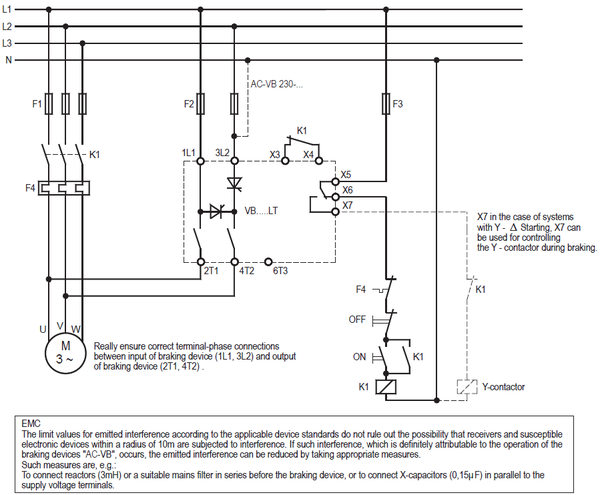

Connection Diagramm:

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 230/400-6/25/30LT connection diagram
