Home » Pressure and level transmitters » Pressure transducers

Fuji Electric, Pressure transducers

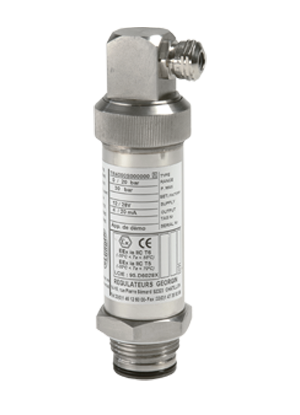

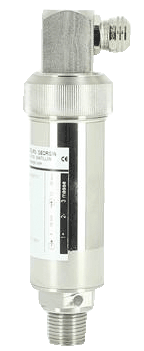

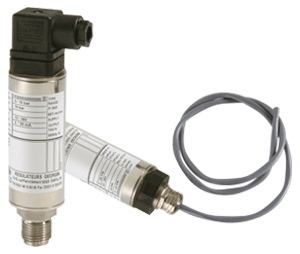

Series: GR/GA TR/TA-01 TR/TA-02 TR/TA-22
Version: Gauge and absolute pressure Relative and absolute pressure Relative and absolute pressure Elative and absolute pressure
Measurement range: 1 to 250 bar -1 to 400 bar -1 to 400 bar -1 to 50 bar
Technology: Thick enameled strain gauge on ceramic Thick enameled strain gauge on ceramic Thick enameled strain gauge on ceramic support Thick enameled strain gauge on ceramic support
Ouput: 4-20 mA - 2 wires 4-20 mA - 2 wires 4-20 mA - 2 wires 4-20 mA - 2 wires
Global error: +/-0.5% FS +/-0.2% FS +/-0.2% FS +/-0.2% FS
Process connection: 1/2"GM standard 1"BSPM, CLAMP or SMS
Setting: Zero and span Zero and span Zero and span
Agreement: ATEX 2014/34 UE ATEX 2014/34 UE ATEX 2014/34 UE ATEX 2014/34 UE
Specifications: Stainless steel head and body (reinforced tightness), screw terminal connectio, axial or radial cable gland Flush ceramic cell, no retention area and no fluid filling, 316L stainless steel head and housing (reinforced tightness), terminal connection, axial or radial cable gland
Options: Intrinsic Safety, flush diaphragm, oygen cleanin, reinforced Max. P, rangeability from 50 to 100% F Intrinsic Safet, flush diaphragm, oygen cleanin, reinforced max-pressure, rangeability (50 to 100% FS) Intrinsic Safety, flush diaphragm, oygen cleaning, reinforced P. Max., rangeability of 50 to 100% FS
