DOLD Specific installation electronics

DOLD Specific installation electronics
This product group from DOLD includes the energy-saving switch, the hybrid switch relay and the network relay. You can save energy and costs with the energy-saving switch which is a combination of a timer and remote switch. With it, you can turn off the lighting in a controlled manner before the expiration of the time configured. Alongside lighting, it also makes sense for fans, dryers and other electricity consumers that seldom have to be immediately turned back on after being used. The hybrid switch relay is used in heating, ventilation, air conditioning and lighting technology for the switching of strongly inductive and/or capacitive loads such as energy-saving lamps. Electro-smog can be avoided with DOLD net relays. They are used to deactivate the power supply of electrical circuits in bedroom or other rooms sensitive to electro-smog.
Type Function Output contacts, max. Thermal current  lth (A) For top hat rail mounting Width [mm]
IK 8832, SK 8832 Buzzer

+ 17.5
RK 8832 Buzzer

+ 17.5
IK 5115 Display unit

+ 17.5
IK 3070/20 Hybrid relay 1 C/O 16 + 17.5
IK 8830 Stepping switch 2 NO 16 + 17.5
IK 8715 Priority relay 1 NC
+ 17.5
IK 9078, SK 9078 Mains relay 1 NO 16 + 17.5
IK 8701 Switching relay 2 C/O 16 + 17.5
IL 8701 Switching relay 4 C/O 16 + 35
IN 8701 Switching relay 4 C/O 16 + 52.5
IK 8831 Series switch 2 C/O 16 + 17.5
NO = normally open contact; NC = normally closed contact; C/O = change over

Technical Information and Features

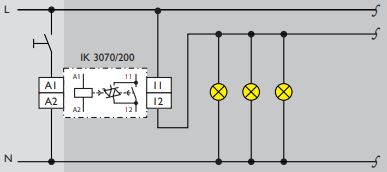

DOLD hybrid relay IK 3070/200 - perfectly combined.

Hybrid relays combine the advantages of robust relay technology with wear-resistant semiconductor technology in a perfect way. Classic electromechanical relays offer a significant advantage over solid-state relays. While solid-state relays generate heat permanently due to the forward voltage, which must be dissipated by heat sinks at higher load currents, the current-carrying relay contact has a very low contact resistance and thus generates hardly any heat loss. Solid-state relays are insensitive to shock and vibration. Their strengths lie above all in the switch-on and switch-off processes. No bouncing, no electric arcs, no mechanical wear - and thus an almost unlimited electrical service life. The hybrid relay IK 3070/200 from DOLD perfectly combines the advantages of both worlds. When switched on, the solid-state first switches in the zero crossing of the alternating voltage. A few milliseconds later, the relay contact takes over the continuous current and ensures low power dissipation. When the relay is switched off, the current is first transferred from the relay to the solid-state, which then switches off at zero current. In this way, surge voltages and currents in the load circuit are minimized. Due to the combination of the different switching technologies, the IK 3070/200 is particularly suitable for applications that require a high switching capacity and a long service life at the same time. It shows its strength in systems in which a standstill leads to high costs. Applications can be found in automation technology and the process industry as well as in offshore wind turbines.

Advantages and customer benefits:
-  Long service life thanks to hybrid technology
- Space-saving with an overall width of only 17.5 mm
- For loads with very high inrush currents.

- Switch on: Triac precedes contact. It switches on at zero voltage crossing and takes over the high inrush currents, e.g. for incandescent lamps (PTC thermistors), electronic ballasts for fluorescent lamps or devices with a high capacitive load.

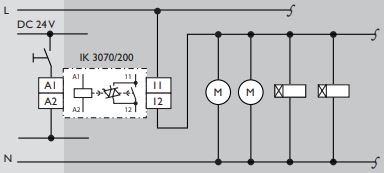

DOLD hybrid relay IK 3070/200 - perfectly combined.
- Switch off: Triac follows the contact. It switches off at zero crossing of the current and thus prevents a strong spark formation and thus an early failure of the contact with inductive loads.
DOLD hybrid relay IK 3070/200 - perfectly combined.
