Home » Braking devices » Braking Devices AC-VersiBrake 25A

PETER ELECTRONIC, Braking Devices AC-VersiBrake 25A

send
Braking devices enable low-wear and reliable braking of your machines and plants. With electronic DC brakes made by PETER electronic, you can reduce routine maintenance costs and extend the life of your equipment. The integrated standstill detection function of the DC brake "VersiBrake" enables reduction of the deceleration time and thus increases the safety of your equipment.

  • DC Braking with one-way rectification
  • Controlled bei microcontroller
  • Suitable for all asynchronous motors
  • Easy mounting, also for retrofitting into existing plants
  • Wear-resistant and maintenance-free
  • Special voltages up tp 575V (UL: bis 480V) with Option „B“
  • For snap-mounting onto 35mm top-hat-rail
  • Degree of protection IP 20
PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 25A
Model   Rated current, A   Rated  voltage, V
Rated motor current, A
Max. braking current    Braking voltage
 Max. braking time
 Contact rating Delay time Weight / kg
Price
VB 230-25      25A 220 / 240V  12,5A 8%
0...130VDC
15s    6A/250VAC; 6A/30VDC self-optimizing  0,8kg
 247 €
VB 400-25      25A 380 / 415V  12,5A 8%
0...220VDC 15s    6A/250VAC; 6A/30VDC self-optimizing  0,8kg
 247 €

Technical Information and Features

PETER ELECTRONIC, Braking Devices AC-VersiBrake 25A

Function:
- Control via motor contactor
- Standstill detection
- Braking current limited to rated device current
- Remanence time optimization
- Braking current infinitely adjustable
- Potential-free output for motor contactor interlocking during braking
- Potential-free output for fault signalling relay

Typical Applications:
- Saws
- Conveyors
- Woodworking machines
- Grinding machines
Others.

Options: (upon request)
- Star-delta starting control (D)
- Standstill signalling relay (S)
- Wide-voltage-range 200-575V (B) control voltage of 24VAC or 230VAC is necessary (please note in order)

Upon Request:
Printed circuit-board version.

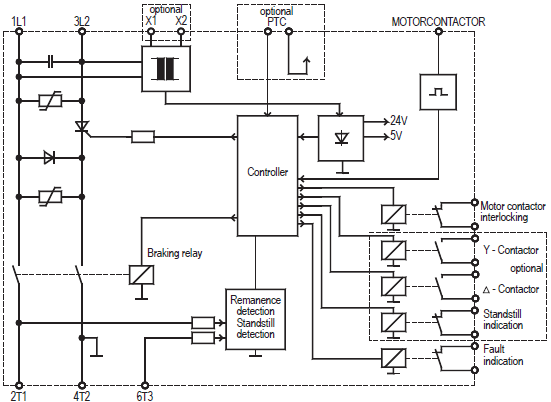

image1_2PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 25A

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 25A Technical data.

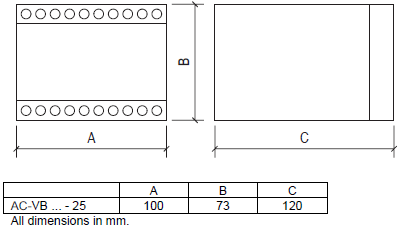

Dimensions:

PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 25A DIMENSIONS

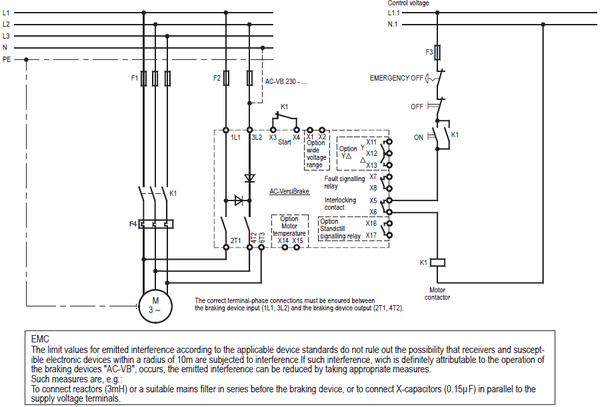

Connection Diagrams:
PETER ELECTRONIC, BRAKING DEVICES AC-VERSIBRAKE 25A CONNECTION DIAGRAM
