PETER Electronic, VersiStart III (9A~45A) series soft starters

send
PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

  • Three-phase controlled soft starter
  • Controlled by microcontroller
  • Optimized soft start and current control
  • Connection in the motor delta winding (cost saving via smaller rating)
  • Current and torque reduction during acceleration
  • Easy mounting, for snap-mounting on 35 mm standard rail
  • Integrated bypass relay
  • Parameterization by means of potentiometers
  • No mains neutral conductor (N) required
  • Economically priced substitute for star-delta starters
  • Spring-loaded terminals
  • Heat sink temperatur monitoring
  • Compact design, 45mm up to 25A and 52,5mm at 45A
  • Degree of protection IP20
  • Motor protection
  • Thermal device protection
PETER ELECTRONIC, VERSISTART II (3,5A~16A) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
 Motor rating, kW
 Control supply voltage, V    Max. switching frequency
  Starting time, sec
  Starting voltage
 Stopping time, sec
 Weight / kg
 Price
VS III 400-9      9A 400V  4kW
 24VDC … 230VAC
 50/h
 0,5 … 10s
40 … 80%
 0,25 … 10s 11kg 380 €
VS III 400-16      16A 400V  7,5kW 24VDC … 230VAC
 30/h 0,5 … 10s 40 … 80% 0,25 … 10s 1,1kg
 419 €
VS III 400-25      25A 400V  11kW 24VDC … 230VAC
 20/h 0,5 … 10s 40 … 80% 0,25 … 10s 1,1kg
 469 €
VS III 400-37      37A 400V  18,5kW 24VDC … 230VAC
 15/h 0,5 … 10s 40 … 80% 0,25 … 10s 1,1kg
 539 €
VS III 400-45      45A 400V  22kW 24VDC … 230VAC
 10/h 0,5 … 10s 40 … 80% 0,25 … 10s 1,1kg
 606 €

Technical Information and Features

PETER Electronic, VersiStart III (9A~45A) series soft starters

Function:
- Soft acceleration and deceleration
- Potential-free control input for soft acceleration and deceleration
-  Separately adjustable parameters accel. time, start voltage, decel. time, current limiting, - Rated device current and tripping class
- Boost-start selectable
- Potential-free relay output for operating state
- Transistor output — unit bypassed

Typical Applications:
- Door and gate drives
- Pumps, ventilators, fans
- Conveying systems, packaging machines
- Transport systems, assembly lines, machine application

Options (upon request):
- Special voltages 230V and 480V
- Wide voltage range 200-480V with external control supply voltage US 230VAC (B)
- Signalling contact (M)beginning of acceleration until end of deceleration
PETER ELECTRONIC, VERSISTART III (9A~45A) SERIES SOFT STARTERS typical designation (standard).

PETER ELECTRONIC, VERSISTART III (9A~45A) SERIES SOFT STARTERS typical designation (standard).

- Rated operation voltage Ue
400V ± 10% 50/60Hz.
- Control supply voltage Us only with option B
230V ± 10% AC 50/60 Hz
- Max. power dissipation.
in operating related to max. starting frequency 20W.
standby 5W.
- Min. motor load.
20% of device rating.
- Starting time.
0,5....10s .
- Starting voltage.
40-80% .
- Stopping time.
0,25....10s.
- Restart time.
200ms.
- Input resistance control inputs.
80kOhm.
- Control voltage Uc.
24VDC … 230VAC.
- Contact rating of relay outputs RA1/RA2.
2A / 250VAC / 30VDC.
- Contract rating of transistor output.
 20mA / 30VDC
- Installation class.
3.
- Max tightening torque control / power terminals.
Spring-loaded terminals.
- Ambient / storage temperature.
0°C ... 45°C up tp an altitude of 1000m / -25°C ... 75°C

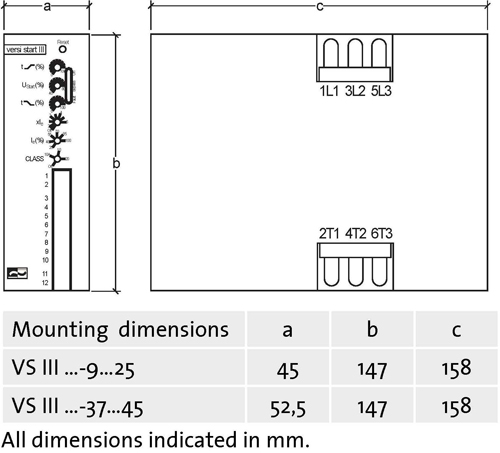

Dimensions:

PETER ELECTRONIC, VERSISTART III (9A~45A) SERIES SOFT STARTERS DIMENSIONS

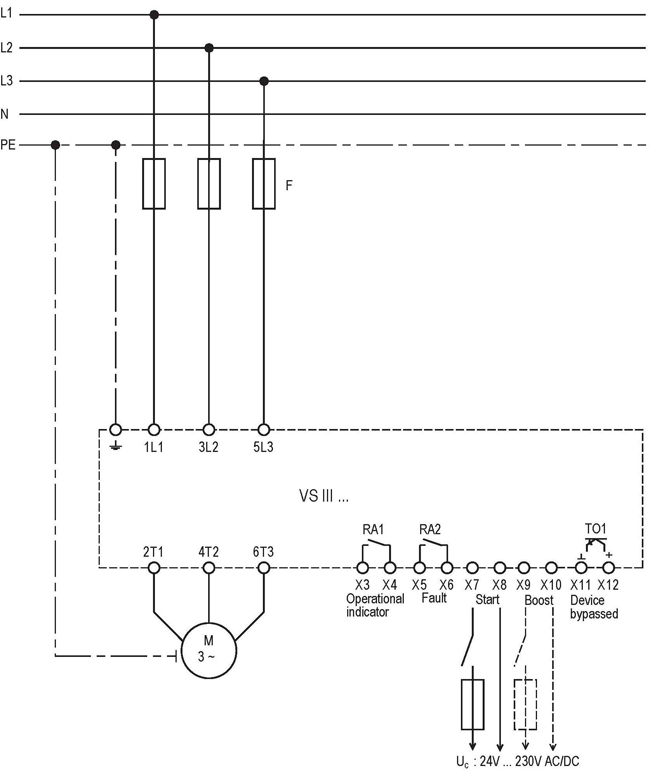

Connection Diagram:

PETER ELECTRONIC, VERSISTART III (9A~45A) SERIES SOFT STARTERS CONNECTION DIAGRAM
