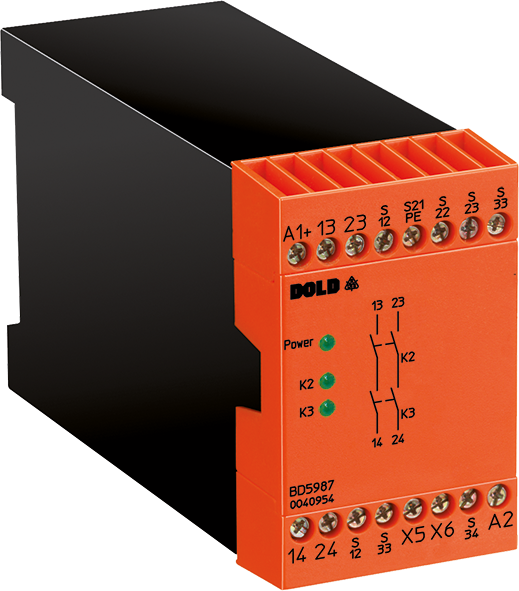

DOLD EMERGENCY STOP MODULE BD 5987
The BD 5987 is used to interrupt a safety circuit in a safe way. It can be used to protect people and machines in applications with e-stop buttons and safety gates. The BD 5987.02/301 can be used as electronic replacement of a safety switch according to EN 81-20, section 5.11.2.2.
Applications
Protection of people and machines- Emergency stop circuits on machines
- Monitoring of safety gates
Downloads
MODEL RANGE
| Order Code | Model | Description | Sales Price | |
|---|---|---|---|---|
| 0038985 | BD5987.02 AC110V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0044966 | BD5987.02 AC127V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0037333 | BD5987.02 AC230V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0044967 | BD5987.02 AC240V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0038369 | BD5987.02 AC24V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0039818 | BD5987.02 AC42V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0041960 | BD5987.02 AC48V 50/60HZ | EMERGENCY STOP MODULE | € 322,00 | |
| 0037332 | BD5987.02 DC24V | EMERGENCY STOP MODULE | € 311,00 | |
| 0043360 | BD5987.02/001 AC110V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0050815 | BD5987.02/001 AC127V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0040955 | BD5987.02/001 AC230V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0045202 | BD5987.02/001 AC240V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0043229 | BD5987.02/001 AC24V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0043339 | BD5987.02/001 AC42V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0043905 | BD5987.02/001 AC48V 50/60HZ | EMERGENCY STOP MODULE | € 363,00 | |
| 0040954 | BD5987.02/001 DC24V | EMERGENCY STOP MODULE | € 346,00 | |
| 0066977 | BD5987.02/301 AC110V 50/60HZ | EMERGENCY STOP MODULE | € 381,00 | |
| 0066978 | BD5987.02/301 AC230V 50/60HZ | EMERGENCY STOP MODULE | € 381,00 | |
| 0066979 | BD5987.02/301 AC240V 50/60HZ | EMERGENCY STOP MODULE | € 381,00 | |
| 0066974 | BD5987.02/301 AC24V 50/60HZ | EMERGENCY STOP MODULE | € 381,00 | |
| 0066975 | BD5987.02/301 AC42V 50/60HZ | EMERGENCY STOP MODULE | € 381,00 | |
| 0066976 | BD5987.02/301 AC48V 50/60HZ | EMERGENCY STOP MODULE | € 381,00 | |
| 0066980 | BD5987.02/301 DC24V | EMERGENCY STOP MODULE | € 370,00 | |
| 0046009 | BD5987.03/001 AC110V 50/60HZ | EMERGENCY STOP MODULE | € 382,00 | |
| 0047923 | BD5987.03/001 AC127V 50/60HZ | EMERGENCY STOP MODULE | € 382,00 | |
| 0041172 | BD5987.03/001 AC230V 50/60HZ | EMERGENCY STOP MODULE | € 382,00 | |
| 0049018 | BD5987.03/001 AC240V 50/60HZ | EMERGENCY STOP MODULE | € 382,00 | |
| 0044201 | BD5987.03/001 AC24V 50/60HZ | EMERGENCY STOP MODULE | € 382,00 | |
| 0041171 | BD5987.03/001 DC24V | EMERGENCY STOP MODULE | € 365,00 | |
| 0056022 | BD5987.03/201 AC230V 50/60Hz | EMERGENCY STOP MODULE | € 382,00 | |
| 0044397 | BD5987.03/201 DC24V | EMERGENCY STOP MODULE | € 365,00 | |
Technical Information and Features
Advantages
- Safe disconnection of electrical circuits
- Line fault detection at On pushbutton
- Gold-plated contacts to switch small loads (input for PLC)
- Optionally cross fault detection in emergency stop circuit
Features
- According to
- PL e and category 4 to EN ISO 13849-1
- maximum SIL 3 to EN IEC 62061
- SIL 3 to EN 61508 - Output: 2 NO contacts for AC 250 V
- 1-channel or 2-channel connection
- LED displays for channels 1 and 2
- Overvoltage and short circuit protection
- Wire connection: also 2 x 1,5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
- Width 45 mm
- BD 5987._ _/001: same as BD 5987._ _ but
- Optionally automatic On function or after activation by the On pushbutton
- Optionally cross fault detection in emergency stop circuit
- BD 5987.02/301: same as BD 5987.02/001 but
- Suitable also for elevators according to EN 81-20/-50
- Complies to the requirements of the directive 2014/33/EU for elevators
- According to
- PL d and category 3 to EN ISO 13849-1
- maximum SIL 2 to EN IEC 62061
- SIL 2 to EN 61508 - Shorter release time when opening the supply circuit
- Single-channel e-stop circuit
