Light curtaine modules SAFEMASTER
If persons or objects approach a dangerous area, the DOLD light barrier switching devices deactivate the dangerous movement via contactless safety devices (AOPD) and ensure a safe condition. The light barrier switching devices are used to protect persons that regularly during the handling process must reach into machines and systems that are also a source of danger. A typical application is the conveying and removal of work pieces to presses. A benefit of this solution is higher productivity through longer cycle times as well as by refraining from mechanical safety devices - without having to reduce the safety level.
order
Type Function Cat. / PL acc. to EN 13849-1* SIL CL acc. to EN 62061* 1- / 2- channel Output contacts max. Nominal voltage UN 24 V DC Thermal current lth [A] max. Removable terminals Width [mm]
LG 5925/900 Light curtain controller 4 / e 3 1; 2 3 NO, 1 NC or 4 NO + 8 + 22.5
BG 5925/900 Light curtain controller 4 / e 3 1; 2 2 NO, 1 NC or 3 NO + 5 + 22.5
BH 5902/01MF2 Light curtain controller 4 / e 3 2 2 NO, 1 NC or 3 NO + 5 + 45
NO = normally open contact; NC = normally closed contact
* Please check state of approval of idividual devices in the latest data sheet.
For multiple monitored light barriers in combination with further safety functions see SAFEMASTER C and SAFEMASTER M
Technical Information and Features

DOLD Safemaster Light Curtain Controller

- According to 1) Performance Level (PL) e and category 4 to EN ISO 13849-1, 2) SIL Claimed Level (SIL CL) 3 to IEC/EN 62061, 3) Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
- According to EN 50156-2 for furnaces
- For light curtains with symmetric or asymmetric outputs adjustment with switch S1
- Output: max. 4 NO contacts, see contacts
- Single and 2-channel operation
- Line fault detection on On-button
- Manual restart or automatic restart, switch S2
- LED indicator for state of operation
- LED indicator for channel 1 and 2 and power
- Removable terminal strips
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
- As option with pluggable terminal blocks for easy exchange of devices with screw terminals or with cage clamp terminals.

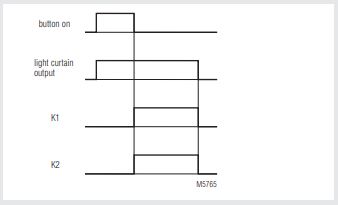

Function diagram.
DOLD Safemaster Light Curtain Controller
Applications.
Protection of people and machines:
- Light curtain controller for light curtains with selftesting (Type 4) according to IEC/EN 61 496-1
- Usage in furnace application in continuous operation acc. to EN 50156-1

DOLD Safemaster - Modules for light barrier evaluation.

Light barrier evaluation devices are used to protect access to hazardous areas. Light barriers belong to the group of electro-sensitive protective devices (ESPE) which switch off the hazardous movement when persons and objects approach a danger point and thus initiate the safe state. If a machine operator must intervene regularly in a machine, it is advantageous to use ESPE instead of mechanical guards. This reduces the access time and at the same time increases productivity and ergonomics.

Your advantages at a glance:
- Up to cat. 4 / PL e or SIL 3
- Increased productivity due to shorter cycle times

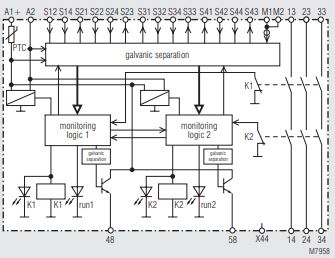

BH 5902/01MF2 - DOLD light curtain controller with selectable operating modes.

- According to 1) Performance Level (PL) e and category 4 to EN ISO 13849-1: 2008, 2) SIL Claimed Level (SIL CL) 3 to IEC/EN 62061, 3) Safety Integrity Level (SIL 3) to IEC/EN 61508, 4) Category 4 to EN 954-1;
- To connect max.: 3 light curtains 2-channel or 2 light curtains 2-channel and 2 muting sensors 1-channel or 1 light curtain 2-channel and 4 muting sensors 1-channel or 2 light curtains 2-channel and key switch for stepping operation, additionally: Start button and machine contact with line fault detection.
- Broken wire detection on light curtain input
- Outputs: 3 NO or 2 NO and 1 NC, 2 Semiconductor outputs, protected against short circuit and overload
- Suitable to connect light curtains of type 4 or selftesting light curtains type 2 according to IEC/EN 61 496-1, crossfault monitoring in the light curtain
- With under- and overvoltage detection and indication
- Reaction time: max. 30 ms
- LED indication for RUN and Channel 1,2
- Width 45 mm

Multifunction device, different functions selectable by rotational switches:
- protective operation e.g. light curtains
- protective operation with muting, e.g. conveyors:
* signal sequence of muting sensors can be selected * override function via start button
- Stepping operation e.g. on presses
* optionally with key switch * 1, 2 or 3 steps possible* setting of number of step possible via selector switch.
BH 5902/01MF2 - DOLD light curtain controller with selectable operating modes
