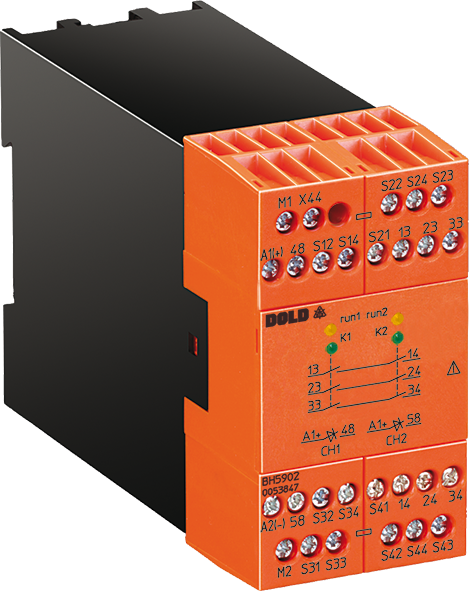

DOLD LIGHT CURTAIN CONTROLLER BH 5902/01MF2

SAFEMASTER Light curtain controller with selectable operating modes BH 5902/01MF2.

Application

Protection of men and machines e.g. presses and conveyors.

MODEL RANGE

Order Code	Model	Description	Sales Price
0053847	BH5902.03/01MF2/61 DC24V	LIGHT CURTAIN CONTROLLER	€ 766,00
0063754	BH5902.22/01MF2/61 DC24V	LIGHT CURTAIN CONTROLLER	€ 766,00

Technical Information and Features

According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL 3) to IEC/EN 61508
To connect max.:
- 3 light curtains 2-channel or
- 2 light curtains 2-channel and 2 muting sensors 1-channel or
- 1 light curtain 2-channel and 4 muting sensors 1-channel or
- 2 light curtains 2-channel and key switch for stepping operation
- Additionally: Start button and machine contact with line fault detection
Broken wire detection on light curtain input
Outputs:
- 3 NO or 2 NO and 1 NC
- 2 Semiconductor outputs, protected against short circuit and overload
Multifunction device, different functions selectable by rotational switches:
- Protective operation e.g. light curtains
- Protective operation with muting, e.g. conveyors
* Signal sequence of muting sensors can be selected
* Override function via start button
- Stepping operation e.g. on presses
* Optionally with key switch
* 1, 2 or 3 steps possible
* Setting of number of step possible via selector switch
Suitable to connect light curtains of type 4 or selftesting light curtains type 2 according to IEC/EN 61 496-1, crossfault monitoring in the light curtain
With under- and overvoltage detection and indication
Reaction time: max. 30 ms
LED indication for RUN and Channel 1,2
Width 45 mm
