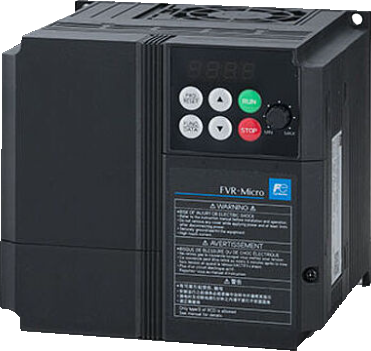

Fuji Electric FVR-Micro (FVR AS1) economical frequency inverter series for basic applications

send
FVR-Micro (AS1) compact series (1phase 200 V)
The FVR-Micro inverter combines two main features: small and strong. The simplified design helps the user to perform installations and operations effortlessly. Its conceptual design ensures saving space and energy, as well as costs. The FVR-Micro is designed to be space-saving and extremely cost-efficient, while being universally applicable. Especially where space is limited and small capacities are required, the FVR-Micro shows its best side: for example, in conveyor belt transports, mixing machines or smaller woodworking machines.
  • Capacity range from 0.4 to 3.7 kW
  • 3-phase 400 V (0.4 to 3.7 kW) and single-phase 200 V (0.4 to 2.2 kW)
  • Adaptation of control systems to minimize motor losses
  • Equipped with RS-485 as standard
  • PID controller
  • Analog input / Analog output / Multi-stage frequency / Jog operation / Remote/Local

Fuji Electric FVR-Micro (AS1) compact series (1phase 200 V)
Model Voltage,
V 		Capacity,
kW 		Current,
A 		V/f
mode 		Enclosure
IPXX 		Output frequency,
Hz 		Overload capacity,
% per 1 min 		Dimensions
(W x H x D), mm 		Weight,
kg 		Price
FVR0.4AS1S-7E 200 (1ph) 0,4 2.5 - IP20 0,1-400 150 68x128x116 0,6 € 168,00
FVR0.75AS1S-7E 200 (1ph) 0,75 4.2 - IP20 0,1-400 150 68x128x116 0,6 € 172,00
FVR1.5AS1S-7E 200 (1ph) 1,5 7.5 - IP20 0,1-400 150 108x128x139 1 € 196,00
FVR2.2AS1S-7E 200 (1ph) 2,2 10 - IP20 0,1-400 150 108x128x139 1,1 € 203,00

Fuji Electric FVR-Micro (AS1) compact series (3phase 400 V)
Model Voltage,
V 		Capacity,
kW 		Current,
A 		V/f
mode 		Enclosure
IPXX 		Output frequency,
Hz 		Overload capacity,
% per 1 min 		Dimensions
(W x H x D), mm 		Weight,
kg 		Price
FVR0.4AS1S-4E 400 (3ph) 0,4 1.5 - IP20 0,1-400 150 108x128x139 0,8 on request
FVR0.75AS1S-4E 400 (3ph) 0,75 2.5 - IP20 0,1-400 150 108x128x139 0,9 on request
FVR1.5AS1S-4E 400 (3ph) 1,5 4.2 - IP20 0,1-400 150 108x128x139 1 on request
FVR2.2AS1S-4E 400 (3ph) 2,2 5.5 - IP20 0,1-400 150 108x128x139 1 on request
FVR3.7AS1S-4E 400 (3ph) 3,7 9.0 - IP20 0,1-400 150 140x128x139 1,3 on request
Technical Information and Features

Fuji Electric frequency inverter FVR-Micro (AS1) series the ideal functions to serve a multiplicity of needs for small-capacity inverters

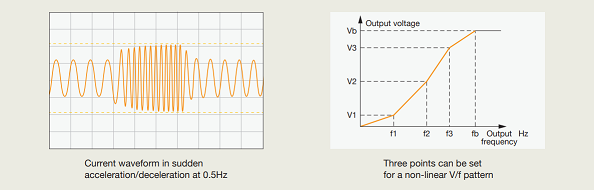

Adoption of control system to minimize motor loss.
Fuji Electric frequency inverter FVR-Micro (AS1) series the ideal functions to serve a multiplicity of needs for small-capacity inverters

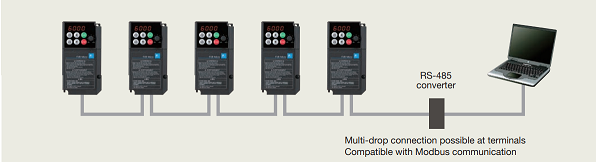

Fuji Electric drive FVR-Micro (AS1) series is equipped with RS-485 as standard

Fuji Electric drive FVR-Micro (AS1) series is equipped with RS-485 as standard

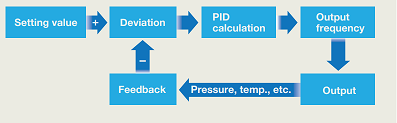

Fuji Electric vfd FVR-Micro (AS1) series is equipped with PID control function

PID control is used to eliminate disparities in actual measurement values and target values for such applications as those involving instrument control employed for fans and pumps, facilitating the control of temperature, flow rate, and pressure with proportional action (P), integral action (I), and derivative action (D).

Fuji Electric vfd FVR-Micro (AS1) series is equipped with PID control function

Fuji Electric inverter FVR-Micro (AS1) series has diverse functionality

- Analog input (0 to 10V/0 to 20mA)
- Analog output (0 to 10V/0 to 20mA)
- Multi-stage frequency (16 stages)
- Jog operation
- Remote/local
