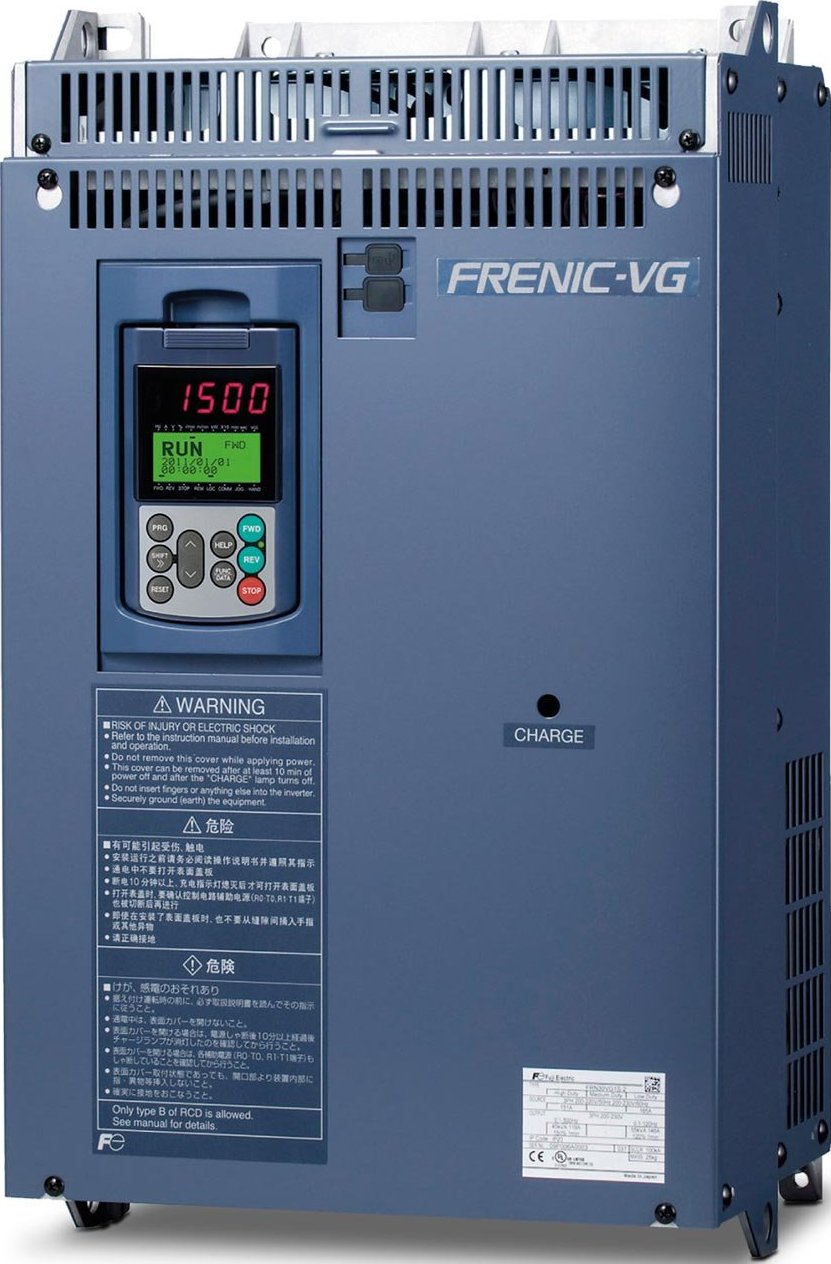

Fuji Electric FRENIC-VG (FRN VG1) versatile frequency inverter series for heavy duty industrial applications
With FRENIC-VG, Fuji Electric has concentrated its technologies to deliver the best-performing inverter on the market. In addition to its basic performance, this model features the following great improvements: support for previously di fficult applications due to technical and capability limitations, easier and more user-friendly maintenance, as well as environmental friendliness and safety. The FRENIC-VG Series now proudly introduces the inverter as a unit type as well as a stack type.

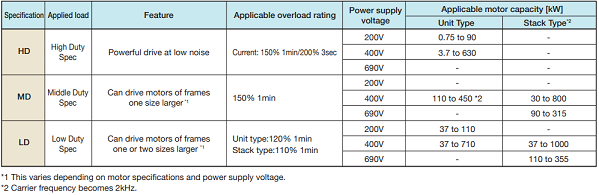

- Powerful: from 0.75 kW to 630 kW in triple rating HD, LD and MD
- Strong: even though in hard environment such as sulfurizing gas, salty environments, dust, humidity, etc.
- Flexible: IM (open and closed loop) and PMSM control
- Torque accuracy: +/- 3%
- Current loop bandwidth: 2000 Hz
- Speed control accuracy: +/- 0,005%
- Speed loop bandwidth: 600 Hz
- Connected to the world: USB on board, typical field buses and Ethernet based field bus
- Mmaking safety easier: STO, SS1, SLS, SBC
- All applications solved: Cranes, rubber, paper, winding, test benches, press, shipboard winch, flying shear, positioning, etc are included
- Adaptable and versatile: 5 slots for adjusting to the requirements, real time built in, FULL PLC on board optional, etc.
Fuji Electric FRENIC-VG series, voltage 200 V (3 phase) light load, overload,% for 1 min. - 120% (Type Unit)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN30VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 37 | 146 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 326,2x550x261,3 | 25 | on request |
| FRN37VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 45 | 180 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 361,2x615x276,3 | 32 | on request |
| FRN45VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 55 | 215 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 361,2x740x276,3 | 42 | on request |
| FRN55VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 75 | 283 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 361,2x740x276,3 | 43 | on request |
| FRN75VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 90 | 346 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 535,8x750x291,3 | 62 | on request |
| FRN90VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 110 | 415 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 686,4x880x366,3 | 105 | on request |
Fuji Electric FRENIC-VG series, voltage 400 V (3 phase) light load, overload,% for 1 min. - 120% (Type Unit)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN30VG1S-4J | 380-480 (3ph) | 37 | 75 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 326,2x550x261,3 | 25 | on request |
| FRN37VG1S-4J | 380-480 (3ph) | 45 | 91 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 326,2x550x261,3 | 26 | on request |
| FRN45VG1S-4J | 380-480 (3ph) | 55 | 112 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 361,2x615x276,3 | 31 | on request |
| FRN55VG1S-4J | 380-480 (3ph) | 75 | 150 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 361,2x675x276,3 | 33 | on request |
| FRN75VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 90 | 176 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 361,2x740x276,3 | 42 | on request |
| FRN90VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 110 | 210 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 536,4x740x321,3 | 62 | on request |
| FRN110VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 132 | 253 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 536,4x740x321,3 | 64 | on request |
| FRN132VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 160 | 304 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 536,4x1000x366,3 | 94 | on request |
| FRN160VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 200 | 377 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 536,4x1000x366,3 | 98 | on request |
| FRN200VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 220 | 415 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 686,4x1000x366,3 | 129 | on request |
| FRN220VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 280 | 520 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 686,4x1000x366,3 | 140 | on request |
| FRN280VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 355 | 650 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 686,4x1400x445,5 | 245 | on request |
| FRN315VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 400 | 740 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 686,4x1400x445,5 | 245 | on request |
| FRN355VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 450 | 840 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 886,4x1400x446,3 | 330 | on request |
| FRN400VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 500 | 960 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 886,4x1400x446,3 | 330 | on request |
| FRN500VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 630 | 1170 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 1006x1550x505,9 | 555 | on request |
| FRN630VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 710 | 1370 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 120 | 1006x1550x505,9 | 555 | on request |
Fuji Electric FRENIC-VG series, voltage 400 V (3 phase) average load, overload,% for 1 min. - 150% (Type Unit)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN90VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 110 | 210 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x740x321,3 | 62 | on request |
| FRN110VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 132 | 253 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x740x321,3 | 64 | on request |
| FRN132VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 160 | 304 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x1000x366,3 | 94 | on request |
| FRN160VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 200 | 377 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x1000x366,3 | 98 | on request |
| FRN200VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 220 | 415 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1000x366,3 | 129 | on request |
| FRN220VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 250 | 468 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1000x366,3 | 140 | on request |
| FRN280VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 315 | 585 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1400x445,5 | 245 | on request |
| FRN315VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 355 | 650 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1400x445,5 | 245 | on request |
| FRN355VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 400 | 740 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 886,4x1400x446,3 | 330 | on request |
| FRN400VG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 450 | 840 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 886,4x1400x446,3 | 330 | on request |
Fuji Electric FRENIC-VG series, voltage 400 V (3 phase) average load, overload,% for 1 min. - 150% (Type Stack)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN30SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 30 | 60 | + | IP00 open type | 0,1-400 | 150 | 226,2x740x406,3 | 28 | on request |
| FRN37SVG1S-4J | 380-440/50 Гц или 380-480/60 Гц (3ph) | 37 | 75 | + | IP 00 открытый тип | 0,1-400 | 150 | 226,2x740x406,3 | 28 | on request |
| FRN45SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 45 | 91 | + | IP00 open type | 0,1-400 | 150 | 226,2x740x406,3 | 28 | on request |
| FRN55SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 55 | 112 | + | IP00 open type | 0,1-400 | 150 | 226,2x880x406,3 | 35 | on request |
| FRN75SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 75 | 150 | + | IP00 open type | 0,1-400 | 150 | 226,2x880x406,3 | 35 | on request |
| FRN90SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 90 | 176 | + | IP00 open type | 0,1-400 | 150 | 226,2x880x406,3 | 43 | on request |
| FRN110SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 110 | 210 | + | IP00 open type | 0,1-400 | 150 | 226,2x880x406,3 | 43 | on request |
| FRN132SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 132 | 253 | + | IP00 open type | 0,1-400 | 150 | 226,2x1100x567,3 | 85 | on request |
| FRN160SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 160 | 304 | + | IP00 open type | 0,1-400 | 150 | 226,2x1100x567,3 | 85 | on request |
| FRN200SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 200 | 377 | + | IP00 open type | 0,1-400 | 150 | 226,2x1100x567,3 | 85 | on request |
| FRN220SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 220 | 415 | + | IP00 open type | 0,1-400 | 150 | 226,2x1400x567,3 | 126 | on request |
| FRN250SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 250 | 468 | + | IP00 open type | 0,1-400 | 150 | 226,2x1400x567,3 | 126 | on request |
| FRN280SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 280 | 520 | + | IP00 open type | 0,1-400 | 150 | 226,2x1400x567,3 | 126 | on request |
| FRN315SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 315 | 585 | + | IP00 open type | 0,1-400 | 150 | 226,2x1400x567,3 | 126 | on request |
| FRN630BVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 630 | 1170 | + | IP00 open type | 0,1-400 | 150 | 3*(226,2x1400x567,3) | 126*3 | on request |
| FRN710BVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 710 | 1370 | + | IP00 open type | 0,1-400 | 150 | 3*(226,2x1400x567,3) | 126*3 | on request |
| FRN800BVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 800 | 1480 | + | IP00 open type | 0,1-400 | 150 | 3*(226,2x1400x567,3) | 126*3 | on request |
Fuji Electric FRENIC-VG series, voltage 400 V (3 phase) average load, overload,% for 1 min. - 110% (Type Stack)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN30SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 37 | 75 | + | IP00 open type | 0,1-400 | 110 | 226,2x740x406,3 | 28 | on request |
| FRN37SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 45 | 91 | + | IP00 open type | 0,1-400 | 110 | 226,2x740x406,3 | 28 | on request |
| FRN45SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 55 | 112 | + | IP00 open type | 0,1-400 | 110 | 226,2x740x406,3 | 28 | on request |
| FRN55SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 75 | 150 | + | IP00 open type | 0,1-400 | 110 | 226,2x880x406,3 | 35 | on request |
| FRN75SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 90 | 176 | + | IP00 open type | 0,1-400 | 110 | 226,2x880x406,3 | 35 | on request |
| FRN90SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 110 | 210 | + | IP00 open type | 0,1-400 | 110 | 226,2x880x406,3 | 43 | on request |
| FRN110SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 132 | 253 | + | IP00 open type | 0,1-400 | 110 | 226,2x880x406,3 | 43 | on request |
| FRN132SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 160 | 304 | + | IP00 open type | 0,1-400 | 110 | 226,2x1100x567,3 | 85 | on request |
| FRN160SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 200 | 377 | + | IP00 open type | 0,1-400 | 110 | 226,2x1100x567,3 | 85 | on request |
| FRN200SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 220 | 415 | + | IP00 open type | 0,1-400 | 110 | 226,2x1100x567,3 | 85 | on request |
| FRN220SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 250 | 468 | + | IP00 open type | 0,1-400 | 110 | 226,2x1400x567,3 | 126 | on request |
| FRN250SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 280 | 520 | + | IP00 open type | 0,1-400 | 110 | 226,2x1400x567,3 | 126 | on request |
| FRN280SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 315 | 585 | + | IP00 open type | 0,1-400 | 110 | 226,2x1400x567,3 | 126 | on request |
| FRN315SVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 355 | 650 | + | IP00 open type | 0,1-400 | 110 | 226,2x1400x567,3 | 126 | on request |
| FRN630BVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 710 | 1370 | + | IP00 open type | 0,1-400 | 110 | 3*(226,2x1400x567,3) | 126*3 | on request |
| FRN710BVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 800 | 1480 | + | IP00 open type | 0,1-400 | 110 | 3*(226,2x1400x567,3) | 126*3 | on request |
| FRN800BVG1S-4J | 380-440/50 Hz or 380-480/60 Hz (3ph) | 1000 | 1850 | + | IP00 open type | 0,1-400 | 110 | 3*(226,2x1400x567,3) | 126*3 | on request |
Fuji Electric FRENIC-VG series, voltage 200 V (3 phase) heavy load, overload,% for 1 min. - 150% (Type Unit)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN0.75VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 0,75 | 5 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN1.5VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 1,5 | 8 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN2.2VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 2,2 | 11 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN3.7VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 3,7 | 18 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN5.5VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 5,5 | 27 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN7.5VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 7,5 | 37 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN11VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 11 | 49 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN15VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 15 | 63 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN18.5VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 18,5 | 76 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN22VG1S-2J | 200-230 50 Hz /60 Hz (3ph) | 22 | 90 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 12 | on request |
| FRN30VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 30 | 119 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 326,2x550x261,3 | 25 | on request |
| FRN37VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 37 | 146 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 361,2x615x276,3 | 32 | on request |
| FRN45VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 45 | 180 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 361,2x740x276,3 | 42 | on request |
| FRN55VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 55 | 215 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 361,2x740x276,3 | 43 | on request |
| FRN75VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 75 | 283 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 535,8x750x291,3 | 62 | on request |
| FRN90VG1S-2J | 200-220/50 Hz or 200-230/60 Hz (3ph) | 90 | 346 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x880x366,3 | 105 | on request |
Fuji Electric FRENIC-VG series, voltage 400 V (3 phase) heavy load, overload,% for 1 min. - 150% (Type Unit)
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN3.7VG1S-4J | 380-480 50 Hz/60 Hz (3ph) | 3,7 | 9 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN5.5VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 5,5 | 13.5 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN7.5VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 7,5 | 18.5 | + | IP20 closed type | 0,1-400 | 150 | 205x300x245 | 6,2 | on request |
| FRN11VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 11 | 24.5 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN15VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 15 | 32 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN18.5VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 18,5 | 39 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN22VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 22 | 45 | + | IP20 closed type | 0,1-400 | 150 | 250x400x245 | 11 | on request |
| FRN30VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 30 | 60 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 326,2x550x261,3 | 25 | on request |
| FRN37VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 37 | 75 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 326,2x550x261,3 | 26 | on request |
| FRN45VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 45 | 91 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 361,2x615x276,3 | 31 | on request |
| FRN55VG1S-4E | 380-480 50 Hz/60 Hz (3ph) | 55 | 112 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 361,2x675x276,3 | 33 | on request |
| FRN75VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 75 | 150 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 361,2x740x276,3 | 42 | on request |
| FRN110VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 110 / 132 | 210 / 253 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x740x321,3 | 64 | on request |
| FRN132VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 132 / 160 | 253 / 304 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x1000x366,3 | 94 | on request |
| FRN160VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 160 / 200 | 304 / 377 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x1000x366,3 | 98 | on request |
| FRN200VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 200 / 220 | 377 / 415 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1000x366,3 | 129 | on request |
| FRN220VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 220 / 250 | 415 / 468 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1000x366,3 | 140 | on request |
| FRN280VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 280 / 315 | 520 / 585 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1400x445,5 | 245 | on request |
| FRN315VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 315 / 355 | 585 / 650 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 686,4x1400x445,5 | 245 | on request |
| FRN355VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 355 / 400 | 650 / 740 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 886,4x1400x446,3 | 330 | on request |
| FRN400VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 400 / 450 | 740 / 840 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 886,4x1400x446,3 | 330 | on request |
| FRN500VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 500 | 960 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 1006x1550x505,9 | 555 | on request |
| FRN90VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 90 / 110 | 176 / 210 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 536,4x740x321,3 | 62 | on request |
| FRN630VG1S-4E | 380-440/50 Hz or 380-480/60 Hz (3ph) | 630 | 1170 | + | IP00 open type (IP20 closed type option) | 0,1-400 | 150 | 1006x1550x505,9 | 555 | on request |
Technical Information and Features
Fuji Electric drive FRENIC-VG series product introduction
Achieved speed response of 600 Hz
(Tested with a dedicated motor with PG under vector control with speed sensor: about six times greater than our conventional model)
Fuji Electric vfd FRENIC-VG series Follow-up characteristics under impact load
Uneven rotation reduced by one-third
* Compared with our conventional models
Fuji Electric vfd FRENIC-VG series speed and torque characteristics
Under vector control with sensor
A Wide Range of Applications
The operation mode for the motor is selected according to motor load condition. Motors larger by one or two frames can be driven with medium load (MD) and light load (LD) use.
Fuji Electric frequency inverter FRENIC-VG series standard built-in brake circuit with expanded capacity range
Having a standard built-in brake circuit (with 200V 55kW or less and 400V 160KW or less), is useful when applying the inverter to the vertical transfer machine, which is frequently used under the regenerative load.* Unit type only
High-speed, high-accuracy position control realized (servo function)
- Built-in position control function as standard with pulse train input (A separate option (OPC-VG1-PG(PR)) is required for pulse train input.)- High-speed, high-accuracy position control is possible in combination with an E-SX bus and 17-bit high-resolution ABS encoder. (The servo function is supported with a dedicated type.) (Soon to be supported)
A wide range of Fuji Electric drive FRENIC-VG series options
- Providing options supporting various interfaces such as high-speed serial communications- Options can be used by just inserting them into the connectors inside the inverter. Up to four cards can be mounted.
Support for ultrahigh-speed E-SX bus
A PLC (MICREX-SX Series: SPH3000MM) and FRENIC-VG can be connected with the ultrahigh-speed communication E-SX bus. With ultrahigh-speed communication, support is possible for even faster, more accurate devices.
