PETER Electronic, VersiStart II (3,5A~16A) series soft starters

send
PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

  • Two-phase controlled soft starter
  • Controlled by microcontroller
  • Optimized soft start
  • Current and torque reduction during acceleration
  • Easy mounting, for snap-mounting on 35mm standard rail
  • Integrated bypass relay
  • Parameterization by means of three potentiometers
  • No additional control voltage required
  • No mains neutral conductor (N) required
  • Economically priced substitute for star-delta starters
  • Compact design, 45mm
  • Degree of protection IP20
PETER ELECTRONIC, VERSISTART II (3,5A~16A) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
 Motor rating, kW
 Control supply voltage, V    Max. switching frequency
  Starting time, sec
  Starting voltage
 Stopping time, sec
 Weight / kg
 Price
VS II 400-3,5      3.5A 400V  1,5kW
 24V ± 10% DC
 150/h
 0,5 … 10s
40 … 80%
 0,25 ... 10s 0,4kg 189 €
VS II 400-6,5      6.5A 400V  3kW 24V ± 10% DC
 70/h 0,5 … 10s 40 … 80% 0,25 ... 10s 0,4kg
 196 €
VS II 400-12      12A 400V  5,5kW 24V ± 10% DC
 30/h 0,5 … 10s 40 … 80% 0,25 ... 10s 0,4kg
 211 €
VS II 400-16      16A 400V  7,5kW 24V ± 10% DC
 15/h 0,5 … 10s 40 … 80% 0,25 ... 10s 0,4kg
 223 €

Technical Information and Features

PETER ELECTRONIC, VERSISTART II (3,5A~16A) typical applications and functions.

- Door and gate drives
- Pumps, ventilators, fans
- Conveying machines, packaging machines
- Transport systems, assembly lines
- Machine applications

- Soft acceleration and deceleration
- Potential-free control input for soft acceleration and deceleration
- 3 separately adjustable parameters accel. time, start voltage, decel. time
- Boost-start selectable
- Potential-free relay output for operating state - unit bypassed — and failure (optional)

Peter Electronic Versistart II options (upon request).

- Special voltages 230V and 480V
- Wide voltage range 200-480V with external control supply voltage US 24VDC (B)
- Signalling contact (I) bypass and failure
- Motor-PTC (I)
- Current control (standard at VS II 400-16) (I)
- Heat sink temperature monitoring (I)
- √3 — connection (cost saving via smaller rating)
- Signalling contact (M) (beginning of acceleration until end of deceleration)

PETER ELECTRONIC, VERSISTART II (3,5A~16A) SERIES SOFT STARTERS.

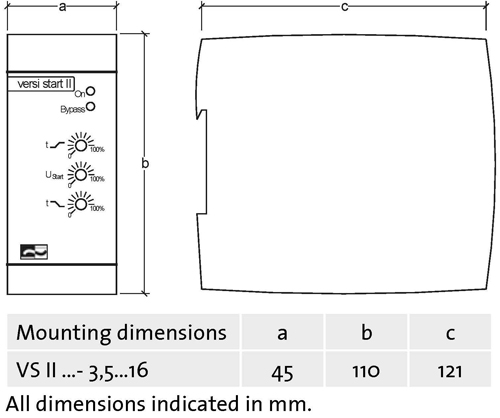

Dimensions:

PETER ELECTRONIC, VERSISTART II (3,5A~16A) TYPICAL APPLICATIONS AND FUNCTIONS.


- Min. motor load.
20% of the device rated current.
- Acceleration.
Voltage ramp.
- Restart time.
300ms.
- Input resistance control inputs.
10kOhm.
- Contact rating of relay outputs RA1/RA2.
2A / 250VAC / 30VDC.
- Installation class.
4.
- Overvoltage category / pollution degree:
control and auxiliary circuit - II / 2
main circuit -  III (TT / TN-systems) / 2
- Rated impulse strength Uimp:
control and auxiliary circuit - 2,5kV
main circuit - 4kV.
- Rated insulation voltage Ui :
main circuit control 500V
auxiliary circuit 250V.
- Cross-sectional arey for connection (max.):
control terminals - 1,5mm² / AWG 16
power terminals - 2,5mm²/ AWG 14
- Tightening torque (max.):
control terminals - 0,6 Nm / 5 lbs in
main circuit - 0,6 Nm / 5 lbs in
- Ambient / storage temperature.
0°C ... 45°C up to an altitude of 1000m / -25°C ... 70°C.
- Weight / kg.
0,4kg

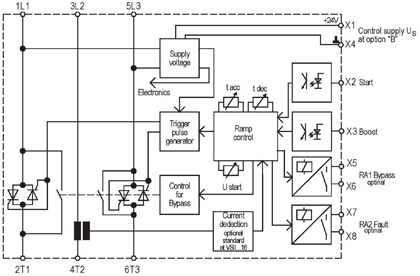

Connection Diagram:

PETER ELECTRONIC VERSISTART II OPTIONS (UPON REQUEST).
