PETER Electronic, VersiStart II (17~45A) series soft starters

send
PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

  • Two-phase controlled soft starter
  • Controlled by microcontroller
  • Optimized soft start
  • Connection in the motor delta winding (cost saving via smaller rating)
  • Current and torque reduction during acceleration
  • Easy mounting, for snap-mounting on 35mm standard rail
  • Integrated bypass relay
  • Parameterization by means of three potentiometers
  • No additional control voltage required
  • No mains neutral conductor (N) required
  • Economically priced substitute for star-delta starters
  • Plug-in power terminals
PETER ELECTRONIC, VERSISTART II (3,5A~16A) SERIES SOFT STARTERS.
Model   Rated current, A   Rated  voltage, V
 Motor rating, kW
 Control supply voltage, V    Max. switching frequency
  Starting time, sec
  Starting voltage
 Stopping time, sec
 Weight / kg
 Price
VS II 400-17      17A 400V  7,5kW
 24V ± 10% DC
 60/h
 0,5 … 10s
40 … 80%
 0,5 ... 10s 1kg 247 €
VS II 400-25      25A 400V  11kW 24V ± 10% DC
 40/h 0,5 … 10s 40 … 80% 0,5 ... 10s 1kg
 260 €
VS II 400-32      32A 400V  15kW 24V ± 10% DC
 30/h 0,5 … 10s 40 … 80% 0,5 ... 10s 1kg
 281 €
VS II 400-45      45A 400V  22kW 24V ± 10% DC
 10/h 0,5 … 10s 40 … 80% 0,5 ... 10s 1kg
 367 €

Technical Information and Features

PETER Electronic, VersiStart II (17~45A) series soft starters

Function:
- Soft acceleration and deceleration
- Potential-free control input for soft acceleration and deceleration
- 3 separately adjustable parameters accel. time, start voltage, decel. time
- Boost-start selectable
- Potential-free relay output for operating state, unit bypassed and failure

Typical Applications:
- Door and gate drives
- Pumps, ventilators, fans
- Conveying systems
- Packaging machines
- Transport systems, assembly lines
- Machine applications

Options (upon request):
- Special voltages 230V and 480V
- Wide voltage range 400-600V with external control supply voltage US 24VDC (B)
- Signaling contact (M) beginning of acceleration until end of deceleration

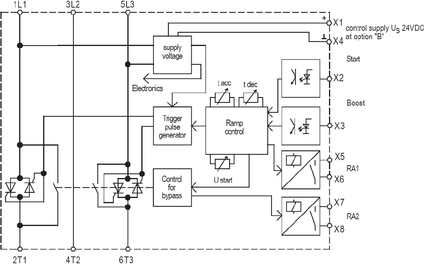

PETER ELECTRONIC, VERSISTART II (17~45A) SERIES SOFT STARTERS

PETER ELECTRONIC, VERSISTART II (17~45A) SERIES SOFT STARTERS standard technical data.

- Mains / Motor voltage according to DIN EN 50160 (IEC 38).
400V ± 10% 50/60Hz.
- Min. motor current.
20% of the device rated current.
- Acceleration time.
0.5 … 10s.
- Start voltage.
40 … 80%.
- Deceleration time.
0.5 … 10s.
- Restart time.
200ms.
- Input resistance Control inputs.
10 kΩ.
- Switching rating of relay output RA1/RA2.
3A/250VAC; 3A/30VDC.
- Overvoltage category / Pollution degree.
III (TT/TN systems) / 2.
- Installation class.
3.
- Surge strength.
4kV.
- Ambient / Storage temperature.
0ºC … 45ºC up to an altitude of 1000m / -25ºC … 70ºC.
- Special voltages (optional).
230V / 480V / wide voltage range 400-600V with external control supply voltage Us 24VDC±10%/150mA.

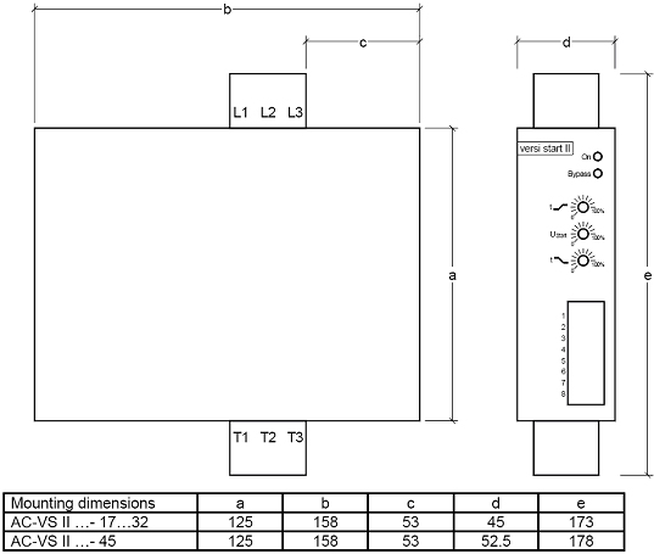

Dimensions:

PETER ELECTRONIC, VERSISTART II (17~45A) SERIES SOFT STARTERS STANDARD TECHNICAL DATA.

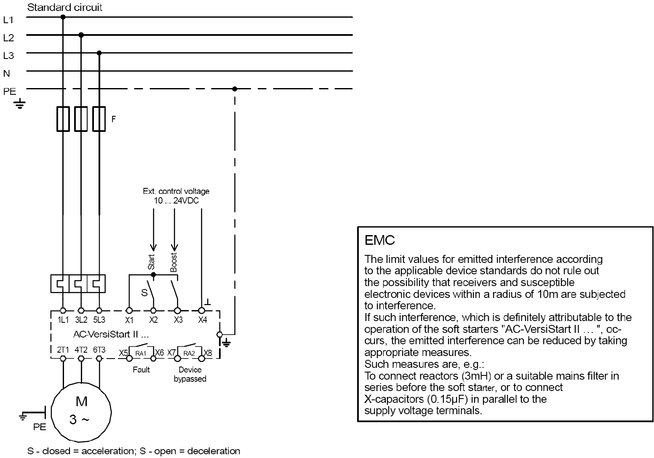

Connection Diagram:

PETER ELECTRONIC, VERSISTART II (17~45A) SERIES STANDARD CIRCUIT
