Home » Soft starters » VERSICOMB II SAFE (12~60A)

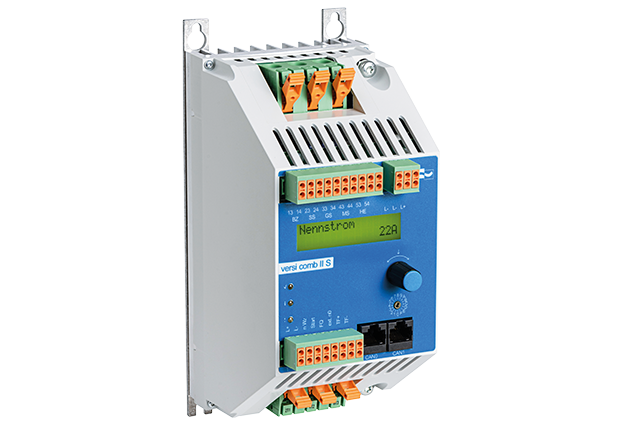

PETER Electronic, VERSICOMB II SAFE (12~60A) soft starters

PETER Electronic systems enable low-wear and gentle starting of your machines and plants by preventing unnecessary, jerky motions and high mechanical stress as well as current peaks otherwise occurring during the start-up of motors.

Two-phase controlled soft start
Integrated by-pass relay
Reduction of starting current peaks
DC braking
Integrated braking contactor
Integrated standstill detection
Monitoring of stopping time
Suitable for all asynchronous motors
Suitable for IE1, IE2 and IE3 motors
Self-optimizing soft start and braking
CANopen on board
Degree of protection IP20
Plugable push-in control terminals
Meets trad assoc. requirements for PL =c, acc. to EN13849-1:2008

PETER ELECTRONIC, VERSICOMB II SAFE (12~60A) SOFT STARTERS.

Model	Rated current, A	Rated voltage, V	Motor rating, kW	Control supply voltage, V	Max. switching frequency	Starting time, sec	Starting voltage	Stopping time, sec	Weight / kg	Price
VC II S 480/575-12	12A	400V	1,5-4kW	24V ± 10% DC	30/h	max. 25s	150...600%	max. 25s	1,45kg	623 €
VC II S 480/575-22	22A	400V	5,5-7,5kW	24V ± 10% DC	30/h	max. 25s	150...600%	max. 25s	1,5kg	671 €
VC II S 480/575-37	37A	400V	11-15kW	24V ± 10% DC	30/h	max. 25s	150...600%	max. 25s	1,55kg	833 €
VC II S 480/575-50	50A	400V	18,5 -22kW	24V ± 10% DC	30/h	max. 25s	150...600%	max. 25s	3,8kg	1094 €
VC II S 480/575-60	60A	400V	25-30kW	24V ± 10% DC	30/h	max. 25s	150...600%	max. 25s	3,9kg	1153 €

Technical Information and Features

PETER Electronic, VERSICOMB II SAFE (12~60A) soft starters

Functions:
- Parameterization via keypad or CAN-Bus
- Motor auto tuning
- Potential-free control inputs and outputs
- TVR or current controlled soft start
- Motor temperature monitoring (PTC, KTY, PT1000)
- Device protection
- Motor protection
- Tool speed monitoring (external speed sensor required)
- Device fault relay (safety relevant)
- Summary fault relay

Typical Applications:
- Centrifuges, saws, milling machines, shakers
- Vibration machines, hydraulic presses
- Industrial dryers, grinding machines
- Edge pressing machines, deburring machines
- Meat grinders, mixers, other

Accessories:
- Adaptor for VC II Safe 12A-37A for mounting onto DIN rail (order nr: 29000.29700)

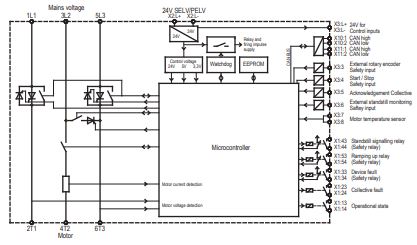

Connection diagram:

PETER ELECTRONIC, VERSICOMB II SAFE (12~60A) SOFT STARTERS TECHNICAL INFORMATION.

- Mains / motor voltage acc. to DIN EN 50160 (IEC 38).
VC II S 480-…: 200…480V ± 10% 50/60Hz
VC II S 575-…: 400…575V ± 10% 50/60Hz
- Starting time.
Self-optimizing (Default = 9s) max. 25s.
- Max. braking tim.
Self-optimizing (Default = 9s) max. 25s.
- Contact loading of output relays.
4A / 250VAC, 4A / 30VDC.
- Max. cross-sectional area for connection.
Control terminals : 1,5mm2
Power teminals :
VC II S 480/575-12, VC II S 480/575-22, VC II S 480/575-37 = push-in terminals 16mm.
VC II S 480/575-50, VC II S 480/575-60 = screw terminals 35mm2.
- Functional safety.
DIN EN 61508 : SIL 1
DIN EN 13849 : PL C
- Ambient / storage temperature.
0°C ... 45°C (de-rating up to 50°C) / -25°C ... 75°C .
- Degree of protection.
IP20.

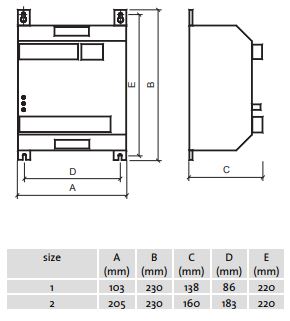

Dimensions:

Size 1 : VC II S 480/575-12, VC II S 480/575-22, VC II S 480/575-37
Size 2 : VC II S 480/575-50, VC II S 480/575-60

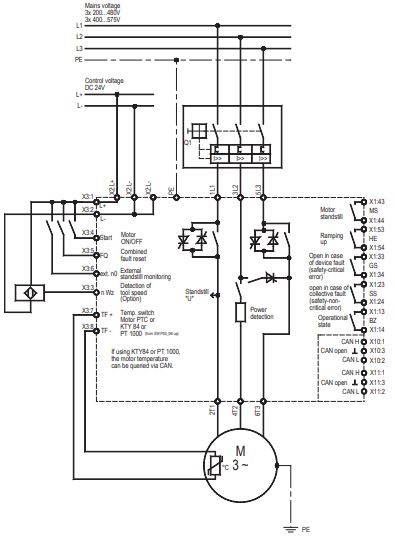

Connection Diagram:
