DOLD Multifunction relays MULTITIMER

DOLD multifunction timer MK 7830N - perfect timing in all situations.

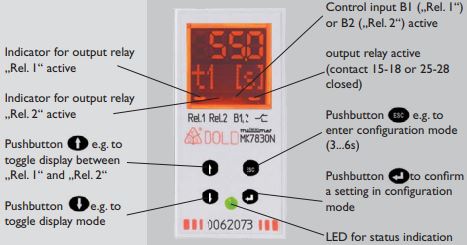

The compact multifunction timer MK 7830N of the MULTITIMER series combines many years of experience together with most modern time control technology. For the first time DOLD combines 2 multifunction timers in an enclosure with only 22.5 mm width. The small enclosure and the variety of functions offer a maximum of possibilities in a minimum of width. This saves space and cost. The multifunction timer with display has 2 output relays that can be configured independently from each other. The most simple and user friendly configuration allows optimised adoption to the application. Functions and time can be set separately in a range from 20 ms to 9999 h. On delay, pulse former, fleeting on make together with fleeting on break are only 3 out of 12 selectable functions. Because of the well designed concept with simple menu driven setting, together with a space saving, compact enclosure, the digital multifunction timer MK 7830N is the ideal timing component for control applications in all industries.

Your advantages:
- 2 independent adjustable multifunction relays in one enclosure
- Minimum width of 22.5 mm saves space and cost
- Highest precision at shortest but also at longest time settings
- Production results are reproducible when used in standard machines
- Simple and user friendly handling
- LCD display is good to read and with high contrast
- Different connection options
- No loss of setting parameters on power failure
- Always the right timer in stock.

DOLD MINITIMER fleeting action relay BC 7931N overview.

- According to IEC/EN 61 812-1
- Fleeting action
- Repeat time adjustable to 100 s
- Repeat accuracy ≤ 0.5 % + 10 ms
- Dual voltage supply
- LED indicator for contact position
- 1 changeover contact
- Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
- Width 22.5 mm

DOLD MINITIMER cyclic timer MK 7854N overview.

- According to IEC/EN 61 812-1
- 8 time ranges from 0.05 s to 300 h selectable via rotational switches
- Impulse and break time separately adjustable
- Selectable start with impulse or break
- Voltage range AC/DC 12 ... 240 V
- Adjustment aid for quick setting of long time values
- Suitable for 2-wire proximity sensor control
- LED indicators for operation, contact position and time delay
- 2 changeover contacts
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
- As option 1 changeover contact instantaneously programmable
- As option connection of 2 remote potentiometers
- As option with time interruption / time adding input
- As option with pluggable terminal blocks for easy exchange of devices with screw terminals or with cage clamp terminals
- 22.5 mm width
