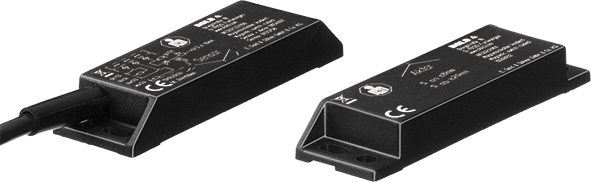

DOLD MAGNETIC SWITCH CODED NE 5021

send

The magnetic switch NE 5021 is suitable to detect the closed state of safety gates, sliding gates and removable covers also under rough ambient conditions or for special hygienic requirements. The magnetic switch can also be used at sluggish or inaccurate positioned doors.

Applications

To be used with:
  • LG 5925/920 control unit.
    Max. 6 NE 5021 and 1 E-stop button in series can be connected.
  • UG 6960 and UG 6961 multifunctional safety timer.
    Max. 10 NE 5021 and 1 E-stop button in series can be connected.
  • UG 6980 multifunctional safety module.
    Max. 10 NE 5021 and 1 E-stop button in series can be connected.
  • UG 6970 multifunctional safety module.
    Max. 10 NE 5021 for each safety function and 1 E-stop button can be connected.
  • BH 5910 multifunctional safety module.
    Max. 2 x 10 NE 5021 and 1 E-stop button can be connected

Downloads

Datasheet NE 5021


MODEL RANGE
Order Code Model Description Sales Price
0054697 NE5021.22/100 MAGNETIC SWITCH CODED € 131,00
Technical Information and Features

Features

  • Usable for safety application by using a correctly installed and connected, security module (e. g. BG 5925/920 or LG 5925/920)
  • According to IEC/EN 60204-1
  • Standard switching distance:
    San ≤ 7 mm
    Sab ≥ 18 mm
  • Max. number of switches in series:
    - 6 NE 5021 on control unit BG 5925/920 or LG 5925/920
    - 10 NE 5021 on multifunctional safety timer UG 6960 and UG 6961
    - 10 NE 5021 on multifunctional safety module UG 6980
    - 20 NE 5021 on multifunctional safety module UG 6970
    - 20 NE 5021 on multifunctional safety module BH 5910
  • 2 NO contacts / 1 NC contact
  • Contacts protected against welding
  • Very long service life
  • Easy to mount and service
  • Manipulation is difficult due to coded sensor
  • Protection class IP 67
