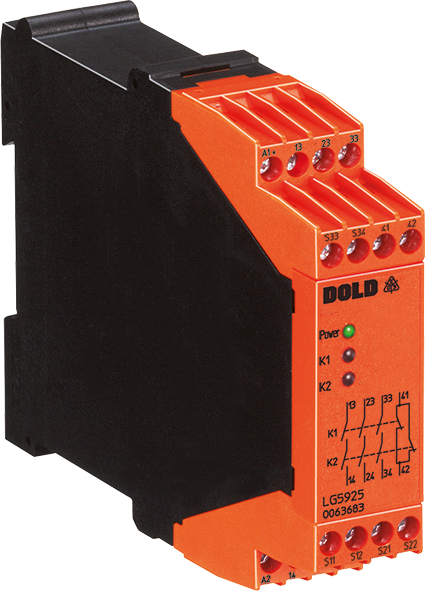

DOLD EMERGENCY STOP MODULE LG 5925/920

Safety module for safety switches LG 5925/920. Usage in furnace application in continuous operation acc. to EN 50156-1.

Applications

MODEL RANGE

Order Code	Model	Description	Sales Price
0067828	LG5925.48PS/920/61 DC24V	EMERGENCY STOP MODULE	€ 285,00

Technical Information and Features

According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
According to EN 50156-2 for furnaces
To connect:
- Safety switch NE 5020
- Safety switch NE 5021
Output: max. 4 NO contacts, see contacts
1- or 2-channel operation
Line fault detection on On-button
Manual restart or automatic restart, switch S2
with or without cross fault monitoring switch S1
LED indicator for channel 1, 2 and supply voltage
Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
As option with plugable terminal blocks for easy exchange of devices - With screw terminals - Or with cage clamp terminals
Width 22.5 mm
