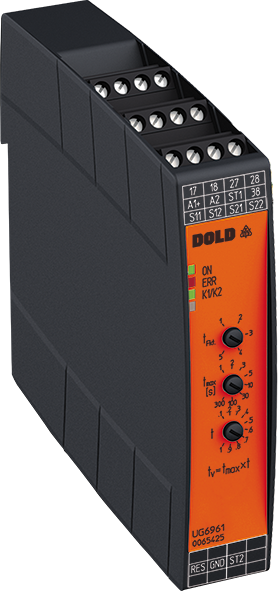

DOLD MULTIFUNCTIONAL SAFETY TIMER UG 6961
The multifunctional safety timer UG 6961 provides protection of men and machines by enabling and disabling a safety circuit. This is done by the adjusted time delay function. Simply select 1 out of 5 delay functions with a rotary switch – ready. The adjusted time is safe over the complete setting range. The UG 6961 is available for different safety functions. It has safe delayed and instantaneous contacts.
Applications
Provide an on-delay or off-delay when a activating a safety function. It can be used to protect people and machines in applications with estop buttons, safety gates, light curtains with selftesting (Type 4) acc. to IEC/EN 61496-1, 2-hand controls for presses as well as other production machinery with dangerous closing action (Type III C to EN ISO 13851) and for safety mats, safety edges and tape switches with a max. switching current of 15 mA.
Downloads
MODEL RANGE
| Order Code | Model | Description | Sales Price | |
|---|---|---|---|---|
| 0066306 | UG6961.02PC/100/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 371,00 | |
| 0067792 | UG6961.02PC/500/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 371,00 | |
| 0069247 | UG6961.02PC/600/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 371,00 | |
| 0067405 | UG6961.02PS/100/61 DC24V 300M | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0065425 | UG6961.02PS/100/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0066391 | UG6961.02PS/400/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0069128 | UG6961.02PS/500/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0066371 | UG6961.02PS/600/61 DC24V 300M | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0066415 | UG6961.02PS/600/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0067816 | UG6961.02PS/800/61 DC24V 300M | MULTIFUNCTIONAL SAFETY TIMER | € 365,00 | |
| 0067838 | UG6961.02PT/100/61 DC24V 300M | MULTIFUNCTIONAL SAFETY TIMER | € 397,00 | |
| 0068705 | UG6961.02PT/100/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 397,00 | |
| 0068785 | UG6961.02PT/300/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 397,00 | |
| 0068786 | UG6961.02PT/400/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 397,00 | |
| 0067704 | UG6961.04PC/100/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 435,00 | |
| 0068457 | UG6961.04PS/100/61 DC24V 300M | MULTIFUNCTIONAL SAFETY TIMER | € 429,00 | |
| 0066791 | UG6961.04PS/100/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 429,00 | |
| 0067793 | UG6961.04PS/200/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 429,00 | |
| 0066393 | UG6961.04PS/600/61 DC24V 300M | MULTIFUNCTIONAL SAFETY TIMER | € 429,00 | |
| 0067808 | UG6961.04PS/600/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 429,00 | |
| 0067703 | UG6961.04PT/100/61 DC24V 300S | MULTIFUNCTIONAL SAFETY TIMER | € 470,00 | |
Technical Information and Features
Advantages
- Various delay functions adjustable at device:
- Release delay
- Release delay retriggerable
- On delay
- Fleeting on make / break
- Delay function settable via potentiometer - Various safety functions defined:
- E-Stop
- Safety gate
- Two-hand control
- Safety mat / Safety edge
- Exclusive or contacts
- Light curtain - Manual or auto start
- Protection against manipulation by sealable transparent cover
Features
- According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511 - Acc. to EN 50156-1 for furnaces
- Line fault detection on On-button:
- Manual restart or automatic restart
- With or without cross fault monitoring
- 2-channel
- Forcibly guided output contacts
- Output: max. 4 NO instantaneous semiconductor monitoring output
- LED indicator for operation, delay contects and failure
- As option with pluggable terminal blocks for easy exchange of devices
- with screw terminals
- or with cage clamp terminals - Width: 22.5 mm
