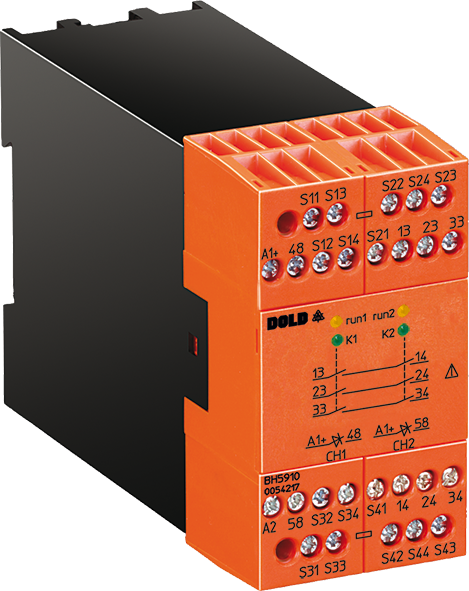

DOLD MULTIFUNCTION SAFETY MODULE BH 5910

SAFEMASTER C Multifunction Safety Module BH 5910.

Applications

Protection of men and machines.

MODEL RANGE

Order Code	Model	Description	Sales Price
0054217	BH5910.03/00MF2/61 DC24V	MULTIFUNCTION SAFETY MODULE	€ 681,00
0064605	BH5910.22/00MF2/61 DC24V	MULTIFUNCTION SAFETY MODULE	€ 694,00

Technical Information and Features

According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL 3) to IEC/EN 61508
Functions selectable via rotational switches to connect max.:
- 8 E-stop circuits, single channel or
- 4 E-stop circuits, 2-channel or
- 4 light curtains or
- 2 light curtains and 1 E-stop circuit or
- 4 safety gates or
- 2 safety gates and 1 E-stop circuit or
- 4 pairs of 2-hand-buttons or Typ III A according to EN ISO 13851 or
- 2 pairs of 2-hand-buttons Typ III C according to EN ISO 13851 and 1 E-stop circuit
In addition selectable:
- Auto or manual reset (simulation input for gate monitor)
- Continuously monitored feedback circuit to monitor external contactors
Cross fault detection
Short circuit and broken wire detection
Outputs:
- 3 NO or 2 NO and 1 NC contacts
- 2 semiconductor outputs short circuit proof and overload protected
Under- and overvoltage detection and signalling
LED indication for operation (RUN), channel 1/2
45 mm width
