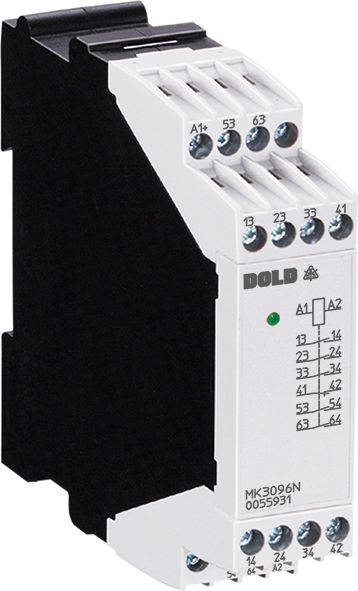

DOLD INTERFACE MODULE MK 3096N

send

The coupling modules LG 3096 and MK 3096N with positively driven contacts are suitable for decoupling control and power levels as well as for contact multiplication also of safety switchgear. Monitoring is possible via a positively driven NC contact.

Applications

    Switching device with the possibility to monitor the contact status via forcibly guided NC contacts.

Downloads

Datasheet MK 3096N


MODEL RANGE
Order Code Model Description Sales Price
0061089 MK3096N.18/100 DC72V INTERFACE MODULE € 165,00
0061686 MK3096N.48 DC110V INTERFACE MODULE € 111,00
0055930 MK3096N.48 DC24V INTERFACE MODULE € 111,00
0056606 MK3096N.48/004 DC24V INTERFACE MODULE € 113,00
0056265 MK3096N.52 DC24V INTERFACE MODULE € 111,00
0055978 MK3096N.52 DC48V INTERFACE MODULE € 111,00
0056256 MK3096N.52/004 DC24V INTERFACE MODULE € 113,00
0055931 MK3096N.60 DC24V INTERFACE MODULE € 117,00
0058502 MK3096N.60 DC48V INTERFACE MODULE € 117,00
0058360 MK3096N.60/100 DC24V INTERFACE MODULE € 165,00
0066388 MK3096N.60PS DC110V INTERFACE MODULE € 126,00
0062156 MK3096N.60PS DC24V INTERFACE MODULE € 126,00
0065157 MK3096N.60PS/100 DC110V INTERFACE MODULE € 174,00
0064253 MK3096N.60PS/100 DC72V INTERFACE MODULE € 174,00
Technical Information and Features

Advantages

  • Max. 6 contacts
  • As option goldplated contacts to switch low loads

Features

  • With forcibly guided contacts according to IEC 61810-3
  • Wire connection: Also 2 x 1.5 mm2 stranded ferruled, or
  • 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
  • As option with pluggable terminal blocks for easy exchange of devices
    - with screw terminals
    - or with cage clamp terminals
  • Width 22.5 mm
