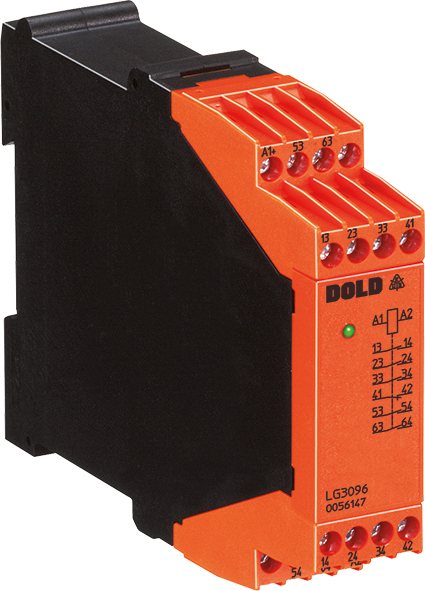

DOLD INTERFACE MODULE LG 3096
The coupling modules LG 3096 and MK 3096N with positively driven contacts are suitable for decoupling control and power levels as well as for contact multiplication also of safety switchgear. Monitoring is possible via a positively driven NC contact.
Applications
- Switching device with the possibility to monitor the contact status via
forcibly guided NC contacts.
Downloads
MODEL RANGE
| Order Code | Model | Description | Sales Price | |
|---|---|---|---|---|
| 0060639 | LG3096.18/300 AC230-240V | INTERFACE MODULE | € 123,00 | |
| 0056145 | LG3096.48 DC24V | INTERFACE MODULE | € 116,00 | |
| 0057474 | LG3096.48/300 AC230-240V | INTERFACE MODULE | € 116,00 | |
| 0058886 | LG3096.48PC DC24V | INTERFACE MODULE | € 131,00 | |
| 0062642 | LG3096.48PC/304 AC230-240V | INTERFACE MODULE | € 136,00 | |
| 0058887 | LG3096.48PS DC24V | INTERFACE MODULE | € 126,00 | |
| 0060489 | LG3096.52 DC110V | INTERFACE MODULE | € 117,00 | |
| 0057475 | LG3096.52 DC24V | INTERFACE MODULE | € 117,00 | |
| 0056146 | LG3096.52 DC48V | INTERFACE MODULE | € 117,00 | |
| 0060739 | LG3096.52/004 DC24V | INTERFACE MODULE | € 123,00 | |
| 0065807 | LG3096.52/300 AC230-240V | INTERFACE MODULE | € 123,00 | |
| 0060740 | LG3096.52/304 AC230-240V | INTERFACE MODULE | € 123,00 | |
| 0059533 | LG3096.52PC DC24V | INTERFACE MODULE | € 131,00 | |
| 0065288 | LG3096.52PC/304 AC230-240V | INTERFACE MODULE | € 137,00 | |
| 0059534 | LG3096.52PS DC24V | INTERFACE MODULE | € 126,00 | |
| 0067109 | LG3096.52PS/004 DC24V | INTERFACE MODULE | € 132,00 | |
| 0067285 | LG3096.52PS/304 AC230-240V | INTERFACE MODULE | € 132,00 | |
| 0062708 | LG3096.54PC/004 DC24V | INTERFACE MODULE | € 137,00 | |
| 0062643 | LG3096.54PC/304 AC230-240V | INTERFACE MODULE | € 137,00 | |
| 0056147 | LG3096.60 DC24V | INTERFACE MODULE | € 123,00 | |
| 0059336 | LG3096.60/001 DC24V | INTERFACE MODULE | € 133,00 | |
| 0061768 | LG3096.60/004 DC24V | INTERFACE MODULE | € 129,00 | |
| 0060994 | LG3096.60/300 AC110-115V | INTERFACE MODULE | € 123,00 | |
| 0057404 | LG3096.60/300 AC230-240V | INTERFACE MODULE | € 123,00 | |
| 0059832 | LG3096.60/304 AC230-240V | INTERFACE MODULE | € 128,00 | |
| 0061170 | LG3096.60/304/60 AC110-115V | INTERFACE MODULE | € 141,00 | |
| 0061171 | LG3096.60/304/60 AC230-240V | INTERFACE MODULE | € 141,00 | |
| 0059535 | LG3096.60PC DC24V | INTERFACE MODULE | € 137,00 | |
| 0062395 | LG3096.60PC/004 DC24V | INTERFACE MODULE | € 143,00 | |
| 0062763 | LG3096.60PC/004 DC48V | INTERFACE MODULE | € 143,00 | |
| 0062811 | LG3096.60PC/304 AC230-240V | INTERFACE MODULE | € 143,00 | |
| 0059536 | LG3096.60PS DC24V | INTERFACE MODULE | € 132,00 | |
| 0063468 | LG3096.60PS/300 AC230-240V | INTERFACE MODULE | € 132,00 | |
Technical Information and Features
Advantages
- Max. 6 contacts
- As option goldplated contacts to switch low loads
Features
- With forcibly guided contacts according to IEC 61810-3
- Wire connection: Also 2 x 1.5 mm2 stranded ferruled, or
- 2 x 2.5 mm2 solid DIN 46228-1/-2/-3/-4
- As option with pluggable terminal blocks for easy exchange of devices
- with screw terminals
- or with cage clamp terminals - Width 22.5 mm
