Home » Relays and monitoring devices » Dold safety devices » Extension / delay time / interface modules » BH 7925

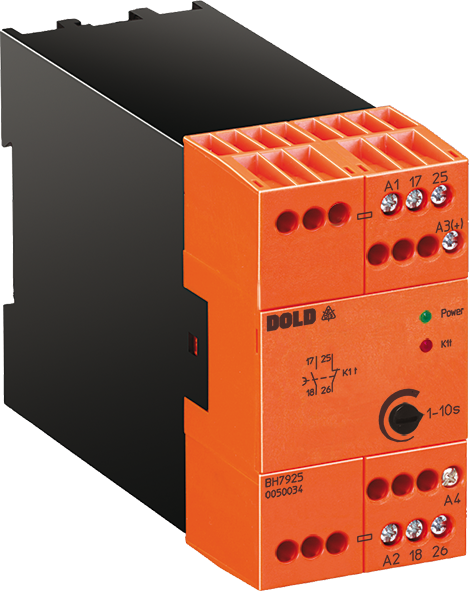

DODL DELAY MODULE BH 7925

send

SAFEMASTER Delay module, release delayed.

Applications

    Delayed switch-off in safety-control circuits, stop-category 1 according to IEC/EN 60 204-1.

Downloads

Datasheet BH 7925


MODEL RANGE
Order Code Model Description Sales Price
0054421 BH7925.21/100 AC/DC24V+AC230V ,3-3S DELAY MODULE € 281,00
0053999 BH7925.21/100 AC/DC24V+AC230V ,5-5S DELAY MODULE € 281,00
0050034 BH7925.21/100 AC/DC24V+AC230V 1-10S DELAY MODULE € 281,00
0063292 BH7925.21/101 AC/DC24V+AC230V 3S DELAY MODULE € 281,00
0058171 BH7925.21/102 AC/DC24V+AC110V ,1-1S DELAY MODULE € 334,00
0053245 BH7925.21/102 AC/DC24V+AC115V ,5-5S DELAY MODULE € 334,00
0054171 BH7925.21/102 AC/DC24V+AC230V ,3-3S DELAY MODULE € 334,00
0053502 BH7925.21/102 AC/DC24V+AC230V ,5-5S DELAY MODULE € 334,00
0057363 BH7925.96 AC/DC24V+AC230V 0,3-3S DELAY MODULE € 289,00
0059929 BH7925.96 AC/DC24V+AC230V 10-100S DELAY MODULE € 289,00
0049949 BH7925.96 AC/DC24V+AC230V 1-10S DELAY MODULE € 289,00
0061032 BH7925.96 AC/DC24V+AC230V 30-300S DELAY MODULE € 289,00
0054586 BH7925.96 AC/DC24V+AC230V 3-30M DELAY MODULE € 289,00
0058927 BH7925.96 AC/DC24V+AC230V 3-30S DELAY MODULE € 289,00
0055844 BH7925.96/002 AC/DC24V+AC115V 1-10S DELAY MODULE € 342,00
0051418 BH7925.96/002 AC/DC24V+AC230V ,1-1S DELAY MODULE € 342,00
0060511 BH7925.96/002 AC/DC24V+AC230V ,3-3S DELAY MODULE € 342,00
0052801 BH7925.96/002 AC/DC24V+AC230V ,5-5S DELAY MODULE € 342,00
0049937 BH7925.96/002 AC/DC24V+AC230V 1-10S DELAY MODULE € 342,00
0054705 BH7925.96/002 AC/DC24V+AC230V 3-30M DELAY MODULE € 342,00
0056239 BH7925.96/002 AC/DC24V+AC230V 3-30S DELAY MODULE € 342,00
0054219 BH7925.96/002 ACDC24+AC230V 30-300S DELAY MODULE € 342,00
0051923 BH7925.96/002 ACDC24+AC230V 5-100S DELAY MODULE € 342,00
0053877 BH7925.96/003 AC/DC24V+AC230V 30S DELAY MODULE € 342,00
0060654 BH7925.96/100 AC/DC24V+AC230V ,1-1S DELAY MODULE € 303,00
0059596 BH7925.96/100 AC/DC24V+AC230V ,3-3S DELAY MODULE € 303,00
0058546 BH7925.96/100 AC/DC24V+AC230V ,5-5S DELAY MODULE € 303,00
0054081 BH7925.96/100 AC/DC24V+AC230V 1-10S DELAY MODULE € 303,00
0064923 BH7925.96/101 AC/DC24V+AC230V 1S DELAY MODULE € 303,00
0054508 BH7925.96/101 AC/DC24V+AC230V 5S DELAY MODULE € 303,00
0055610 BH7925.96/102 AC/DC24V 0,1-1S DELAY MODULE € 355,00
0054657 BH7925.96/102 AC/DC24V 0,5-5S DELAY MODULE € 355,00
0055627 BH7925.96/102 AC/DC24V+AC230V ,1-1S DELAY MODULE € 355,00
0055495 BH7925.96/102 AC/DC24V+AC230V ,3-3S DELAY MODULE € 355,00
0055559 BH7925.96/102 AC/DC24V+AC230V ,5-5S DELAY MODULE € 355,00
Technical Information and Features

Features

  • Can be used in conjunction with a suitable switchgear / control unit in safety applications as follows:
    - Up to PL d and category 2 according to EN ISO 13849-1
    - Up to SIL 2 according to EN 61508 and EN 61511
  • Variants /_ _2 and /_ _ 3 can be used in conjunction with a suitable switchgear / control unit in safety applications as follows:
    - Up to PL d and category 3 according to EN ISO 13849-1
    - Up to SIL 2 according to EN 61508 and EN 61511
  • Adjustable time delay
  • Long time stability by digital timing circuit
  • With auxiliary voltage
  • 1 timing circuit
  • BH 7925 in dual voltage version
  • BH 7925 optionally for AC 230 V
  • Output: 1 NC contact, 1 NO contact, forcibly guided or 1 NC contact, 3 NO contacts, forcibly guided
  • Indication of state of operation
  • Removable terminal strips
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
  • Optionally with 2 timing circuits
  • Optionally fixed time delay
  • Optionally without auxiliary voltage on BH 7925
  • Optionally for switching small loads
  • BG 7925: width 22.5 mm
  • BH 7925: width 45 mm
