DOLD Extension modules SAFEMASTER

DOLD Extension / Delay / Interface Modules.

Extension modules:
With extension modules the output contacts of the base modules can be multiplied. It is also possible to strengthen the contacts by dividing it into several control circuits.
Delay modules:
When triggering an emergency stop signal, delayed shutdown may be desired. For example, robots with dangerous movements can be driven into a safe state. The delay modules are available in the versions with release or response delay.
Interface modules:
Interface modules with forcibly guided contacts are used to switch safety-related functions as links between logic and load. The forcibly guided normally closed contacts enable monitoring of the normally open contacts.

Your advantages at a glance with DOLD.

Extension modules:
- Cost-effective contact multiplication universally connectable to the basic modules
- Monitoring of the output contacts via a feedback loop by the respective base module
- Connection of several expansion modules to one basic module
Delay modules:
- Targeted stopping of the drives, thereby reducing the risk of injury
- No loss of productivity, as a targeted restart is made possible
- High long-term stability due to digital time stage
Interface modules
- Particularly safe switching behaviour due to forcibly guided contacts
- Enables standard-compliant implementation of safety-related circuits
- In the event of an error, a new activation is prevented.

DOLD Emergency Stop Module with Time Delay.

Your advantage:
- Compact, flexible and safe
- Short response time
- Ideal for designs according to the new safety standards
Application:
- Protection of people and machines
- Emergency stop circuits on machines, Stop category 1 can be realised
- Monitoring of safety gates
Function diagram:

DOLD interface modules forcibly guided Safemaster.

Features:
- With forcibly guided contacts according to IEC 61810-3
- UG 3096: 8 output contacts, UH 3096: 16 output contacts
- As option with gold plated contacts to switch low loads
- As option with contacts connected in series to switch high DC-loads
- As option with pluggable terminal block for easy exchange of devices - with screw terminals
- UG 3096: Width 22.5 mm, UH 3096: Width 45 mm
Applications:
- Interfacing between control and load circuits
- Contact multiplication and reinforcement
- Separate switching of several current circuits, e. g. with 1) Machines and plants, 2) Energy production and transport.

DOLD interface module characteristics.

DOLD delay modules Safemaster.

Features:
- According to
1) Performance Level (PL) d and category 3 to EN ISO 13849-1
2) SIL Claimed Level (SIL CL) 2 to IEC/EN 62061
3) Safety Integrity Level (SIL) 2 to IEC/EN 61508 and IEC/EN 61511 when connected to a suitable safety module
- Adjustable time delay
- As option fixed time delay
- High long life stability due to digital time base
- Adjustable with or without cross fault detection
- Output: 3 NO contacts + 1 NC contact + 1 forcibly guided
- Feedback contact or 4 NO contacts + 1 forcibly guided feedback contact
- LED indicator for channel 1, 2 and operation voltage
- Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
- As option with pluggable terminal blocks for easy exchange of devices with screw terminals or with cage clamp terminals
- Width 22.5 mm

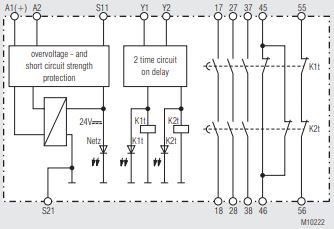

Block diagram:
