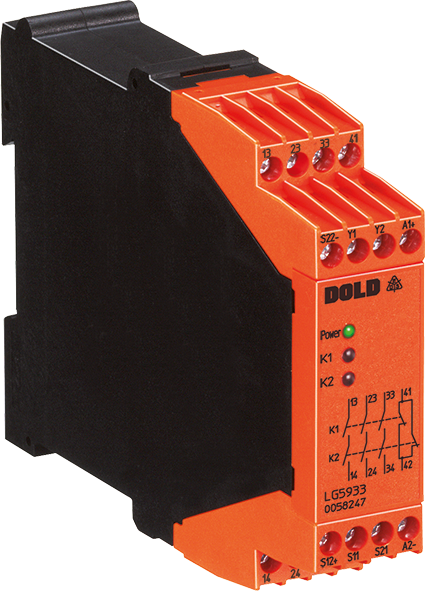

DOLD TWO-HAND SAFETY RELAY LG 5933

The LG 5933 enables and disables a safety circuit in a safe way.

Applications

It is used to protect people and machines in applications with 2-hand buttons on presses for metal products as well as for other production machinery with dangerous closing movements.

Downloads

Datasheet LG 5933

MODEL RANGE

Order Code	Model	Description	Sales Price
0058248	LG5933.48 AC24V	TWO-HAND SAFETY RELAY	€ 298,00
0058247	LG5933.48 DC24V	TWO-HAND SAFETY RELAY	€ 298,00
0058764	LG5933.48PC AC24V	TWO-HAND SAFETY RELAY	€ 313,00
0058650	LG5933.48PC DC24V	TWO-HAND SAFETY RELAY	€ 313,00
0058775	LG5933.48PS AC24V	TWO-HAND SAFETY RELAY	€ 308,00
0058725	LG5933.48PS DC24V	TWO-HAND SAFETY RELAY	€ 308,00

Technical Information and Features

Advantages

Compact, ready to connect 2-hand safety circuit
Cost reduction by replacing conventional contactor circuits
Feedback circuit Y1 - Y2 to monitor external contactors used for reinforcement of contacts
EC-type examinated circuit according to the requirements of the health and safety authorities
As option with pluggable terminal blocks for easy exchange of devices

Features

According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (maximum SIL) 3 to EN IEC 62061
- Safety Integrity Level (SIL) 3 to EN 61508
- Safety level Typ III C to EN ISO 13851
Inputs for 2 push buttons with 1 NC and 1 NO contact
Output: 3 NO contacts, 1 NC contact
Overvoltage and short circuit protection
Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
Removable terminal strips
- LG 5933: Fixed screw terminals
- LG 5933 PS: Plug in screw terminals
- LG 5933 PC: Plug in cage clamp terminals
Width 22.5 mm
