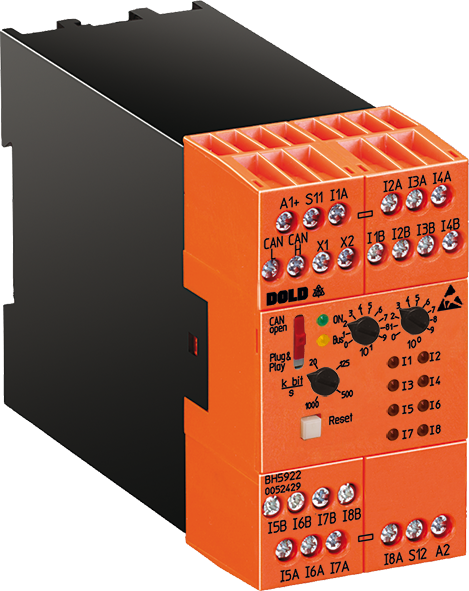

DOLD EMERGENCY STOP MONITOR BH 5922

To monitor max. 16 single-channel e-stop buttons or 8 2-channel e-stop buttons. E-stop button can be connected directly to BH 5922.

Applications

Indication of the status of e-stop buttons in an e-stop chain. We recommend to use the BH 5922 together with DOLD E-stop modules (approval).

MODEL RANGE

Order Code	Model	Description	Sales Price
0052425	BH5922.04/011 DC24V	EMERGENCY STOP MONITOR	€ 418,00
0052426	BH5922.04/012 DC24V	EMERGENCY STOP MONITOR	€ 429,00
0052427	BH5922.08 DC24V	EMERGENCY STOP MONITOR	€ 391,00
0052428	BH5922.08/001 DC24V	EMERGENCY STOP MONITOR	€ 418,00
0052429	BH5922.08/002 DC24V	EMERGENCY STOP MONITOR	€ 429,00
0054643	BH5922.08/003 DC24V	EMERGENCY STOP MONITOR	€ 449,00

Technical Information and Features

To monitor max. 16 single-channel e-stop buttons or 8 2-channel e-stop buttons
E-stop button can be connected directly to BH 5922
Simple wiring of e-stop buttons
Extendable in steps of 8 e.g. 16 inputs
No influence on e-stop system
Adjustable
- with manual reset (without link X1 / X2)
- with automatic reset (with link X1 / X2)
Reset button and remote reset
LED indicators to show the state of the e-stop buttons
As option direct connection of 2-channel e-stop buttons to BH 5922 / BL 5922
As option with BCD output (high or low active) or CANopen
As option with CANopen according to DS301 version 3.0
Width 45 mm
