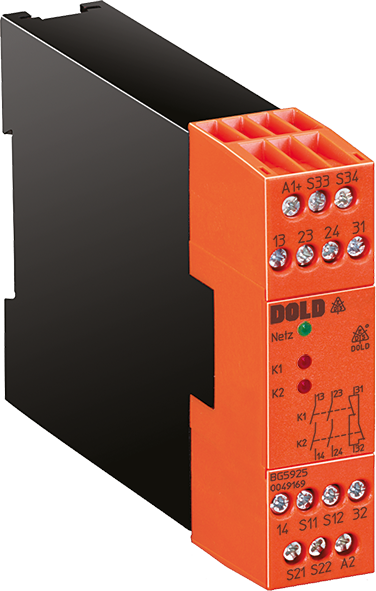

DOLD EMERGENCY STOP MODULE BG 5925

send

According to PL e and category 4 to EN ISO 13849-1, maximum SIL 3 to EN IEC 62061, SIL 3 to EN 61508.

Applications

Protection of people and machines
  • Emergency stop circuits on machines
  • Monitoring of safety gates

Downloads

Datasheet BG 5925


MODEL RANGE
Order Code Model Description Sales Price
0051908 BG5925.02/103/61 DC24V EMERGENCY STOP MODULE € 288,00
0052873 BG5925.02/104/61 DC24V EMERGENCY STOP MODULE € 288,00
0053006 BG5925.02/113/60 DC24V EMERGENCY STOP MODULE € 288,00
0056413 BG5925.02/60 DC24V EMERGENCY STOP MODULE € 301,00
0049170 BG5925.02/61 AC/DC24V EMERGENCY STOP MODULE € 288,00
0047868 BG5925.02/61 DC24V EMERGENCY STOP MODULE € 288,00
0050418 BG5925.03/101/61 DC24V EMERGENCY STOP MODULE € 288,00
0056447 BG5925.03/60 DC24V EMERGENCY STOP MODULE € 301,00
0049169 BG5925.03/61 AC/DC24V EMERGENCY STOP MODULE € 288,00
0048653 BG5925.03/61 DC24V EMERGENCY STOP MODULE € 288,00
0049167 BG5925.16/61 AC/DC24V EMERGENCY STOP MODULE € 288,00
0048654 BG5925.16/61 DC24V EMERGENCY STOP MODULE € 288,00
0049717 BG5925.22/101/61 DC24V EMERGENCY STOP MODULE € 288,00
0050528 BG5925.22/102/61 AC/DC24V EMERGENCY STOP MODULE € 288,00
0060454 BG5925.22/114/60 DC24V EMERGENCY STOP MODULE € 288,00
0056310 BG5925.22/60 AC/DC24V EMERGENCY STOP MODULE € 301,00
0056925 BG5925.22/60 DC24V EMERGENCY STOP MODULE € 301,00
0049168 BG5925.22/61 AC/DC24V EMERGENCY STOP MODULE € 288,00
0048604 BG5925.22/61 DC24V EMERGENCY STOP MODULE € 288,00
Technical Information and Features

Features

  • According to
    - Performance Level (PL) e and category 4 to EN ISO 13849-1
    - SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
    - Safety Integrity Level (SIL) 3 to IEC/EN 61508
  • Output: max. 3 NO contacts, see contacts
  • Single and 2-channel operation
  • Line fault detection on On-button
  • Manual restart or automatic restart, switch S2
  • With or without cross fault monitoring in the E-stop loop, switch S1
  • LED indicator for channel 1 and 2 and Power
  • Removable terminal strips
  • Wire connection: also 2 x 1.5 mm2 stranded ferruled (isolated), DIN 46 228-1/-2/-3/-4 or 2 x 2.5 mm2 stranded ferruled DIN 46 228-1/-2/-3
  • Width 22.5 mm
