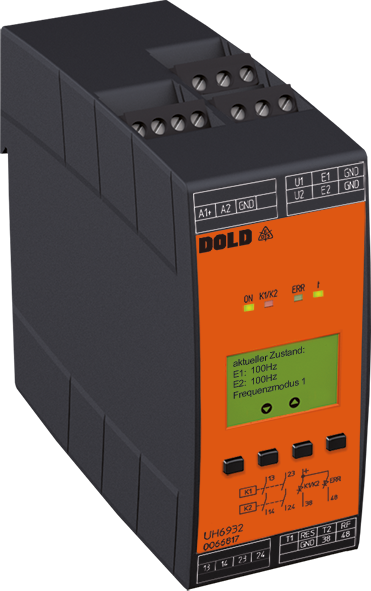

DOLD SPEED MONITOR UH 6932

send

The speed monitor UH 6932 provides safe monitoring of motors and rotating equipment. It is used in machines and plants where machine movements or moving parts can be a danger to men and machine. Using the front side display the parameters can be easily and comfortably adapted to the individual application or changed when necessary.

Applications

This device is designed for machinery and installations where hazards to people and property may be caused by the movement of machines or parts.
With correct connection it is possible to realise with the UH 6932 the safety functions STO (Safe Torque Off), SOS (Safe Operating Stop), SLS (Safely Limited Speed), SSM (Safe Speed Monitor) and SSR (Safe Speed Range) according to EN 61800-5-2. The actual realisation of the safety functions has to be validated in each application of the product for safety aspects.

Downloads

Datasheet UH 6932


MODEL RANGE
Order Code Model Description Sales Price
0066818 UH6932.02PS/001/61 DC24V SPEED MONITOR € 742,00
0066817 UH6932.02PS/010/61 DC24V SPEED MONITOR € 664,00
0066819 UH6932.02PS/011/61 DC24V SPEED MONITOR € 742,00
0066816 UH6932.02PS/61 DC24V SPEED MONITOR € 664,00
Technical Information and Features

Advantages

  • For safety applications up to PL e / Cat. 4 and SIL 3
  • Simple and time saving setup without PC
  • Comfortable, menu guided configuration via frontside display
  • Reducing interruption time in production by extensive diagnostic functions
  • Easy to integrate in existing drive applications
  • Possible languages: English, german, french

Features

  • Corresponds to
    - PL e and category 4 according to EN ISO 13849-1
    - SIL 3 according to EN 61508
  • Can be used in safety applications as follows:
    - Up to maximum SIL 3 according to EN IEC 62061
    - Up to SIL 3 according to EN 61511
  • Overspeed, underspeed or window monitoring
  • Integrated user friendly frontside display
    - Comfortable, menu guided configuration
    - For set point and actual value of Hz
  • Fast reaction time by measuring duration of cycle of input frequency
  • For PNP- or NPN-sensors
  • Adjustable hysteresis
  • Adjustable reset delay function from 0 ... 100 s
  • Adjustable start up time delay from 0 ... 100 s
  • Adjustable alarm delay from 0 ... 100 s
  • Manual or auto-reset
  • 2-channel function
  • Forcibly guided output contacts
  • LED-indicators and 2 semiconductor monitoring output
  • Width 45 mm
  • With pluggable terminal blocks for easy exchange of devices
  • Variant /_ _1:
    - It is possible to set a variety of response parameters by means of a 4 bit selection facility from an overriding control unit;
    - Analog output (2 V to 10 V) corresponding to the current speed;
    - The possibility of overriding the speed by a supervisory function (muting);
    - Adjustable switchover time from 0 ... 100 s
