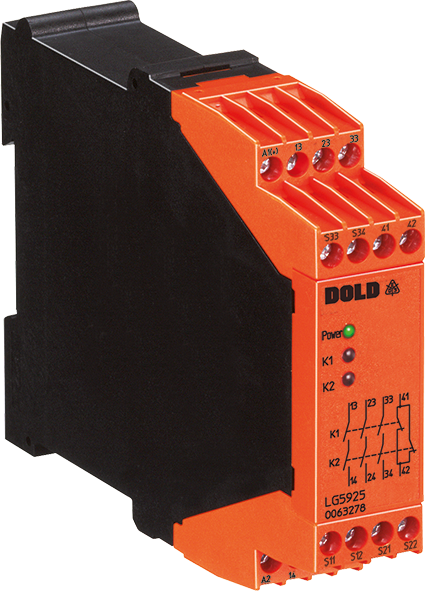

DOLD LIGHT CURTAIN CONTROLLER LG 5925/900

SAFEMASTER Light Curtain Controller LG 5925/900 according to Performance Level (PL) e and category 4 to EN ISO 13849-1, SIL Claimed Level (SIL CL) 3 to IEC/EN 62061, Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511.

Applications

Protection of people and machines
Light curtain controller for light curtains with selftesting (Type 4) according to IEC/EN 61 496-1
Usage in furnace application in continuous operation acc. to EN 50156-1

Downloads

Datasheet LG 5925/900

MODEL RANGE

Order Code	Model	Description	Sales Price
0063278	LG5925.48/900/61 DC24V	LIGHT CURTAIN CONTROLLER	€ 277,00

Technical Information and Features

Features

According to
- Performance Level (PL) e and category 4 to EN ISO 13849-1
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety Integrity Level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
According to EN 50156-2 for furnaces
For light curtains with symmetric or asymmetric outputs adjustment with switch S1
Output: max. 4 NO contacts, see contacts
Single and 2-channel operation
Line fault detection on On-button
Manual restart or automatic restart, switch S2
LED indicator for channel 1, 2 and supply voltage
Removable terminal strips
Wire connection: also 2 x 1.5 mm2 stranded ferruled, or 2 x 2.5 mm2 solid DIN 46 228-1/-2/-3/-4
As option with pluggable terminal blocks for easy exchange of devices

Width 22.5 mm
