DOLD Fault annunciators INFOMASTER, Accessories

DOLD interference suppressors of the INFOMASTER family use lamps, signals or text notifications to inform about interferences and the conditions of electrical systems in industrial settings and buildings. In addition, they are also used to define maintenance intervals for preventive maintenance. Especially in the event of interferences in complex machine and systems, they can decisively reduce the length of the search for interferences. This minimises standstill times of the production system and helps to save on costs. The compact DOLD interference suppressor ensures a cost-efficient monitoring of small machines without SPS, such as compressors. Thanks to it modular construction, it can grow with the system through expansions.

Type	Function	Alarm inputs	Alarm inputs, extendable up to	Operate delay	Operating principle: Energized-on trip (A)/ de- energized-on- trip (R) de repos (R )	Visual indication	Acoustic indication	Special features	Housing style: Width [mm]
EH 9997	Fault annunciator system	6	8		R	LED	Output for horn		Front panel mounting: 96 x 96
AD 5960	Fault annunciator system	12			A		Output for horn	configurable; bus- compatible	Switch cabinet: 45
IL 5990, IL 5991, SL5990, SL 5991	Fault annunciator system	4	160	1; 3; 10 s	A / R	LED	Output for horn	configurable; bus- compatible	Distribution board: 35 Switch cabinet: 35
RP 5990, RP 5991	Fault annunciator system	8	88	0 ... 10 s	A / R	LED		bus- compatible	Distribution board: 70 Switch cabinet: 70
RP 5994, RP 5995	New-value and first-up annunciator system	8	88	0 ... 10 s	A / R	LED		bus- compatible	Distribution board: 70 Switch cabinet: 70
EH 5990, EH 5991	Indications panel for fault annunciator system					LED		bus- compatible	Front panel mountin: 96 x 96
EH 5994, EH 5995	Indications panel for new-value and first-up annunciator					LED		bus- compatible	Front panel mountin: 96 x 96
EH 5996	Text display unit for New-value and first-up annunciator system					LED		bus- compatible	Front panel mountin: 96 x 96
EP 5966, EP 5967	New-value annunciator	16	160	1; 3; 10 s	A / R	LED	Output for horn		Front panel mountin: 72, 144
AD 5998, AD 5992	New-value annunciator	3; 6	303		A	Output for signal lamp	Output for horn		Switch cabinet: 45
RP 5810	GSM-Module busconnection					LED		bus- compatible	Distribution board: 70
RP 5812	SMS-Telecontrol module					LED			Distribution board: 70
IK 8832, SK 8832	Accessories for fault annunciators: Alarm transducer						55 - 80 db		Distribution board: 17.5 Switch cabinet: 17.5
RK 8832	Accessories for fault annunciators: Alarm transducer						60 - 70 db		Distribution board: 17.5 Switch cabinet: 17.5
MK 9994, MK 9995	Accessories for fault annunciators: Lamp tester					LED			Switch cabinet: 22.5

Following products are also available: AI 990, AI 991, AI 992, AI 998, UP 5864

Technical Information and Features

DOLD INFOMASTER SMS alerts you when something changes.

The new SMS Remote Control Module RP 5812 from the DOLD INFOMASTER series allows efficient monitoring and control of machines and systems in industrial and facility automation. The SMS relay can be configured easily and conveniently via mobile phone. Neither a PC nor programming know-how are required for the configuration. Any status change sends a configurable SMS text message to the selected recipients. The status of the inputs and outputs can be queried to determine the current system state. Unauthorised access is prevented through optional password protection. GSM QUAD band technology permits worldwide information exchange. The remote control module is available with digital inputs and outputs and optional analogue inputs/outputs.

Advantages:
- Easy and convenient configuration via mobile phone
- Configurable authorization levels for up to 16 users
- Selective assignment of the inputs and outputs to the users
- SMS status query of all inputs and outputs via definable shortcuts
- Automatic notification by SMS when status changes
- Definable SMS texts
- No operation disruption after power failure through integrated Li-ion battery
- Heartbeat function permits cyclical alerts of the SMS module at definable intervals.
DOLD INFOMASTER SMS alerts you when something changes.

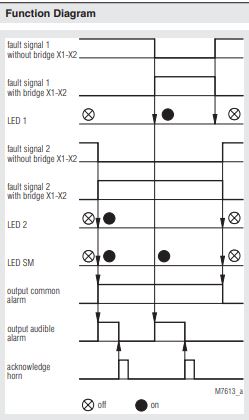

DOLD INFOMASTER Fault Annunciator System IL 5990, IL 5991, SL 5990, SL 5991 overview.

- According to DIN 19235
- Common alarm annunciator
- Expandable from 4 up to 160 inputs
- Open circuit inputs / closed circuit inputs selectable via bridges X1-X2
- Delayed inputs up to 10 s
- Acknowledgement push button QH for external buzzer built in
- Accessories: Buzzer IK 8832, SK 8832
- Devices available in 2 enclosure versions: 1) I-model: depth 61 mm, with terminals at the bottom for installations systems and industrial distribution systems according to DIN 43 880, 2) S-model: depth 100 mm, with terminals at the top for cabinets with mounting plate and cable duct
- Width 35 mm.
DOLDINFOMASTER Fault Annunciator System IL 5990, IL 5991, SL 5990, SL 5991 overview.

Notes.
The terminals A1, inputs S1 - S4 and the acknowledgement input QH have to be connected at the same phase. The NO contacts 13 - 14 , 23 - 24 have to be connected to to the same phase. The bus-circuits H and S have a low voltage and are not allowed to be connected to any external voltage. If inductive or capacitive superimposed voltages are expected from power cables, it is recommended, to use screened cables for these lines. The screen is to be connected to ground. Bridge X1 - X2 = open circuit operation. A different setting of the fault annunciator IL 5990 and the extension unit IL 5991 is possible.

DOLD Buzzer RK 8832 overview.

- Permanent sound, pitch fixed
- Optionally with switchable interval- / permanent sound and 2 pitches settable
- Width: 17.5 mm and depth: 64 mm.
DOLD Buzzer RK 8832 overview.

Applications:
- Audible alarm
- Alarm buzzer in 1- or 2-family houses
