DOLD Time switches MINITIMER

DOLD MINITIMER Staircase Lighting Time Switch RK 8810/100 overview.

- According to EN 60 669-1, EN 60 669-2-1
- Setting range 0.5 ... 10 min.
- For 4-wire circuit L on push button and 3-wire circuit N on push button
- Can be retriggered
- Switch for continuous light on unit
- Contact: 16 A
- Width 17.5 mm.

Applications:
- Staircase lighting time switch
- Timer, release delay
- Follow-up switch

Function:
The timing is retriggerable, i.e. if the push button is pressed again during timing the adjusted delay time starts again without interruption.

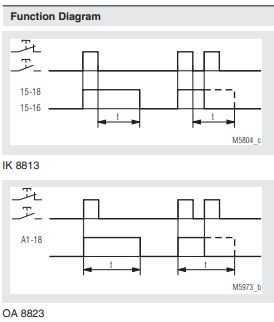

DOLD MINITIMER energy-saving time switch IK 8813 / OA 8823.

- According to EN 60 669-1, EN 60 669-2-1
- Can be switched off before the time expires
- Operating times between 0.5 ... 60 min., as required
- IK 8813 with permanent light switch and LED indicator for contact position
- IK 8813 for installation in rows, width 17.5 mm
- OA 8823 for installation in flush-mounted boxes.

Applications:
Controlled switching-off of lights (such as staircase, courtyard, garden, garage, attic and cellar lights) as well as ventilators, driers and all electronic consumers in general that experience has shown are rarely switched off again immediately after they have been used.

Function:
The energy-saving switches IK 8813 and OA 8823 are controlled by an electronic timing element. While IK 8813 is designed to be mounted on a top hat rail, OA 8823 is suitable for installation in flush-mounted boxes. The operating time can be set using a screwdriver. The switch can be activated via a 3- or 4-wire connection by pressing a pushbutton (only a 4-wire connection in the case of OA 8823). The pushbutton and the equipment concerned have to be connected to the same phase in this context.

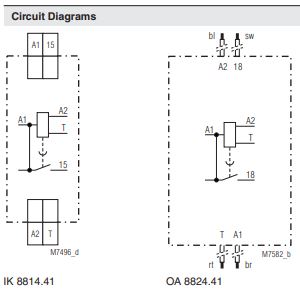

DOLD MINITIMER lighting timing switch IK 8814 / OA 8824.

- According to EN 60 669-1, EN 60 669-2-1
- Reswitching possible
- Operating times between 0.5 ... 60 min., as required
- IK 8814 with permanent light switch and LED indicator for contact position
- IK 8814 for installation in rows, width 17.5 mm, OA 8824 for installation in flush-mounted boxes.

Applications:
- Automatic staircase light switch
- Delayed-release timing relay
- Time-lag switch

Function:
IK 8814 and OA 8824 - that are controlled by a static timing element - can be used as automatic staircase light switches, as delayed-release timing relays or as time-lag switches. While IK 8814 is designed to be mounted on a top hat rail, OA 8824 is suitable for installation in flush-mounted boxes (diameter 60 mm, depth 40 mm). The operating time can be set using a screwdriver. When the unit is being used as an automatic staircase light switch, it is activated via a 3- or 4-wire connection by pressing a pushbutton (only a 4-wire connection in the case of OA 8824). The pushbutton and the equipment concerned have to be connected to the same phase in this context. When a pushbutton is pressed, the contact moves to its active position and the set time starts. The active position is indicated by an LED on IK 8814. The lighting timing switch can be reswitched at any time during the operating period by pressing the pushbutton again. If this is done, the time delay starts again from the beginning without any interruption (in the case of 4-wire circuits). IK 8814 can be switched to permanent lighting by moving a slide switch that is located on the front of the unit. If they are wired appropriately (see the connection diagrams), IK 8814 and OA 8824 can also be used as a time-lag relay for a second consumer (e.g. ventilator). When the first consumer (e.g. a light) is switched on, the contacts move to their active position, as a result of which the second consumer is switched on as well. When the first consumer has been switched off, the contact remains in its active position for the duration of the set time delay.
