Fuji Electric, Data recorders PHL series

Up to 9 or 18 channels for thermocouples, RTD, voltage, or current input.

- Wide variety of display mode
- Large-capacity data storage
- Data viewer and parameter loader software provided as standard
- Compact design: 160 x 144 x 185 mm, 1.5 kg
- RS485 (MODBUS) (option)
- Ethernet (option)



- Long Term Record Data Saving.
3years in Compact Flash (In case of using 512MB Compact Flash)
- Saved Data playback
Saved data in Memory card can be easily called out and played back on display
- Math and totalization
These functions are available as standard.
- Communication
RS485, MODBUS RTU protocol is available. (option)
Ethernet (10Base-T) is available. (option)
- Screen saver
Period of non-operation exceeds the setting value of parameter, recorder turns off the backlight of LCD.
- PC support softwares (Data Viewer/Parameter Loader)
Supplied in a CD-ROM as a part of standard accessory
- Compact size
160 (W) X 144 (H) X 185 (D) mm (Panel mount)1.5 kg compact size
- 9-point recording and 18-point max. recording
12 types of thermocouples, 5 types of resistance bulbs and voltage/current input are available.

FUJI ELECTRIC, DATA RECORDERS PHL SERIES memory card data saving.

Provides flexibility and variety in the handling of record data.


Mathematics function (programming formula) as standard.
You can program formula using below operand. Addition, Subtraction, Multiplication, Division Absolute value, X to the power of Y, Logarithm, Natural logarithm, Exponential function, Humidity, Average value, Maximum value, Minimum value.

Communication.
- RS485, MODBUS RTU protocol is available. Communication rate is 9600 or 19200 bps and multi-drop/ up to 32 recorders connectable including master station. Total extension is 500m or less.
- Ethernet (10Base-T) is available. It has FTP, HTTP (Web server), SMTP and MODBUS-TCP protocols.

Calculation function offered as standard.
- Subtraction
Difference between the values of each channel can be calculated.
- F value calculation
Extinction rate of bacteria by heat sterilization can be calculated per channel according to the measured temperature.
- Totalization
Measured value of each channel can be totalized. Reference time can be selected from day, hour, minute and second.
- Square root extraction
Square root extraction of the input value of each channel can be performed.

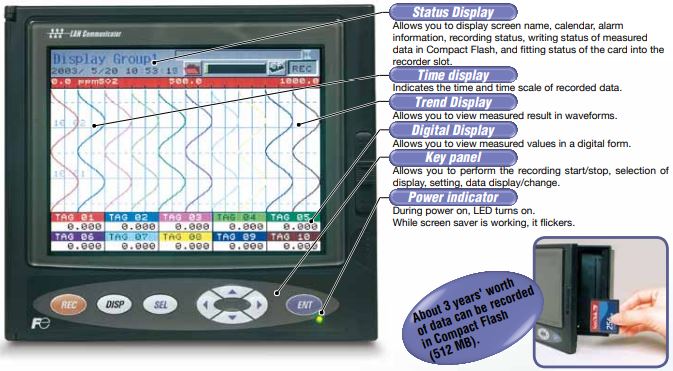

Wide variety of display mode.

- Trend recording (horizontal).
Measured result is horizontally displayed in real time.
- Trend recording (vertical).
Measured result is vertically displayed in real time.
- Bar graph.
Measured values are displayed in bar graph.
- Analog meter.
Measured values are displayed in analog meters.
- Digital display.
Channel No., Tag No. engineering unit, and alarm information are displayed in digital form, in addition to measured values.
- Totalized data display.
Totalized data of each channel is digitally displayed. (If power failure occurs while in totalizing operation and the power is restored later, the data being totalized is cleared.).
- Historical trend display.
Past data saved to Compact Flash can be viewed. Scroll function is usable.
- Event summary display.
Alarm status and external control input status for each channel are displayed.

A convenient PC support software package is included as standard with Fuji Electric data recorder.

- Past data saved to Compact Flash can be viewed on personal computer.
- Parameters for the recorder can be easily set
and changed from personal computer.

Before use, install PC support software supplied as standard.
- O/S: Windows XP/2000/7
- Required storage capacity: 64 MB
PC/AT-compatible machine
- Operation on PC98-series machines by NEC is not guaranteed.
- Operation on self-made or shop-brand PCs is not guaranteed.



Before use, install PC support software supplied as standard.
- O/S: Windows XP/2000/7
- Required capacity of memory: 64 MB
- A communication cable between recorder and pc is optional. Type: PHZP1801 PC/AT-compatible machine
- Operation on PC98-series machines by NEC is not guaranteed.
- Operation on self-made or shop-brand PCs is not guaranteed.
