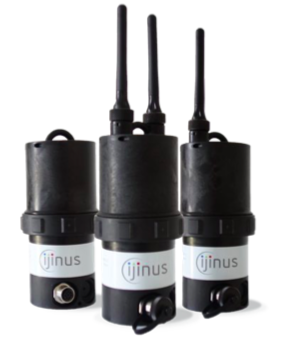

Fuji Electric, Wireless Data logger LOG V3

Data logger LOG V3 are easy to install, robust and offer data communication options. Connected sensors are powered by the internal battery of the loggers, and for the more energy-consuming sensors by a pack battery. This brand new range of data loggers includes 3 models each with their own specialties:

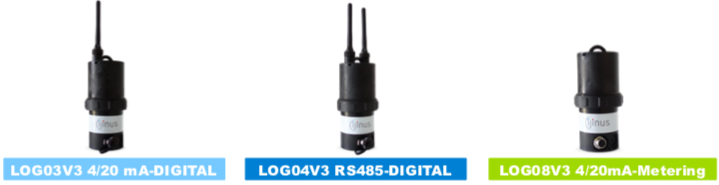

LOG08V3 4/20MA – METERING:
- Fire hydrant pressure control
- Water pressure control
- Fast pressure metering and logging of drinking water networks

LOG04V3 MODBUS RS485 – DIGITAL:
- Area-Velocity Flow
- CSO / SSO
- Access point Modbus/RADIO (HF)/GSM/Sigfox
- Pumping stations
- Water quality
- Rain

LOG03V3 4-20MA – DIGITAL:
- Groundwater resources
- CSO / SSO
- Flow measurement using pressure probe
- Pumping stations
- Rain

Fuji Electric wireless data logger avantages.

WIRELESS SETTINGS.
Configuration of the loggers and data analysis are done locally and safely by radio (RFID) using one of our programming kit to connect to PC or tablet. It includes the software Avelour 6
ULTRA LOW POWER - 5 YEARS AUTONOMY.
Energy is integrated into the sensor: lithium batteries are replaceable and lasts more than 5 years for 1 measurement / 15min and 1 data sending per day + alerts
LOGGER WITH OR WITHOUT MODEM.
HF communication for your local measurement campaigns and Modbus/Radio/GMS/Sigfox for remote monitoring management on V2.ijitrack.com or on your own server ANALYSE AND EXPORT YOUR DATA Easily compare different data, apply conversions and formulas if needed, and export results.
ANALYSE AND EXPORT YOUR DATA.
Easily compare different data, apply conversions and formulas if needed, and export results.



Range specifications.
- Configuration : programming kit USB/HF key, wireless and including software Avelour 6
- Multi Applications data loggers
- Wireless setting with Rfid technology
- Communication : Modbus/Radio (HF)/GSM/Sigfox
- Inputs : voltage (7V…30V), 4-20 mA, digital, counter, Modbus
- Outputs : voltage (7V…30V), open collector, Modbus
- Memory : 500 000 measures
- Battery powered loggers
- Sealing IP68

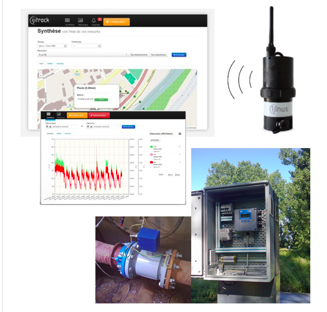

Ijitrack V2 - Real-time data monitoring and management.

- Simple and intuitive interface.
3 sections allow you to manage your data: Summary, History and Alarm. These data are visible on map, table and object
- Devices configuration.
The configuration wizard allows you to quickly add new sensors by selecting the account, the name, containing model
- Export.
Customizable exports to CSV and Excel sensor, by group, from date to date. Automated HTTP request export available
- Protected Data Access.
HTTPS secure connection, 128-bit encryption
- Account management.
Supervise all your sensors, manage your own client accounts and different site locations through a tree structure style
- Multi-axis and multi-curves graphs.
The interface allows you to compare your data, from different sensors.
