Hitachi WL200 small versatile frequency inverters series for general purpose applications

send
Hitachi frequency inverters WL200 small versatile series for general purpose applications
The Hitachi WL200 Series offers a range from 0,2 kW to 18,5 kW. It comes with Advanced V/f Control and enhanced funtionality in control, as well as programmable functions (EzSQ software). Furthermore the Hitachi WL200 is environmental friendly through its energy saving function (RoHS compliant). Various Network communication options are offered for easy communication. Frequency inverters WL200 series have enhanced functionality and provide accurate operation. Ideal for fan, pump and general purpose applications.
  • Advanced V/f control
  • Built-in PID
  • Fire mode
  • Programmable functions (EzSQ)
  • Energy saving function
  • Built-in RF filter class B
  • Various Network communication options
  • RoHS Compliance
  • Dynamic braking transistor in all models
  • Global standards CE, UL, c-UL und c-Tick
  • Safe-Stop function

Hitachi WL200 Series (1 phase / 200 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
WL200-002SF 200-240 (1ph) 0,2 1.2 - - - - - 1 on request
WL200-004SF 200-240 (1ph) 0,4 2,6 - - - - - 1,1 on request
WL200-007SF 200-240 (1ph) 0,75 3,5 - - - - - 1,1 on request
WL200-015SF 200-240 (1ph) 1,5 6 - - - - - 1,6 on request
WL200-022SF 200-240 (1ph) 2,2 9,6 - - - - - 1,8 on request

Hitachi WL200 Series (3 phase / 400 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
WL200-004HF 380-480 (3ph) 0,4 1.5 - - - - - 1,5 on request
WL200-007HF 380-480 (3ph) 0,75 2,1 - - - - - 1,5 on request
WL200-015HF 380-480 (3ph) 1,5 4,1 - - - - - 1,6 on request
WL200-022HF 380-480 (3ph) 2,2 5,4 - - - - - 1,8 on request
WL200-030HF 380-480 (3ph) 3 6,9 - - - - - 1,9 on request
WL200-040HF 380-480 (3ph) 4 8,8 - - - - - 1,9 on request
WL200-055HF 380-480 (3ph) 5,5 11,1 - - - - - 2,1 on request
WL200-075HF 380-480 (3ph) 7,5 17,5 - - - - - 3,5 on request
WL200-110HF 380-480 (3ph) 11 23 - - - - - 3,5 on request
WL200-150HF 380-480 (3ph) 15 31 - - - - - 4,7 on request
WL200-185HF 380-480 (3ph) 18,5 38 - - - - - 5,2 on request
Technical Information and Features

Hitachi frequency inverter WL200 series is easy to use

Easy to use programming software allows user-friendly and intuitive operation:
- Online monitoring of all parameters and I/O terminal status
- Parameter conversion between different series
- Faster parameter download/ upload for RS422 communication
- Windows XP, 7, 8, 10 compatible

Easy operation:
- LED control

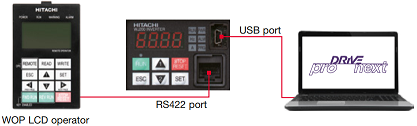

- RS422 port
- Mini USB port

WOP LCD operator:
- 12 languages available
- 5 line LCD operator
- Real time clock built-in
- Two color backlight that distinguish trip status

Password function:
- To ensure parameters remain consistent and to hide some or all parameters.
Hitachi frequency inverter WL200 series is easy to use

Network compatibility & external ports

The WL200/WJ200 Series is particularly suitable for easy integration into various networks using optional fieldbus modules:
- RS485-ModBUS (Built-in)
- RS422 port (Built-in)
- DeviceNET
- Profibus-DP
- EtherCAT
- ProfiNET

One network expansion card can be installed inside the inverter.

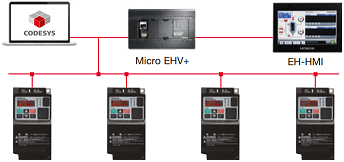

Fieldbus communication PLC – WL200/WJ200 Series
Fieldbus communication PLC – Hitachi frequency inverter WL200/WJ200 Series

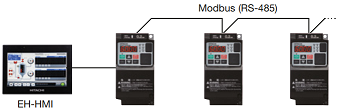

Direct communication HMI – WL200/WJ200 Series
Direct communication HMI – Hitachi frequency inverter WL200/WJ200 Series


Hitachi drive WL200 series is flexible & user-friendly

Side-by-side installation:
- Inverters can be installed with no space between them to save space in the panel.*
Hitachi WL200 series inverters can be installed with no space between them to save space in the panel

Ease of wiring:
- Screw-less terminals (control circuit terminals) spring-type for use with solid or stranded wire with ferrules.
Screw-less Hitachi drive WL200 series terminals spring-type for use with solid or stranded wire with ferrules

Easy to remove cooling fan:
- The cooling fan can be exchanged without special tools.
The Hitachi vfd WL200 series cooling fan can be exchanged without special tools

Fast connection module:
- Connection to various field bus systems via an easy to install optional expansion card.

Easy sequence programming function [EzSQ]
- Logic operations can be realised within the inverter using Hitachi’s EzSQ software without the need for external relays or a PLC. User programs are compiled using a PC program which are then downloaded to the drive.

Control Panel with Standard Inverter vs Control Panel with Hitachi drive WL200 series using EzSQ

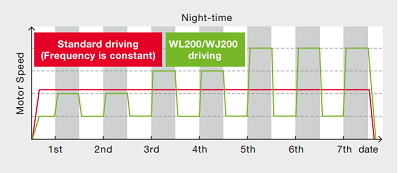

EzSQ Application Example: Energy saving through speed reduction on a spinning machine.
- Daytime: motor speed is automatically decreased to reduce demand during peak hours.
- Night-time: motor speed is increased to take advantage of off-peak power rates. Average productivity is maintained.

Hitachi inverter WL200 series EzSQ Application Example

Hitachi vfd WL200 series Safety & Safe Operation

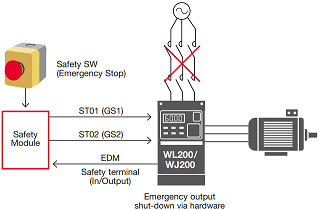

Safety stop function WL200/WJ200 conform to the applicable safety standards and corresponds to Machinery Directive of Europe. Inverter is shut down via hardware, bypassing the CPU, achieving a reliable safe stop function. (ISO13849-1 Category 3/IEC60204-1 Stop Category 0)

Safety stop function for Hitachi drive WL200 series
