Hitachi SJ700D high performance frequency inverters series for general purpose use

send
Hitachi frequency inverters SJ700D high performance series for general purpose use
A real all-rounder among frequency inverters. The sensorless vector control makes optimal torque and revolution control possible – even on high loads. With the new Easy Sequence (EzSQ) programming software and precise positioning the SJ700D series of inverters handles complex applications with ease. Various fieldS bus interfaces enable easy integration into a variety of networks.
  • Position control
  • "Easy Sequence" programming function
  • Integrated EMC filter
  • Integrated brake unit up to 22 kW
  • 200 % starting torque at 0.3 Hz
  • Fieldbus interfaces for Profibus, CANopen and DeviceNet
  • Hardware & software backwards compatibility
  • Parameter handling assistance
  • Trip-less operation

Hitachi SJ700D series
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
SJ700D-007HFEF3 400 (3ph) 0,75 / 1.5 2.5 / 3.1 + IP20 0,1-400 150%/1 min; 200%/3 sec 150×255×140 3,5 on request
SJ700D-015HFEF3 400 (3ph) 1,5 / 2,2 3.8 / 4.8 + IP20 0,1-400 150%/1 min; 200%/3 sec 150×255×140 3,5 on request
SJ700D-022HFEF3 400 (3ph) 2,2 / 3,7 5.3 / 6.7 + IP20 0,1-400 150%/1 min; 200%/3 sec 150×255×140 3,5 on request
SJ700D-040HFEF3 400 (3ph) 4 / 5,5 9 / 11 + IP20 0,1-400 150%/1 min; 200%/3 sec 150×255×140 3,5 on request
SJ700D-055HFEF3 400 (3ph) 5,5 / 7,5 14 / 16 + IP 20 0,1-400 150%/60 sec; 200%/3 sec 210х260х170 6 on request
SJ700D-075HFEF3 400 (3ph) 7,5 / 11 19 / 22 + IP 20 0,1-400 150%/1 min; 200%/3 sec 210х260х170 6 on request
SJ700D-110HFEF3 400 (3ph) 11 / 15 25 / 29 + IP 20 0,1-400 150%/1 min; 200%/3 sec 210х260х170 6 on request
SJ700D-150HFEF3 400 (3ph) 15 / 18,5 32 / 37 + IP 20 0,1-400 150%/1 min; 200%/3 sec 250×390×190 14 on request
SJ700D-185HFEF3 400 (3ph) 18,5 / 22 38 / 43 + IP 20 0,1-400 150%/1 min; 200%/3 sec 250×390×190 14 on request
SJ700D-220HFEF3 400 (3ph) 22 / 30 48 / 57 + IP 20 0,1-400 150%/1 min; 200%/3 sec 250×390×190 14 on request
SJ700D-300HFEF3 400 (3ph) 30 / 37 58 / 70 + IP 20 0,1-400 150%/1 min; 200%/3 sec 310×540×195 22 on request
SJ700D-370HFEF3 400 (3ph) 37 / 45 75 / 85 + IP 20 0,1-400 150%/1 min; 200%/3 sec 390×550×250 30 on request
SJ700D-450HFEF3 400 (3ph) 45 / 55 91 / 105 + IP 20 0,1-400 150%/1 min; 200%/3 sec 390×550×250 30 on request
SJ700D-550HFEF2 400 (3ph) 55 / 75 112 / 135 + IP 20 0,1-400 150%/1 min; 200%/3 sec 390×550×250 30 on request
SJ700D-750HFEF3 400 (3ph) 75 / 90 149 / 160 + IP00 0,1-400 150%/1 min; 200%/0.5 sec 390×700×270 55 on request
SJ700D-900HFEF3 400 (3ph) 90 / 110 176 / 195 + IP00 0,1-400 150%/1 min; 200%/0.5 sec 390×700×270 55 on request
SJ700D-1100HFEF3 400 (3ph) 110 / 132 217 / 230 + IP00 0,1-400 150%/1 min; 200%/0.5 sec 480×740×270 70 on request
SJ700D-1320HFEF3 400 (3ph) 132 / 150 / 160 260 / 290 + IP00 0,1-400 150%/1 min; 200%/0.5 sec 480×740×270 70 on request
Technical Information and Features

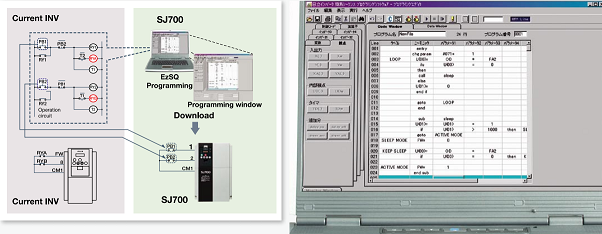

Logical control of an Hitachi vfd SJ700D series application via the inverter-integrated programming function

Complex logic sequences are programmed using EzSQ and then downloaded to the SJ700 inverter. External logic using a PLC or relays can be avoided.

- Basic-like high level language
- Max. 512 Steps
- Position Control (with encoder)

Examples of use include automatic speed control based on load, such as the swift-lift function of a crane. Other examples include: Sleep Mode, load distribution and many more.

Hitachi drive SJ700D series usage example

Replace relay sequence through software

Hitachi drive SJ700D series usage example

Hitachi vfd SJ700D comes with Easy Parameter Handling

Basic Mode
- Display only basic parameters
User mode
- Display only user selected parameters
Compare mode
- Display only adjusted parameters
Hitachi vfd SJ700D comes with Easy Parameter Handling

Backwards Compatibility

Data from existing Hitachi SJ300 drives can be copied and downloaded via the remote operator (SRW-OJ) to an SJ700 drive. The terminal blocks of the SJ300 and SJ700 are identical and can be seamlessly transferred.

Data from existing Hitachi SJ300 drives can be copied and downloaded via the remote operator to an SJ700 drive

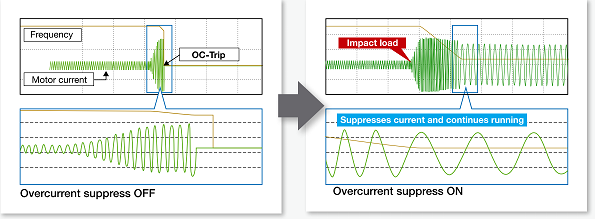

Hitachi inverter SJ700D series Overcurrent & Voltage Suppression function

A combination of fast internal processing speed, improved current control and the overcurrent and overvoltage suppression functions leads to the avoidance of inverter trip during acceleration and deceleration.

Hitachi inverter SJ700D series Overcurrent & Voltage Suppression function

Hitachi drive SJ700D series has a high starting torque and easy set-up

Improvements to the Sensorless Vector Control allow for the realization of 200% starting torque at 0.3Hz. Auto-tuning makes adjustment of the motor constants easy. Ideally suited for applications where high torque is needed such as cranes, extruders or lifts.

Hitachi drive SJ700D series has a high starting torque and easy set-up

Hitachi vfd SJ700D series has built-in EMC filter, Brake Unit

Installation cost and space can both be reduced due to the integration of an EMC filter and braking unit. The integrated filter meets the EN61800-3-2nd Environment standard. The braking unit is integrated in units up to 22kW

Hitachi vfd SJ700D series has built-in EMC filter, Brake Unit
