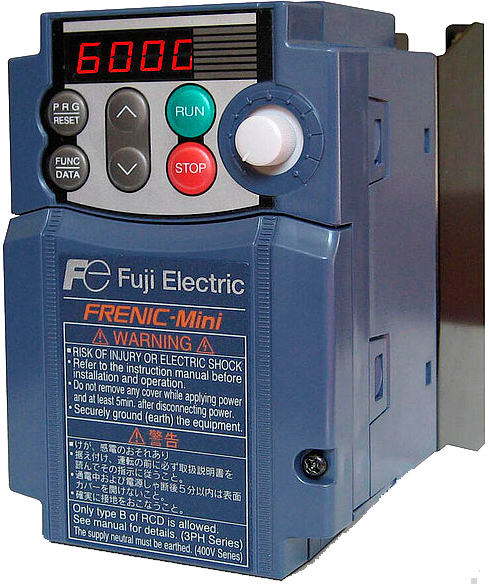

Fuji Electric FRENIC-Mini (FRN C2) compact frequency inverter series for general purpose
With a wide range of functions, compact design, simple operation and worldwide compatibility, the FRENIC-Mini C2 inverter takes the performance of a wide variety of applications and equipment to a new level. Applications include conveyors, fans, pumps, centrifugal separators and food processing machines. Your benefits: System integration, energy efficiency, fewer working hours and lower overall costs.
- High performance, versatile:
Dynamic torque vector control / Slip compensation controller shortens adjustment times / Fastest CPU processor in its class - Even more user-friendly and fully compatible with existing products:
External dimensions of models C1 and C2 are equivalent - Easy operation and maintenance:
User-friendly / USB keypad / Easier maintenance - Energy optimizer:
Control system (energy consumption optimizer) / PID controller / Cooling fan ON/OFF control / Synchronous motor control - Standard network capabilities: RS-485 communication port
Fuji Electric Frenic Mini (FRN-C2) series, voltage 200-240 V (1 phase) without integrated EMC filter
| Model |
Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN0001C2S-7E | 200-240 (1ph) | 0,1 | 0.8 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,6 | € 175,00 |
| FRN0002C2S-7E | 200-240 (1ph) | 0,2 | 1.5 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,6 | € 182,00 |
| FRN0004C2S-7E | 200-240 (1ph) | 0,4 | 3.5 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,7 | € 188,00 |
| FRN0006C2S-7E | 200-240 (1ph) | 0,75 | 5.5 | + | IP 20 | 25-400 | 150 | 80x120x90 | 0,9 | € 196,00 |
| FRN0010C2S-7E | 200-240 (1ph) | 1,5 | 9.2 | + | IP 20 | 25-400 | 150 | 110x130x85 | 1,8 | € 215,00 |
| FRN0012C2S-7E | 200-240 (1ph) | 2,2 | 12 | + | IP 20 | 25-400 | 150 | 140x180x75 | 2,5 | € 227,00 |
Fuji Electric Frenic Mini (FRN-C2) series, voltage 200-240 V (3 phase) without integrated EMC filter
| Model |
Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN0001C2S-2A | 200-240 (3ph) | 0,1 | 0.8 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,6 | € 198,00 |
| FRN0002C2S-2A | 200-240 (3ph) | 0,2 | 1.5 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,6 | € 201,00 |
| FRN0004C2S-2A | 200-240 (3ph) | 0,4 | 3.5 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,7 | € 202,00 |
| FRN0006C2S-2A | 200-240 (3ph) | 0,75 | 5.5 | + | IP 20 | 25-400 | 150 | 80x120x70 | 0,8 | € 215,00 |
| FRN0010C2S-2A | 200-240 (3ph) | 1,5 | 9.2 | + | IP 20 | 25-400 | 150 | 110x130x75 | 1,7 | € 237,00 |
| FRN0012C2S-2A | 200-240 (3ph) | 2,2 | 12 | + | IP 20 | 25-400 | 150 | 110x130x75 | 1,7 | € 250,00 |
| FRN0020C2S-2A | 200-240 (3ph) | 3,7 | 19.1 | + | IP 20 | 25-400 | 150 | 140x180x75 | 2,5 | € 266,00 |
| FRN0025C2S-2A | 200-240 (3ph) | 5,5 | 25 | + | IP 20 | 25-400 | 150 | 180x220x158 | 3,1 | € 563,00 |
| FRN0033C2S-2A | 200-240 (3ph) | 7,5 | 33 | + | IP 20 | 25-400 | 150 | 180x220x158 | 3,1 | € 606,00 |
| FRN0047C2S-2A | 200-240 (3ph) | 11 | 47 | + | IP 20 | 25-400 | 150 | 220x260x190 | 4,5 | € 699,00 |
| FRN0060C2S-2A | 200-240 (3ph) | 15 | 60 | + | IP 20 | 25-400 | 150 | 220x260x190 | 4,5 | € 1 007,00 |
Fuji Electric Frenic Mini (FRN-C2) series, voltage 380-480 V (3 phase) without integrated EMC filter
| Model |
Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN0002C2S-4E | 380-480 (3ph) | 0,4 | 1.8 | + | IP 20 | 25-400 | 150 | 110x130x75 | 1,2 | € 248,00 |
| FRN0004C2S-4E | 380-480 (3ph) | 0,75 | 3.1 | + | IP 20 | 25-400 | 150 | 110x130x75 | 1,3 | € 254,00 |
| FRN0005C2S-4E | 380-480 (3ph) | 1,5 | 4.3 | + | IP 20 | 25-400 | 150 | 110x130x75 | 1,7 | € 289,00 |
| FRN0007C2S-4E | 380-480 (3ph) | 2,2 | 6.3 | + | IP 20 | 25-400 | 150 | 110x130x75 | 1,7 | € 344,00 |
| FRN0011C2S-4E | 380-480 (3ph) | 4 | 10.5 | + | IP 20 | 25-400 | 150 | 140x180x75 | 2,5 | € 402,00 |
| FRN0013C2S-4E | 380-480 (3ph) | 5,5 | 13 | + | IP 20 | 25-400 | 150 | 180x220x158 | 3,1 | € 490,00 |
| FRN0018C2S-4E | 380-480 (3ph) | 7,5 | 18 | + | IP 20 | 25-400 | 150 | 180x220x158 | 3,1 | € 546,00 |
| FRN0024C2S-4E | 380-480 (3ph) | 11 | 24 | + | IP 20 | 25-400 | 150 | 220x260x190 | 4,5 | € 620,00 |
| FRN0030C2S-4E | 380-480 (3ph) | 15 | 30 | + | IP 20 | 25-400 | 150 | 220x260x190 | 4,5 | € 836,00 |
Fuji Electric Frenic Mini (FRN-C2) series, voltage 200-240 V (1 phase) with built-in EMC filter
| Model |
Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN0001C2E-7E | 200-240 (1ph) | 0,1 | 0.8 | + | IP 20 | 25-400 | 150 | 80x170x90 | 0,7 | € 184,00 |
| FRN0002C2E-7E | 200-240 (1ph) | 0,2 | 1.5 | + | IP 20 | 25-400 | 150 | 80x170x90 | 0,7 | € 189,00 |
| FRN0004C2E-7E | 200-240 (1ph) | 0,4 | 3.5 | + | IP 20 | 25-400 | 150 | 80x170x90 | 0,8 | € 202,00 |
| FRN0006C2E-7E | 200-240 (1ph) | 0,75 | 5.5 | + | IP 20 | 25-400 | 150 | 110x180x99 | 1,2 | € 215,00 |
| FRN0010C2E-7E | 200-240 (1ph) | 1,5 | 9.2 | + | IP 20 | 25-400 | 150 | 140x245x118 | 3 | € 234,00 |
| FRN0012C2E-7E | 200-240 (1ph) | 2,2 | 12 | + | IP 20 | 25-400 | 150 | 140x245x118 | 3 | € 248,00 |
Fuji Electric Frenic Mini (FRN-C2) series, voltage 380-480 V (3 phase) with built-in EMC filter
| Model |
Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN0002C2E-4E | 380-480 (3ph) | 0,4 | 1.8 | + | IP 20 | 25-400 | 150 | 110x180x118 | 1,5 | € 267,00 |
| FRN0004C2E-4E | 380-480 (3ph) | 0,75 | 3.1 | + | IP 20 | 25-400 | 150 | 110x180x118 | 1,6 | € 286,00 |
| FRN0005C2E-4E | 380-480 (3ph) | 1,5 | 4.3 | + | IP 20 | 25-400 | 150 | 140x245x118 | 3 | € 330,00 |
| FRN0007C2E-4E | 380-480 (3ph) | 2,2 | 6.3 | + | IP 20 | 25-400 | 150 | 140x245x118 | 3,1 | € 374,00 |
| FRN0011C2E-4E | 380-480 (3ph) | 4 | 10.5 | + | IP 20 | 25-400 | 150 | 140x245x118 | 3,2 | € 455,00 |
| FRN0013C2E-4E | 380-480 (3ph) | 5,5 | 13 | + | IP 20 | 25-400 | 150 | 181,5x285x208 | 4,6 | € 509,00 |
| FRN0018C2E-4E | 380-480 (3ph) | 7,5 | 18 | + | IP 20 | 25-400 | 150 | 181,5x285x208 | 4,6 | € 558,00 |
| FRN0024C2E-4E | 380-480 (3ph) | 11 | 24 | + | IP 20 | 25-400 | 150 | 220x332x245 | 6,7 | € 620,00 |
| FRN0030C2E-4E | 380-480 (3ph) | 15 | 30 | + | IP 20 | 25-400 | 150 | 220x332x245 | 6,7 | € 836,00 |
Technical Information and Features

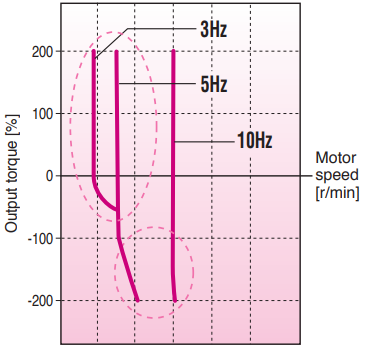

Fuji Electric drive FRENIC-Mini (FRN-C2) series original dynamic torque vector control system
Fuji Electric original dynamic torque vector control system is known for its top-of-the line performance, delivering stabile torque output even at low speeds. This feature has a wide range of applications, including conveyors and high-inertia loads that demand high starting torque.
Slip Compensation shortens setting time
The slip compensation controller works with voltage tuning for even more accurate speed control at low velocity. This reduces speed control variability and stabilizing creep speed for more accurate stopping in conveyors and similar equipment.
Fuji Electric frequency inverter FRENIC-Mini (C2) series has the fastest CPU Processor in its class
Advanced CPU processes data at twice the speed of our current model.
/fvr-mini(FRN-C2)1.png "Fuji Electric frequency inverter FRENIC-Mini (C2) series has the fastest CPU Processor in its class")

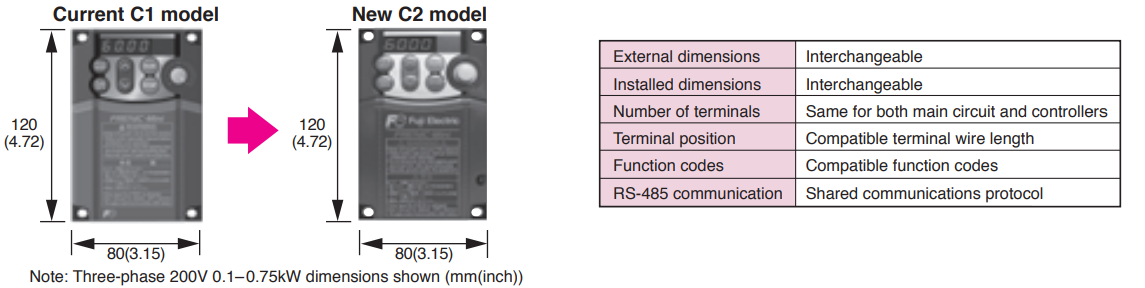

Fuji Electric drive FRENIC-Mini (C2) series has a full compatibility and user friendly design
/fvr-mini(FRN-C2)2.png "Fuji Electric drive FRENIC-Mini (C2) series has a full compatibility and user friendly design")
Easy Operation and Maintenance
- Usability - Delivers all the usability of the C1. Provides volume of frequency and the same ease of operation as the current model.

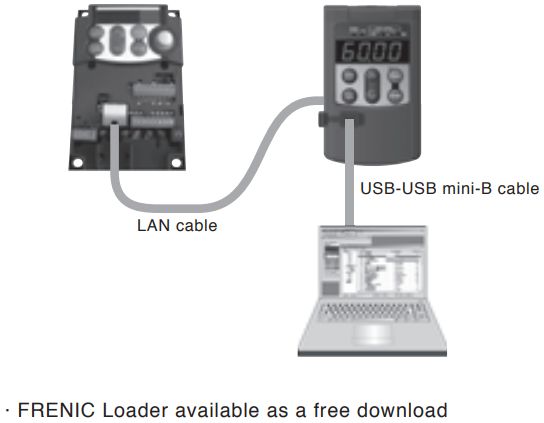

- USB Keypad - Optional USB keypad available. Enhanced PC loader software (FRENIC Loader) connectivity.
/fvr-mini(FRN-C2)3.png "Fuji Electric drive FRENIC-Mini (C2) series Loader is available as a free download")

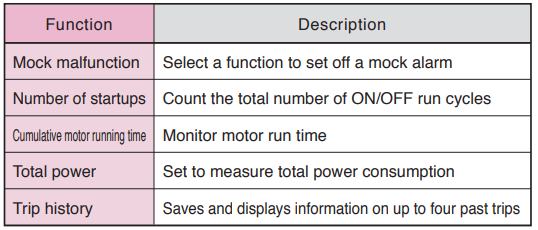

-Improve Maintainability
/fvr-mini(FRN-C2)4.png "Fuji Electric inverter FRENIC-Mini (C2) series improve maintainability")

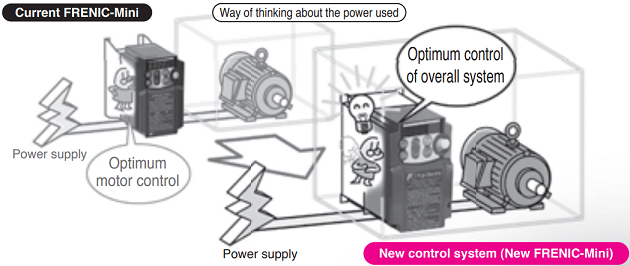

Fuji Electric drive FRENIC-Mini (FRN-C2) has optimum Energy Control
Motor tuning minimizes power loss.
/fvr-mini(FRN-C2)5.png "New control system for Fuji Electric vfd FRENIC-Mini (C2) series")
PID Control Function
Permits motor operation while controlling temperature, pressure, and flow rate without the use of a temperature controller or other external device.
Fuji Electric inverter FRENIC-Mini (FRN-C2) has a Cooling Fan ON/OFF Control Function
The cooling fan can be switched off when the fan or pump is not running to reduce both noise and energy consumption.
Synchronous Motor Control
Use of sensorless synchronous motor control together with the motor can reduce energy consumption.

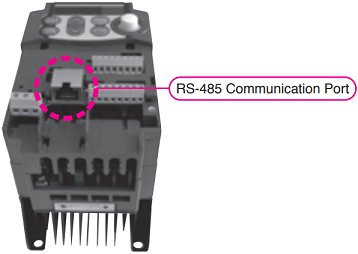

Fuji Electric frequency inverter FRENIC-Mini (FRN-C2) series has a RS-485 communications port as standard
Communications can be controlled through the standard RS-485 communications port using the Modbus-RTU or Fuji Electric inverter protocol.
/fvr-mini(FRN-C2)6.png "Fuji Electric frequency inverter FRENIC-Mini (FRN-C2) series has a RS-485 communications port as standard")
Functions for User Applications
- V/F (non-linear 3 step)
- Two motor parameter sets
- Brake signal (brake release signal)
- Rotational direction control (prevent forward/reverse movement)
