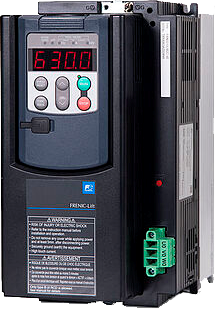

Fuji Electric FRENIC-Lift (FRN LM2C) frequency inverter series for lift and hoisting applications

send
Fuji Electric frequency inverters FRENIC-Lift (FRN LM2C) series for lift and hoisting applications
The most important features from our bestseller FRENIC-Lift LM2 combined with the requirements of elementary lift applications, that is the FRENIC-Lift LM2C. Cost efficiency and basic structures, no more no less. This inverter gets to the point: Simple application = simple solution.
  • Space-saving book shape
  • Various energy saving modes
  • Certified safety functions according to EN 81-20 for easier installation
  • Open communication: CANopen, DCP and Modbus RTU available
  • High-quality coating of the circuit board
  • Easy rescue operation
  • Control of any motor
  • User-defined logic

Downloads

FRENIC-Lift (FRN LM2C) Catalogue
FRENIC-Lift (FRN LM2C) Operating Manual


Fuji Electric FRENIC Lift (FRN-LM2С) lift series (3 phase 400 V)
Model Voltage,
V		 Capacity,
kW		 Current,
A		 V/f
mode		 Enclosure
IPXX		 Output frequency,
Hz		 Overload capacity,
% per 1 min		 Dimensions
(W x H x D), mm		 Weight,
kg		 Price
FRN0010LM2C-4E 400 (3ph) 4 10 + IP20 0.1-200 180% / 3 sec. 140x260x195 4.1 € 660,00
FRN0015LM2C-4E 400 (3ph) 5.5 15 + IP20 0.1-200 180% / 3 sec. 140x260x195 4.1 € 768,00
FRN0019LM2C-4E 400 (3ph) 7.5 18.5 + IP20 0.1-200 180% / 3 sec. 140x260x195 4.4 € 801,00
FRN0025LM2C-4E 400 (3ph) 11 24.5 + IP20 0.1-200 180% / 3 sec. 140x260x195 4.4 € 1 045,00
FRN0032LM2C-4E 400 (3ph) 15 32 + IP20 0.1-200 180% / 3 sec. 160x360x195 5.6 € 1 286,00
Technical Information and Features

Fuji Electric FRENIC-Lift LM2C benefits

Book type shape
- Side mounting
- Install the inverter in the most convenient way depending on space limitations (e.g. door frames).
- Removable power terminals: Easier and faster installation by pre-wiring thanks to removable power terminals.
- IP 54 heatsink
- Stronger IP level allows feed through mounting for heatsink, making cabinet design smaller and cheaper for shaft installation.

Book type shape
- Side mounting
- Install the inverter in the most convenient way depending on space limitations (e.g. door frames).
- Removable power terminals: Easier and faster installation by pre-wiring thanks to removable power terminals.
- IP 54 heatsink
- Stronger IP level allows feed through mounting for heatsink, making cabinet design smaller and cheaper for shaft installation.

Different energy saving modes
Following the standards and directives for saving energy (ISO 25745), different saving energy modes are available. Put the inverter to sleep mode by activating a digital input. Charging circuits are highly robust and allow high number of power ups per hour.

Certified functional safety functions according to EN81-20 for an easier installation
- Contactorless: Needless of the two motor contactors between inverter and motor (Pollution Degree 3)
- Brake monitoring function for UCM

Connected to the world
CANopen, DCP and Modbus RTU are available thanks to the 3 built-in communication ports.

Stronger coating
New coating makes PCB stronger against humidity and dust. Robustness for lift shaft environments.

Easy rescue operation
Rescue operation available by means of UPS or batteries. Thanks to the new 24 VDC input, rescue can be performed from 48 VDC only. Software functions help as well to optimize UPS or batteries sizing by choosing the most favourable rescue direction.

Able to control any induction motor
FRENIC-Lift is able to control any induction motor in the market.

Customizable logic capability
Customize your own functions with the built-in PLC function. Easily program your PLC via loader software. Create up to 200 steps program (macro steps / function blocks).

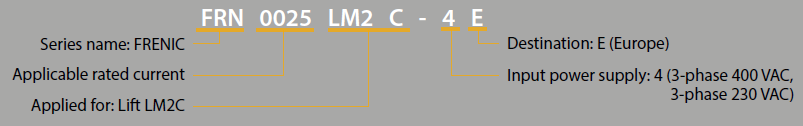

Type code

Type code LM2C

Fuji Electric FRENIC-Lift LM2C options

EMC Filter
External EMC filter compliant to EN12015 available.

DC Reactor
Compliant to EN12015 harmonic levels. More compact. Reduces input current.

Braking Resistor
Burns regenerated energy when the lift is in braking mode. Different braking resistors available according to lift speed and traffic.

DA-LM2
Keypad adapter for side mounting installation. Includes cable. Depending on the attachment, width and height will change.

TP-A1-LM2
Advanced LCD keypad. Intuitive and user friendly menu. Monitoring and maintenance information. Up to 3 inverter settings can be recorded in internal memory. Different speed units selectable (rpm, Hz, mm/s). Available in different languages: English, German, French, Spanish, Italian, Dutch, Russian, Greek, Turkish, Polish, Czech, Swedish, Portuguese, Chinese, Japanese and user customized language.

TP-E1U
Basic keypad with 7-segment display. Mini-USB connector included for a direct communication between FRENIC-Lift and PC loader software.

PC Loader Software
Free software for monitoring and programing FRENIC-Lift. Oscilloscope function available. Includes an application to program built-in PLC.

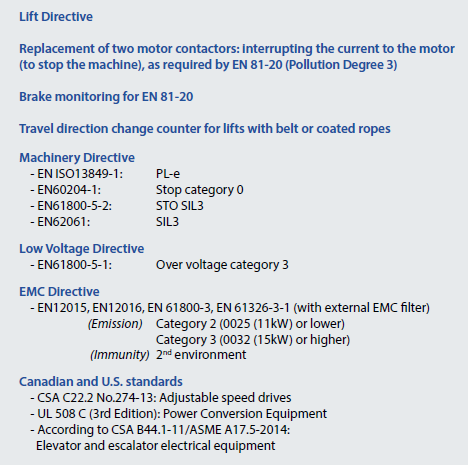

Conformity Standards

Conformity Standards
