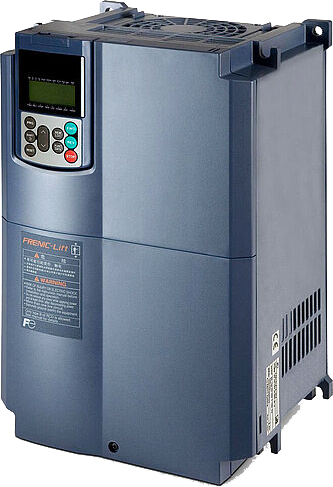

Fuji Electric FRENIC-Lift (FRN LM1) frequency inverter series for lift and hoisting applications
Over the years, Fuji Electric has collected a well established know-how of inverters for lift applications. With this focus in mind, we developed a new inverter, specialized in lift applications with all related requirements: FRENIC-Lift. With FRENIC-Lift, Fuji Electric is well established in the lift industry, and is ready and well-prepared for the European lift market. Like all Fuji Electric inverters, FRENIC-Lift offers a big variety and many possibilities - and of course finest Japanese high quality. FRENIC-Lift is an ideal inverter for nowadays market of lift applications.
- Dedicated inverter for lift applications
- User friendly
- Low maintenance: Long-life design
- Speed control accuracy: + 0.01%
- Current loop bandwidth: 500 Hz
- Powerful: 200% of rated current for 10 s
- 4.0 kW to 45 kW (3 ph 400 V supply)
- 5.5 kW to 22 kW (3 ph 200 V supply)
- 2.2 kW (1 ph 200 V supply)
- TP-G1-ELS (multifunctional keypad, 12 languages available)
Fuji Electric Frenic Lift series
| Model | Voltage, V |
Capacity, kW |
Current, A |
V/f mode |
Enclosure IPXX |
Output frequency, Hz |
Overload capacity, % per 1 min |
Dimensions (W x H x D), mm |
Weight, kg |
Price |
|---|---|---|---|---|---|---|---|---|---|---|
| FRN4.0LM1S-4E | 400 (3ph) | 4 | 9 | - | IP20 | 120 | 200% / 10 sec | 150x260x165 | 3 | on request |
| FRN5.5LM1S-4E | 400 (3ph) | 5,5 | 13.5 | - | IP 20 | 120 | 200% / 10 sec | 220x260x215 | 5,6 | on request |
| FRN7.5LM1S-4E | 400 (3ph) | 7,5 | 18.5 | - | IP 20 | 120 | 200% / 10 sec | 220x260x215 | 5,7 | on request |
| FRN11LM1S-4E | 400 (3ph) | 11 | 24.5 | - | IP 20 | 120 | 49.0 A / 10 sec | 220x260x215 | 7,5 | on request |
| FRN15LM1S-4E | 400 (3ph) | 15 | 32 | - | IP 20 | 120 | 200% / 10 sec | 250x400x215 | 11,1 | on request |
| FRN18.5LM1S-4E | 400 (3ph) | 18,5 | 39 | - | IP 20 | 120 | 200% / 10 sec | 250x400x215 | 11,2 | on request |
| FRN22LM1S-4E | 400 (3ph) | 22 | 45 | - | IP 20 | 120 | 200% / 10 sec | 250x400x215 | 11,7 | on request |
| FRN30LM1S-4E | 400 (3ph) | 30 | 60 | - | IP 00 | 120 | 200% / 10 sec | 320x550x261 | 24 | on request |
| FRN37LM1S-4E | 400 (3ph) | 37 | 75 | - | IP00 | 120 | 200% / 10 sec | 355x550x270 | 33 | on request |
| FRN45LM1S-4E | 400 (3ph) | 45 | 91 | - | IP00 | 120 | 200% / 10 sec | 355x615x270 | 34 | on request |
Technical Information and Features
Fuji Electric vfd FRENIC-Lift has a high performance vector control
- Current response (ACR): 500Hz- Speed control accuracy: ±0.01%
High overload capacity
- 200% of rated current for 10s*2) (Overload begins from 80% continuous operation with a carrier frequency of 10kHz.)IM/PMSM common drive
- A single AC Drive can control an induction motor (open/closed loop control) and a synchronous motor (the optional PG interface card is required).Fuji Electric drive FRENIC-Lift series model variations
FRENIC-Lift AC Drives are available in a series with capacities ranging from 5.5 to 22kW for three-phase 200V model. 4.0 to 45kW for three-phase 400V model. 2.2kW for single-phase 200V model.
Applicable to the feedbacks from various pulse generators
- Applicable to the inputs by open collector/complementary output as a standard specification (Encoder power supply is switchable between +12V and +15V.)- Applicable to the inputs from the 5V line driver as an option
- Applicable to Sin/Cos, Serial interface (EnDat2.1) and Parallel interface (4-bit gray code, UVM 3-bit code)
Fuji Electric inverter FRENIC-Lift Maintenance functions/ Long life design
- DC bus capacitor life: 7 years- Electrolytic capacitor life on the printed circuit boards: 7 years
- Cooling fan life: 5 years
- Life warning signal
- Recording and display of cumulative operating time
- Recording and display of cumulative operations
Globalization
- Safety standards EN61800-5-1:2003, EN954-1 Category3- Sink/source switchable
- RS-485 communications (Modbus RTU) is adopted as standard equipment.
- CAN Bus is adopted as standard equipment.
Fuji Electric frequency inverter FRENIC-Lift Peripheral support tools (Option)
- AC Drive support loader software is provided.- A multi-function keypad (with backlit LCD) makes it possible to copy or edit the function code data.
