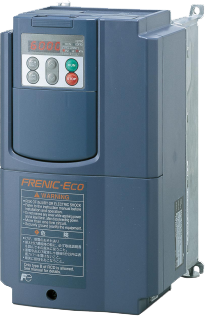

Fuji Electric FRENIC-Eco (FRN F1) frequency inverter series for pumps and HVAC,

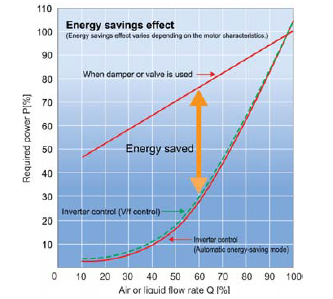

Contribution to energy saving with Frenic-Eco pumps and HVAC series

Simple Operation with Fuji Frenic-Eco (FRN F1) series

Analog input monitor
Analog signals can be sent to the inverter to allow status monitoring of peripheral equipment and issuance of commands to peripheral equipment.

Quick setup menu
Up to 19 frequently used or important function codes can be defined for quick setup in order to shortcut operation and management.

Standard keypad capable of remote operation with optional extension cable
Data can be easily copied to the second or more inverterswith the code copying function.

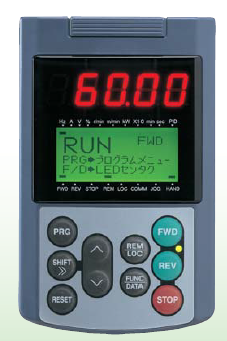

Multi-function keypad (option)
A backlit LCD is installed to allow simple set up through interactive data entry. Function codes can be added or deleted to or from the 19 function codes within the quick setup function.

Multi-function keypad with built-in copy-function
Seeing that the optional multi-function keypad is provided with a built-in copy function, data can be easily copied to the second inverter without requiring individual setups.

Easy maintenance and many protective functions with Fuji Frenic-Eco series

Cumulative running time is recorded and
displayed
The inverter records and displays the cumulative “motor running time” and “inverter running time” (PC board capacitor running time, cooling fan running time), so that they can be used to determine machine and inverter maintenance.

It is possible to output lifetime forecast signal to the transistor output
This signal is output when the main circuit capacitors in the DC bus circuit, the electrolytic capacitors on the PC boards or the cooling fans are near the end of their service life.

The alarm history for the 4 latest alarms is recorded
Detailed information from back as far as the latest 4 alarms can also be checked.

Protective function against phase loss in input/output
It is possible upon start-up and operation.

Protective function for grounding fault
Protection is provided for an overcurrent caused by a grounding fault.

Protection of motor with PTC thermistor
In addition to the protection of the motor with an electronic thermal relay, a PTC thermistor can be used for motor protection.

Full Capabilities for HVAC and pump control

Basic speed control
The speed setpoint is commanded from a PLC or a process controller to the inverter.

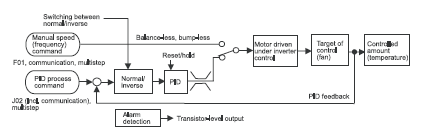

Full PID control functions
FRENIC Eco has a powerful PID control provided with features that ease the adjustments:

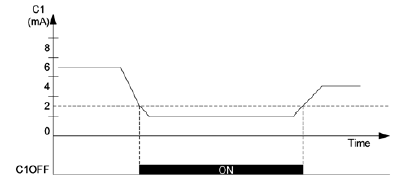

C1 (current input) loss detection under PID control
If the current value in the input (C1: from 4 to 20mA) is less than 2mA an output can be activated if it is set with function C1OFF. This function is a safety supervision of the sensor that is connected to C1 as PID feedback and prevents damages due to sensor loss.

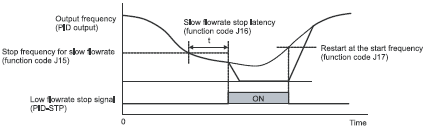

Stop for slow flow rate function
A function for stopping the fan or pump at speeds lower than the lower limit is provided to assure the minimum speed. The function can be used also to stop at a low water flow.



Stop for slow flow rate function
A function for stopping the fan or pump at speeds lower than the lower limit is provided to assure the minimum speed. The function can be used also to stop at a low water flow.

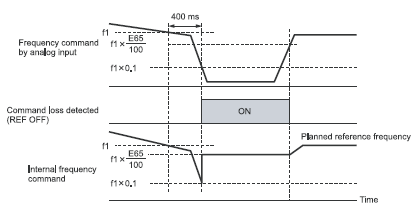

Command loss detection
The analog frequency command is monitored and when an abnormal condition is detected, an alarm signal is output. If this happens in a critical system such as an air conditioner for an important facility the system will be stopped or will continue its operation at the specified speed.

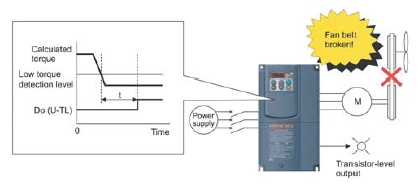

Low motor torque detection
A low motor torque detection output signal is asserted in the event of sudden decrease in torque as a result of an abnormal condition such as the belt being broken between the motor and the load (e.g., a belt-driven fan).



Continued operation upon momentary power failure
The inverter automatically restarts upon recovery from momentary power failure without stopping the motor.
You can choose under three possibilities:
- Starting at the frequency at momentary power failure occurrence
- Starting at 0Hz
- Operation continues at a lower frequency while using the kinetic energy obtained from the inertia of the load at momentary power failure

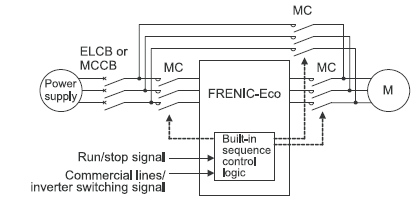

Switching among remote/panel/independent
inverter operation modes
Various frequency setting methods
The best method can be selected for the frequency setting according to the frequency signal to be used. Keypad operation (and keys), analog input (4-20 mA, 0-5 V, 0-10 V), 15 step multi-step frequencies setting, UP/DOWN operation, communication, etc.

Motor pick-up during idling
If the motor runs due to natural convection or other similar situations, you can use the pick-up function to start smoothly.
