Fuji Electric FRENIC-Ace SOLAR frequency inverter series for solar pumping

send
Fuji Electric FRENIC-Ace SOLAR frequency inverter series for solar pumping

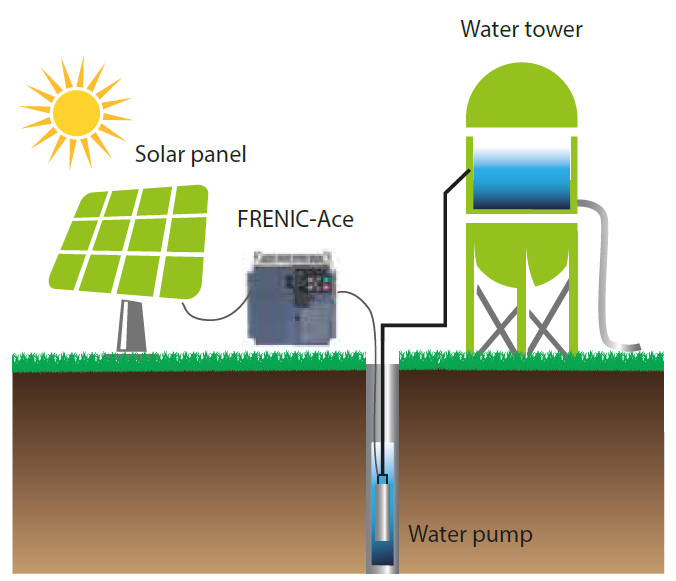

Solar pumps are significantly more energy and cost efficient than conventional pumps and are highly environmentally friendly. Benefit from the high reliability and long service life of FRENIC-Ace for Solar Pumping, the quiet and automatic functions and the easily extendable capacities. The solar pump solutions are simple to install, easy put into operation and require only a minimum of maintenance.
  • Start criteria selectable by PV panel voltage and time
  • Stop criteria selectable
  • Dry pump detection function
  • Low power function
  • Control of asynchronous motors and PM synchronous motors
  • Detection of sudden changes of conditions (especially irradiance)
  • Two sets of PID gains
  • Control of water tank level
  • Grid connection selectable for maintenance and backup system

Downloads

FRENIC-Ace Solar Catalogue
FRENIC-Ace Solar Operating Manual


Fuji Electric Frenic-Ace Solar series, voltage 200-240 V (1 phase)
Model Voltage,
V 		Capacity,
kW 		Current,
A 		V/f
mode 		Enclosure
IPXX 		Output frequency,
Hz 		Overload capacity,
% per 1 min 		Dimensions
(W x H x D), mm 		Weight,
kg 		Price
FRN0001E2E-7GA-CLI-SOL 200-240 (1ph) 0.1 0.8 + IP20 0-400 150 68х127х112 0.5 € 232,00
FRN0002E2E-7GA-CLI-SOL 200-240 (1ph) 0.2 1.6 + IP20 0-400 150 68х127х112 0.5 € 246,00
FRN0003E2E-7GA-CLI-SOL 200-240 (1ph) 0.4 3 + IP20 0-400 150 68х127х127 0.6 € 261,00
FRN0005E2E-7GA-CLI-SOL 200-240 (1ph) 0.75 5 + IP20 0-400 150 110х130х129 0.9 € 284,00
FRN0008E2E-7GA-CLI-SOL 200-240 (1ph) 1.5 8 + IP20 0-400 150 140х130х199 1.6 € 357,00
FRN0011E2E-7GA-CLI-SOL 200-240 (1ph) 2.2 11 + IP20 0-400 150 140х130х199 1.8 € 408,00

Fuji Electric Frenic-Ace Solar series, voltage 200-240 V (3 phase)
Model Voltage,
V 		Capacity,
kW 		Current,
A 		V/f
mode 		Enclosure
IPXX 		Output frequency,
Hz 		Overload capacity,
% per 1 min 		Dimensions
(W x H x D), mm 		Weight,
kg 		Price
FRN0001E2E-2GA-CLI-SOL 200-240 (3ph) 0.2 / 0.1 1.3 / 0.8 + IP20 0-400 120 / 150 68х127х112 0.5 € 341,00
FRN0002E2E-2GA-CLI-SOL 200-240 (3ph) 0.4 / 0.2 2 / 1.6 + IP20 0-400 120 / 150 68х127х112 0.5 € 352,00
FRN0004E2E-2GA-CLI-SOL 200-240 (3ph) 0.75 / 0.4 3.5 / 3 + IP20 0-400 120 / 150 68х127х127 0.6 € 355,00
FRN0006E2E-2GA-CLI-SOL 200-240 (3ph) 1.1 / 0.75 6 / 5 + IP20 0-400 120 / 150 68х127х152 0.8 € 375,00
FRN0010E2E-2GA-CLI-SOL 200-240 (3ph) 2.2 / 1.5 9.6 / 8 + IP20 0-400 120 / 150 140х130х199 1.5 € 563,00
FRN0012E2E-2GA-CLI-SOL 200-240 (3ph) 3 / 2.2 12 / 11 + IP20 0-400 120 / 150 140х130х199 1.5 € 594,00
FRN0020E2E-2GA-CLI-SOL 200-240 (3ph) 5.5 / 3.7 19.6 / 17.5 + IP20 0-400 120 / 150 140х130х199 1.8 € 620,00
FRN0030E2S-2GB-CLI-SOL 200-240 (3ph) 7.5 / 5.5 30 / 25 + IP20 0-400 120 / 150 180x220x158 5 € 721,00
FRN0040E2S-2GB-CLI-SOL 200-240 (3ph) 11 / 7.5 40 / 33 + IP20 0-400 120 / 150 180x220x158 5 € 797,00
FRN0056E2S-2GB-CLI-SOL 200-240 (3ph) 15 / 11 56 / 47 + IP20 0-400 120 / 150 220x260x190 8 € 1 111,00
FRN0069E2S-2GB-CLI-SOL 200-240 (3ph) 18.5 / 15 69 / 60 + IP20 0-400 120 / 150 220x260x190 9 € 1 422,00
FRN0088E2S-2GB-CLI-SOL 200-240 (3ph) 22 / 18.5 88 / 76 + IP20 0-400 120 / 150 250x400x195 9.5 € 1 947,00
FRN0115E2S-2GB-CLI-SOL 200-240 (3ph) 30 / 22 115 / 90 + IP20 0-400 120 / 150 250x400x195 10 € 2 593,00

Fuji Electric Frenic-Ace Solar series, voltage 380-480 V (3 phase)
Model Voltage,
V 		Capacity,
kW 		Current,
A 		V/f
mode 		Enclosure
IPXX 		Output frequency,
Hz 		Overload capacity,
% per 1 min 		Dimensions
(W x H x D), mm 		Weight,
kg 		Price
FRN0002E2E-4GA-CLI-SOL 380-480 (3ph) 0.75 / 0.4 1.8 / 1.5 + IP20 0-400 120 / 150 110x130x162 1.2 € 345,00
FRN0004E2E-4GA-CLI-SOL 380-480 (3ph) 1.1 / 0.75 3.4 / 2.5 + IP20 0-400 120 / 150 110x130x186 1.5 € 387,00
FRN0006E2E-4GA-CLI-SOL 380-480 (3ph) 2.2 / 1.5 5 / 4.2 + IP20 0-400 120 / 150 140x130x199 1.5 € 434,00
FRN0007E2E-4GA-CLI-SOL 380-480 (3ph) 3 / 2.2 6.3 / 5.5 + IP20 0-400 120 / 150 140x130x199 1.6 € 496,00
FRN0012E2E-4GA-CLI-SOL 380-480 (3ph) 5.5 / 3.7 11.1 / 9 + IP20 0-400 120 / 150 140x130x199 1.9 € 589,00
FRN0022E2E-4E-CLI-SOL 380-480 (3ph) 7.5 / 5.5 17.5 / 13 + IP20 0-400 120 / 150 181.5x285x208 5 € 699,00
FRN0029E2E-4E-CLI-SOL 380-480 (3ph) 11 / 7.5 23 / 18 + IP20 0-400 120 / 150 181.5x285x208 5 € 818,00
FRN0037E2E-4E-CLI-SOL 380-480 (3ph) 15 / 11 31 / 24 + IP20 0-400 120 / 150 220x332x245 5 € 953,00
FRN0044E2E-4E-CLI-SOL 380-480 (3ph) 18.5 / 15 38 / 30 + IP20 0-400 120 / 150 220x332x245 9 € 1 208,00
FRN0059E2E-4E-CLI-SOL 380-480 (3ph) 22 / 18.5 45 / 39 + IP20 0-400 120 / 150 250x400x195 9.5 € 1 574,00
FRN0072E2E-4E-CLI-SOL 380-480 (3ph) 30 / 22 60 / 45 + IP20 0-400 120 / 150 250x400x195 10 € 1 966,00
FRN0085E2E-4E-CLI-SOL 380-480 (3ph) 37 / 30 75 / 60 + IP00 0-400 120 / 150 326.2x550x261 25 € 2 517,00
FRN0105E2E-4E-CLI-SOL 380-480 (3ph) 45 / 37 91 / 75 + IP00 0-400 120 / 150 326.2x550x261 26 € 3 186,00
FRN0139E2E-4E-CLI-SOL 380-480 (3ph) 55 / 45 112 / 91 + IP00 0-400 120 / 150 361.1x615x276 30 € 3 832,00
FRN0168E2E-4E-CLI-SOL 380-480 (3ph) 75 / 55 150 / 112 + IP00 0-400 120 / 150 361.1x675x276 33 € 4 240,00
FRN0203E2E-4E-CLI-SOL 380-480 (3ph) 90 / 75 176 / 150 + IP00 0-400 120 / 150 361.1x740x276 40 € 5 139,00
FRN0240E2E-4E-CLI-SOL 380-480 (3ph) 110 / 90 210 / 176 + IP00 0-400 120 / 150 536.4x740x321 62 € 6 389,00
FRN0290E2E-4E-CLI-SOL 380-480 (3ph) 132 / 110 253 / 210 + IP00 0-400 120 / 150 536.4x740x321 63 € 6 846,00
FRN0361E2E-4E-CLI-SOL 380-480 (3ph) 160 / 132 304 / 253 + IP00 0-400 120 / 150 536.4x1000x321 95 € 8 207,00
FRN0415E2E-4E-CLI-SOL 380-480 (3ph) 200 / 160 377 / 304 + IP00 0-400 120 / 150 536.4x1000x321 96 € 9 893,00
FRN0520E2E-4E-CLI-SOL 380-480 (3ph) 220 / 200 415 / 377 + IP00 0-400 120 / 150 686.4x1000x321 130 € 11 230,00
FRN0590E2E-4E-CLI-SOL 380-480 (3ph) 280 / 220 520 / 415 + IP00 0-400 120 / 150 686.4x1000x321 130 € 12 571,00
Technical Information and Features

Fuji Electric frequency inverter Frenic-Ace SOLAR specific functions

-True and outstanding MPPT function (Maximum Power Point Tracking)
- Start criteria by system conditions and time
- Stop criteria selectable by frequency or power
- Dry pump detection function
- Low power function
- It allows to control asynchronous motors and permanent magnets synchronous motors
- Detection of sudden changes of conditions (especially irradiance)
- Two sets of PID gains, for a fast and smooth operation
- Water tank level control
- Grid connection selectable for maintenance and backup system

Fuji Electric frequency inverter Frenic-Ace SOLAR specific functions

Fuji Electric frequency inverter Frenic-Ace SOLAR generic specifications

400 V Motor 200 V Motor
Maximum input voltage (Voc) 800 VDC 360 VDC
Recommended voltage DC (VMPP) 550 - 620 VDC 280 - 330 VDC
Nominal input voltage AC 3ph 380 - 480 V, 50/60 Hz 3ph 200 - 240 V, 50/60 Hz
Nominal output voltage AC 3ph 400 V 3ph 200 V
Output frequency 0 - 400 Hz
Efficiency (inverter) 97 - 98%
Ambient temperature range -10 to 50° C
Cooling Natural / by means of internal fan
Recommended input power 1.2 times the pump capacity (minimum)
Warranty 3 years
EMC filter*1 / Motor output Built-in / optional (from distances over 50 m) Built-in / optional (from distances over 50 m)
*1 For more information regarding EMC filters (AC/DC) please contact Fuji Electric.
