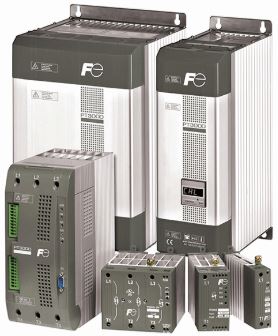

Fuji Electric, Thyristor Power Controller

Fuji Electric offers you a complete range of Thyristor Power Controller Inductive Loads, including Resistance on Secondary o Transformer.


Features:
- Resistive, inductive & transformer loads
- Single-phase or three-phase
- Current range – 850A, 1000A, 1400A, 1500A, 1850A, 2000A, 2400A, 2700A
- Max. voltage 480V, 600V or 690V AC as option
- Inputs: SSR, 0:10V, 4:20mA, 10KPot and Communication Std.
- Firing mode: Delay Triggering + Burst Firing (DT), Phase Angle (PA) or Soft Start + Phase Angle (S+PA); Current Limit is available with Phase Angle.

Applications:
Electric heating, heating elements, industrial furnaces, tubular elements, flanged heaters, ceramic heaters, fluid circulation heaters, air heaters, Ducts, heating elements for cartridges and strips.

- Wide product range from 10A to 2.600A single, two and three phase units.
- Save money because there are small steps in nominal current rating (27 sizes from 10A to 2.600A).
- Innovative product range using digital technology also on small units (15A).
- RS485 communication with modbus protocol std on all families with exclusion of PT3000S.
- Configuration semplicity via Frontal KeyPad, external KeyPad or portable PC.
- Possibility to download the suggested software configuration clicking on your application.
- Universal Thyristor unit where is possible to configure all inputs types and firing modes.
- Very efficient Help Desk to solve application problems.
- Remote Service via Internet.

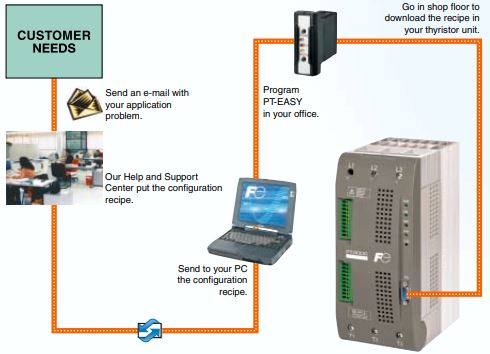

Fuji Electric remote service.

If you have a doubt about the confi guration of your thyristor unit, contact our Help and Support center that can help you in writing a correct confi guration for your application.
