Process controllers, PXH series

- Receipe function
- Input linearize function
- Totalize function
- Math functions.

Features.
- Indication accuracy: 0.1%
- High speed control: 50 ms input sampling
- Motorized valve control (position feed back/servo control)
- Dual PID controller (Heat/cool control)
- Accepts various input: thermocouple, RTD, voltage, or current
- Powerful
- Math functions
- Integrated totalize function
- RS-485 Modbus communication function and transmitter power supply

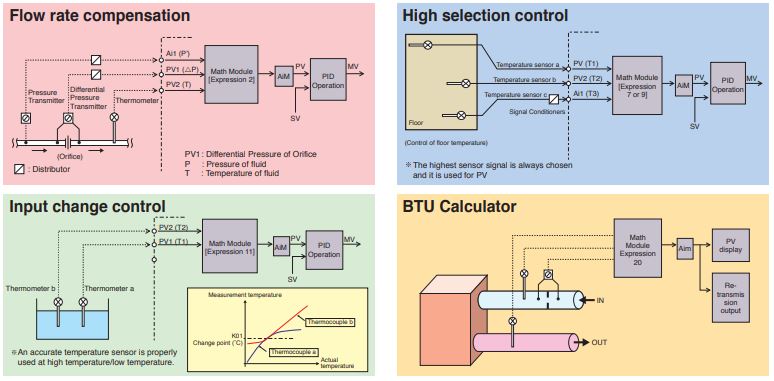

Fuji Electric PXH applications example.

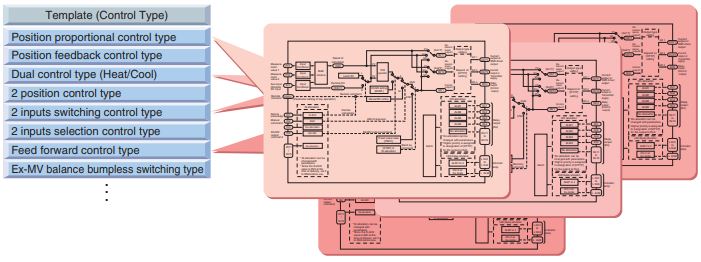

Fuji Electric PXH series Application Template.

Pre-installed programming templates allow easy configuration for various applications. Just by selecting appropriate "Application Template", input/output setting and internal calculation blocks can be automatically configured.


Application templates pre-installed.
- PID
- PID + SV select
- PID + Mathematical module
- PID + SV select + Mathematical module
- PID + input select + Mathematical module
- Heat/cool control
- Heat/cool control + SV select
- Totalization
- Position feedback control
- Servo control
